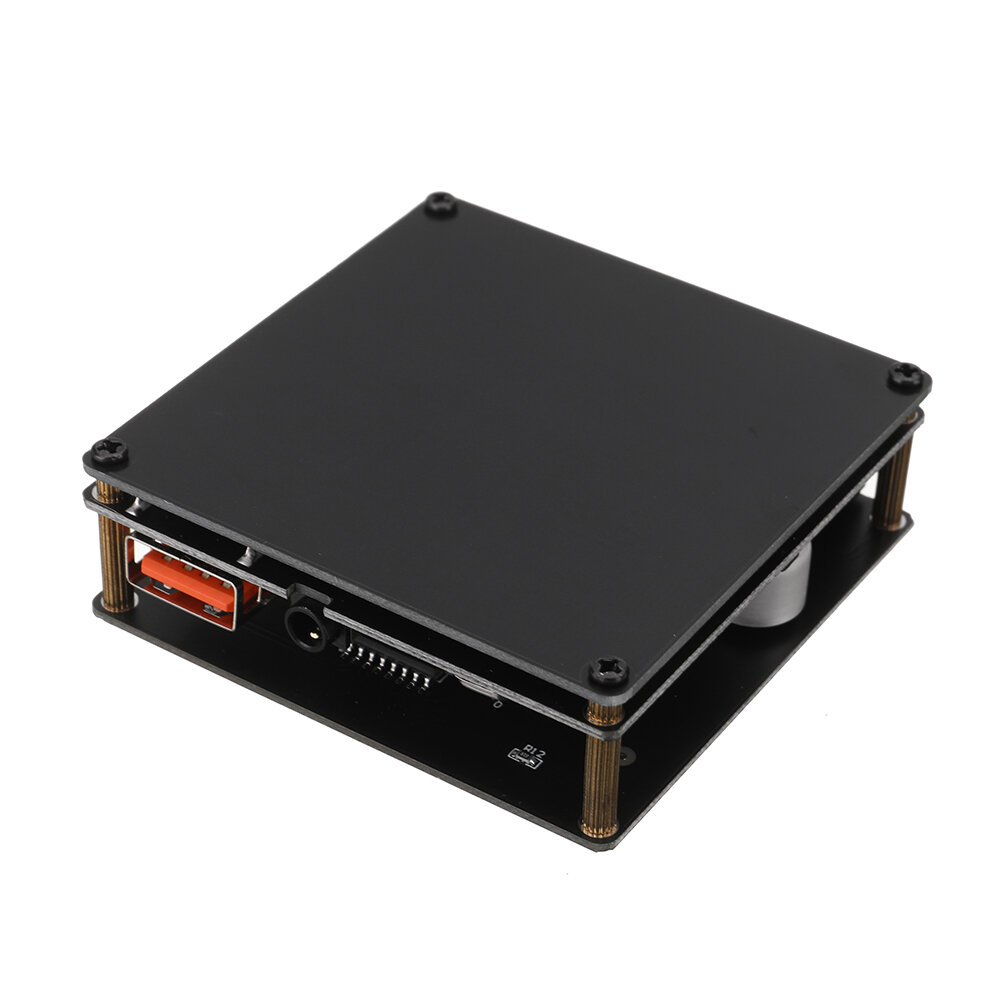

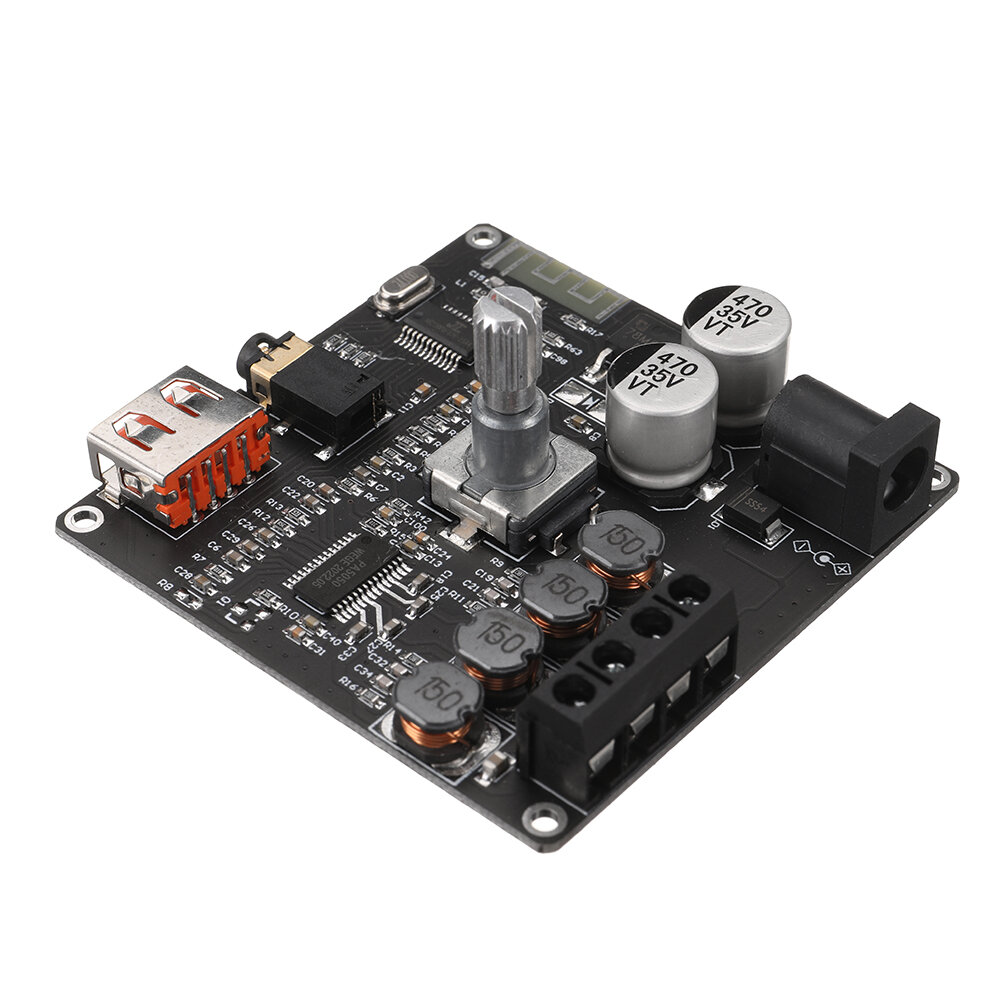

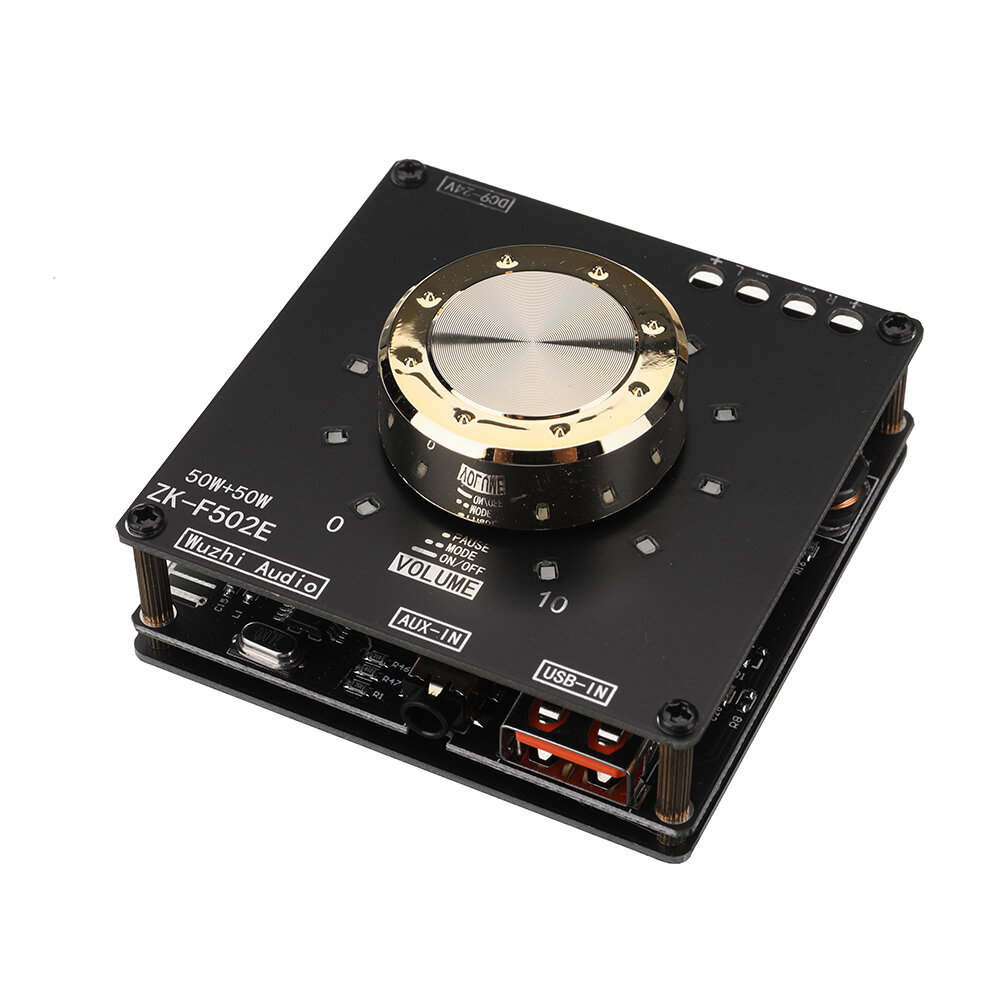

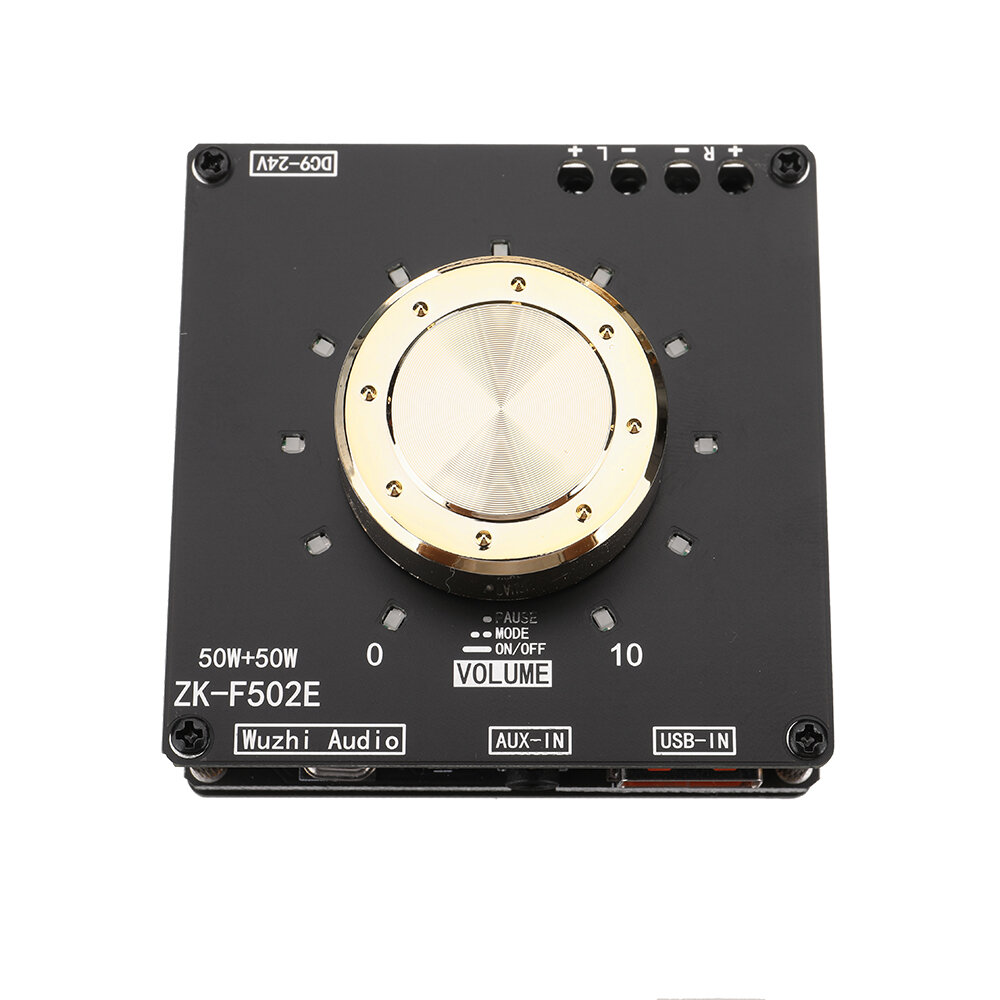

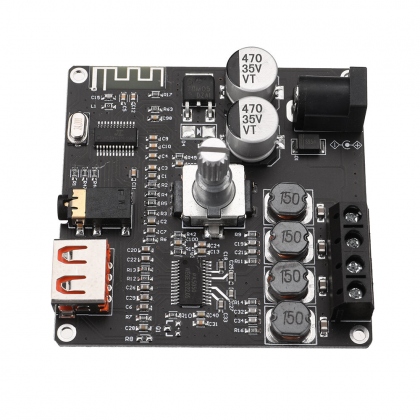

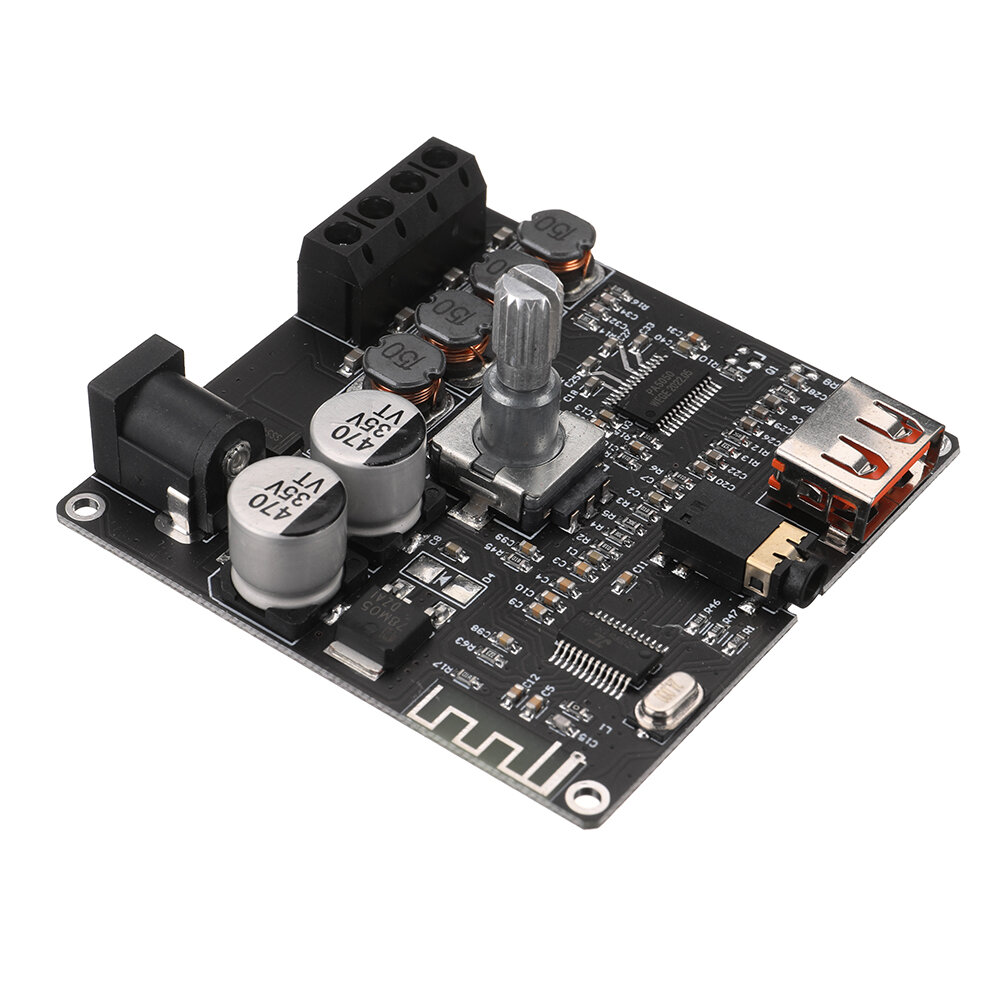

ZK-F502E Cool Volume Indicator Bluetooth Audio Power Amplifier Board Module LC Filter Stereo 50W+50W COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

>>>APP: Click here to open<<<

Features:
ZK-F502E Digital power amplifier board, LC filter circuit with high fidelity and two-channel stereo sound quality, pure and clear sound.50Wx2 Stereo bluetooth-compatible power amplifier, supports bluetooth-compatible, aux, u-disk and usb sound card input.Gold knob cap, elegant and elegant, with cool volume level indicator, 8-level brightness adjustment, 360-degree stepless tuning.16x13mm Heat sink, with over temperature, over current, short circuit, anti-static protection, and heat dissipation area is larger and more sufficient, safe to use.Compatible with Wuzhi APP, you can modify the Bluetooth-compatible name, password settings, adjust the volume of the prompt, sound selection, customized sound effects, etc.
Specifications:
Model: ZK-F502EItem Name: 2.0 Channel 50Wx2 Stereo Bluetooth-compatible Power AmplifierAmplifier Chip: China Produced ChipSupport Wuzhi APPBluetooth-compatible Version: BLE5.1Input: Bluetooth-compatible+AUX+U-disk+USB Sound CardChannel: 2-channelOutput Power: Left Channel 50W+Right Channel 50WWorking Voltage: 9-24V/≥3A (AC power not available)Compatible Loud Speaker: 10-50W, 4-8ΩVolumn Adjust:Multi-function knob, 360-degree stepless tuning, with volume level indicationSingle click: play/pause; double click: mode switch (Bluetooth-compatible/U disk/AUX)Press and hold for 1 second: turn on/off; rotate: adjust the volumeProtection Mechanism: over temperature, over current, short circuit, anti-static protectionMaterial: Metal, Printed Circuit BoardSize: Approx. 60x60x30 mm/2.36x2.36x1.18 inch
Package includes:
1 X ZK-F502E Power Amplifier
