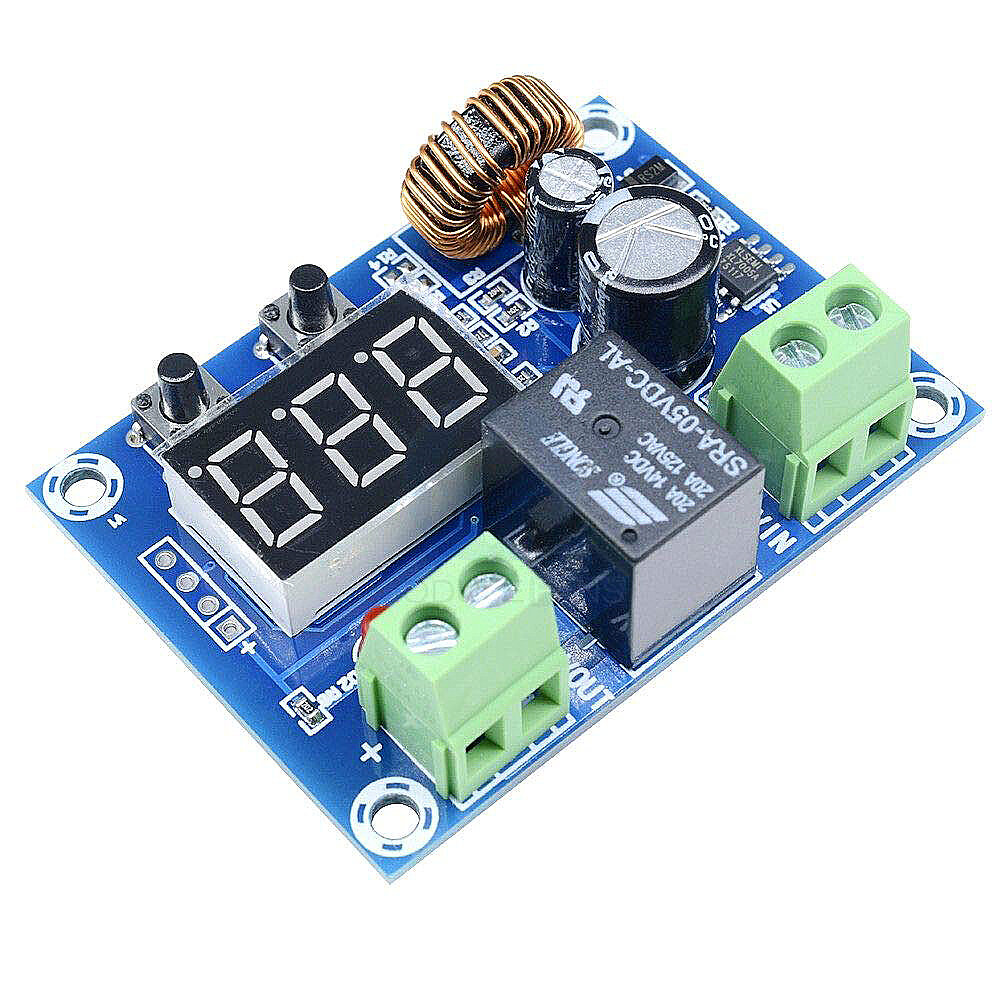

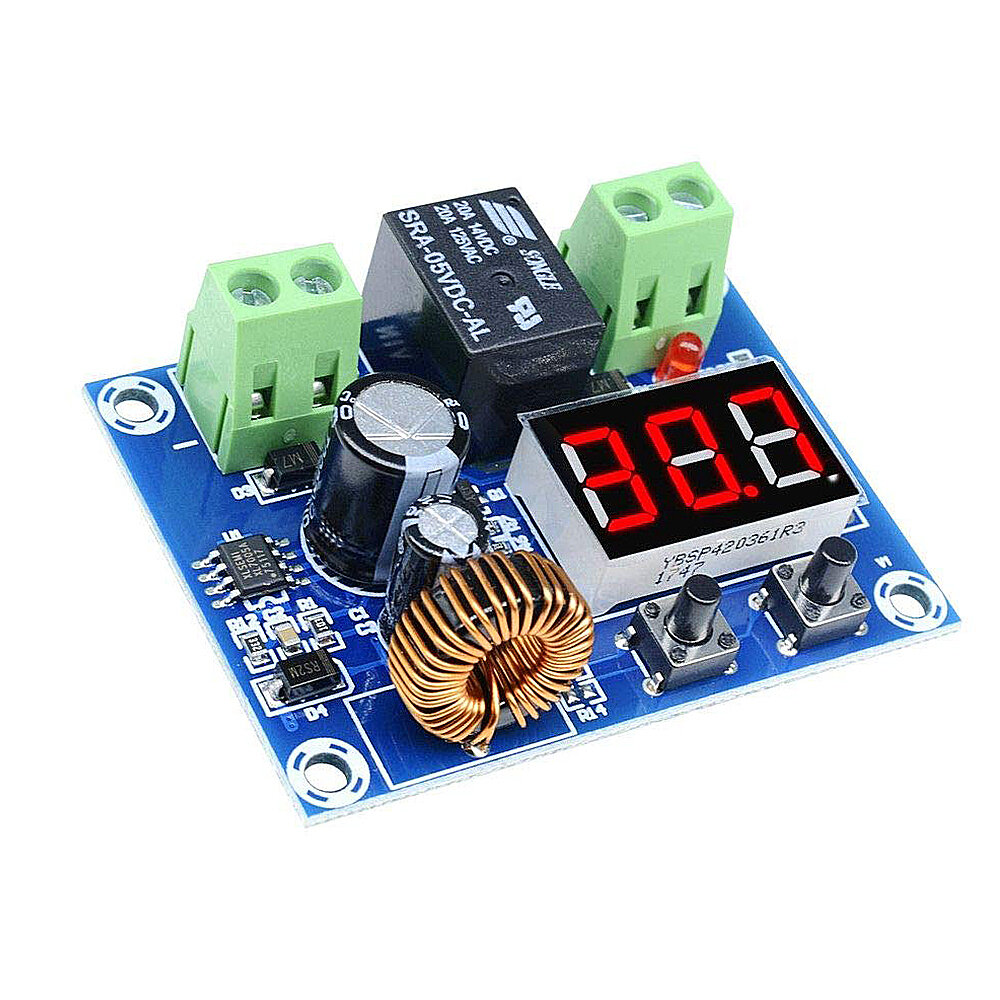

XH-M609 DC Voltage Protection Module Lithium Battery Undervoltage Deficit Low Power Disconnect Protection Module Board DC Output 6-60V COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Product name: Battery overdischarge protection moduleModel: XH-M609Power supply voltage: DC 6-60VOutput voltage: DC 6-60VControl precision: 0.1vPower consumption: <1.5WScope of application: Various accumulators/lithium batteriesNet weight: 28gSize: 57×42×19mm

Features:
1.

Settings:
Set below 12.5V to stop, above 14V to start:
Set below 10V to stop, above 15.5V to start:Set the protection value: press "+" once to display the protection value, double-click "+", the decimal point flashes, at this time, press "+, -" to change the value to 10.0. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode. Set the hysteresis value: press "-" once to display the hysteresis value, double-click "-", the decimal point flashes, at this time, press "+, -" to change the value to 5.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.


Package Include:
Voltage Protection Module
