Description:

WANPTEK Lab Bench Power Supply 300W Laboratory Switching Power Supply Unit 30V 10A Adjustable Digital Source 60V 5A Voltage Stabilizer Black EU Plug

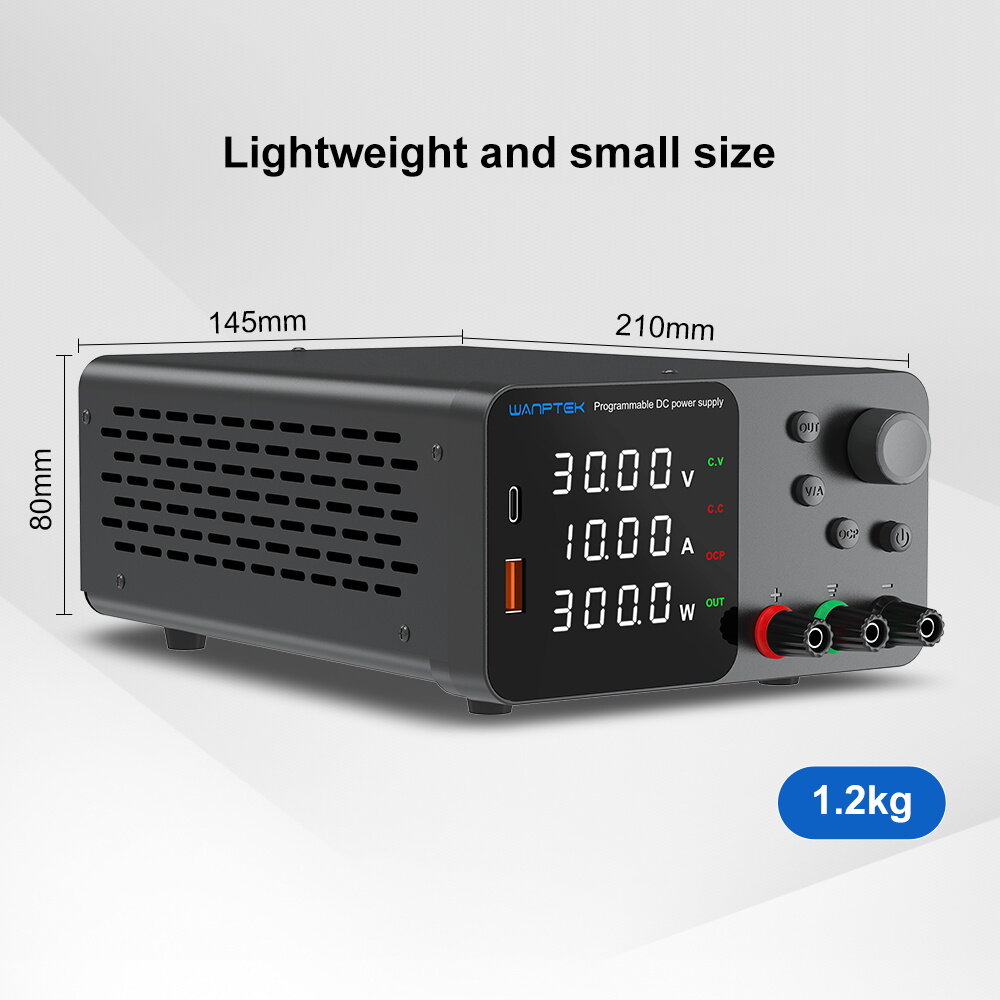

1.Small size, light weight and high power density.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation. 4.Adjustable Output Voltage & Current: output voltage and output current can be continuously

5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment

11. AC 110v and 220V can work , rest assured to choose.

12. Encoder adjustment DC power supply

13. Voltage and current one-key conversion regulation

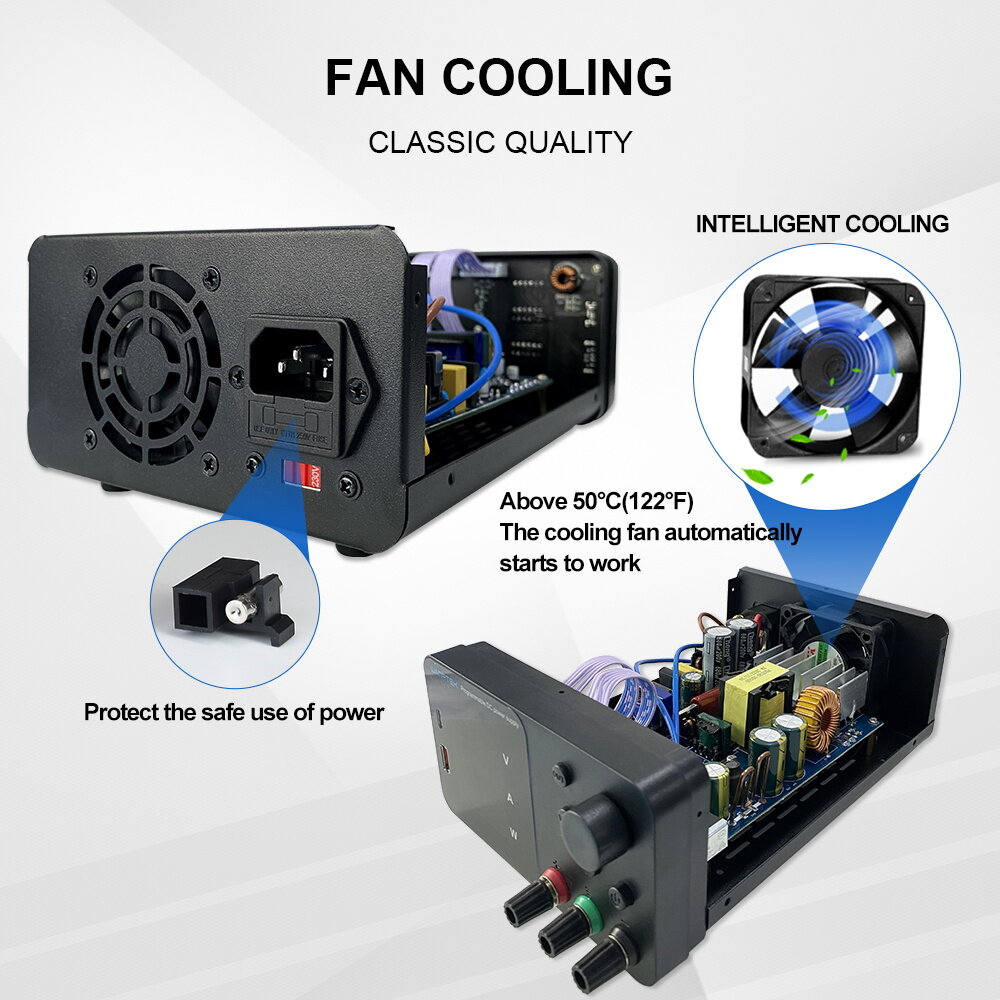

14. Built-in cooling fan, Smart turn on when temperature over 50℃

FCC & CE certified product

Specification:

- Output Power: 150W/300W/360W

- Output voltage: 0~30V/60V/120V

- Output current: 0~3A/5A/10A

- Working environment:

input voltage:AC 230V/115V±10%;50Hz/60Hz

Working temperature:0℃～40℃;relative humidity:<80%RH

Storage temperature:-10℃～70℃;relative humidity:<70%RH

- Constant voltage CV:

Voltage stability:0.1%±3mV

Load stability: 0.2%±3mV

Ripple voltage:≤0.5% Vp-p

0 to rated voltage continuously adjustable

- Constant current CC:

Current stability:0.1%±3mA

Load stability: 0.2%±3mA

Ripple current:≤0.5% Vp-p

Recovery time:≤500μS

Temperature coefficient:≤100ppm/℃

0 to rated current continuously adjustable

Display:

LED digit display

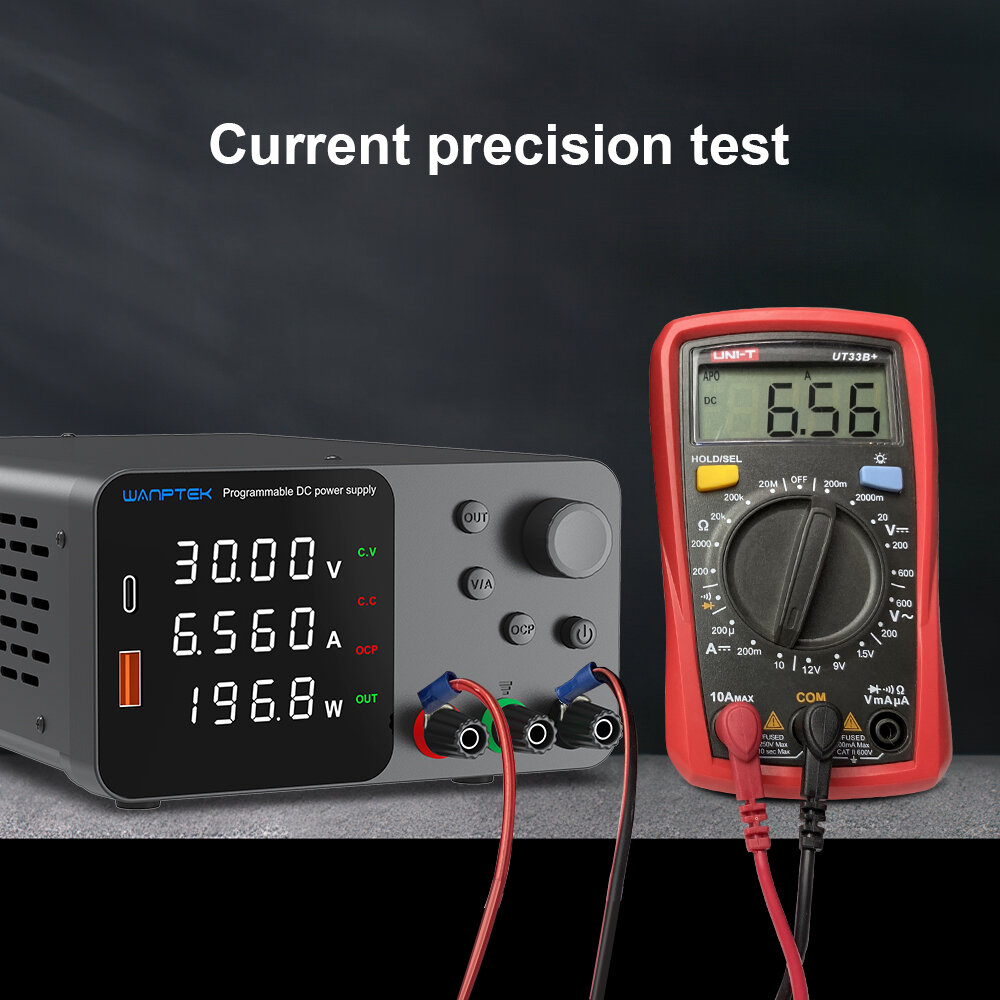

Display accuracy:0.5%±digits

Display resolution: voltage 0.01V, current 0.001A

Four-digit display 0.01 V/0.001 A

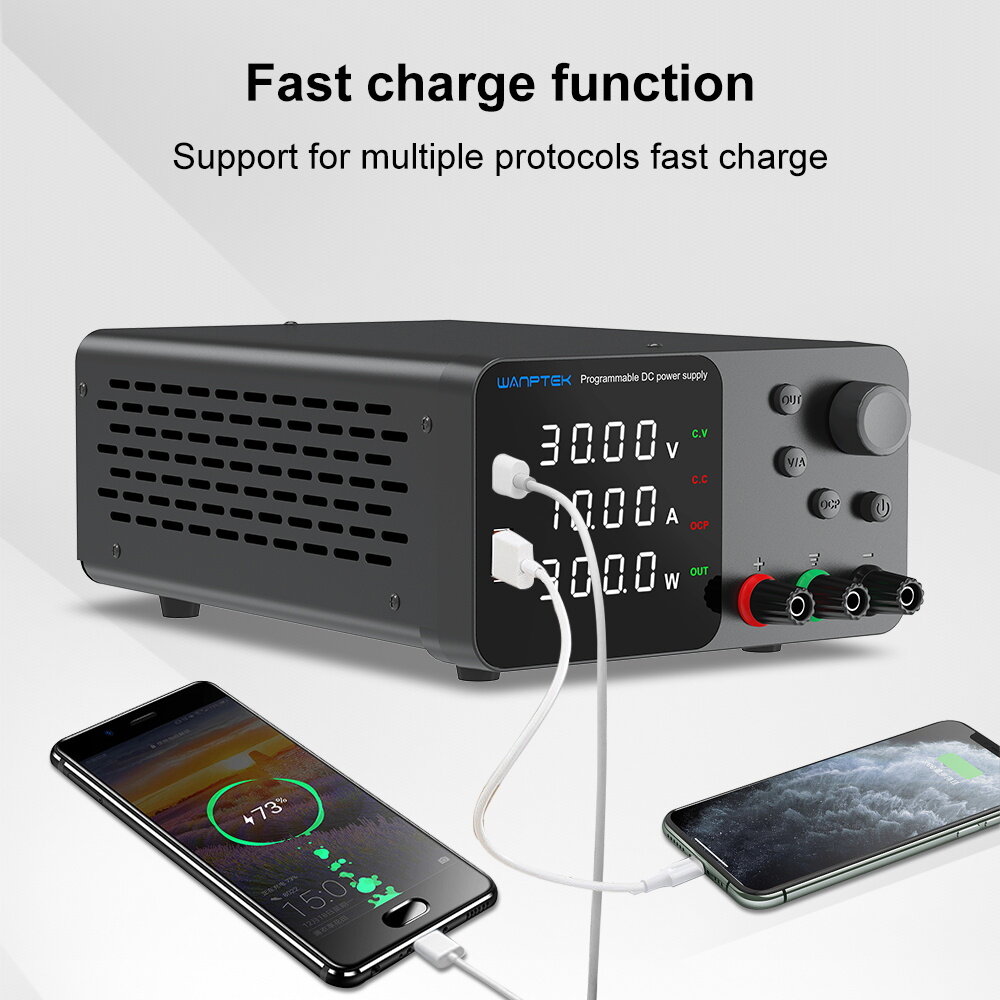

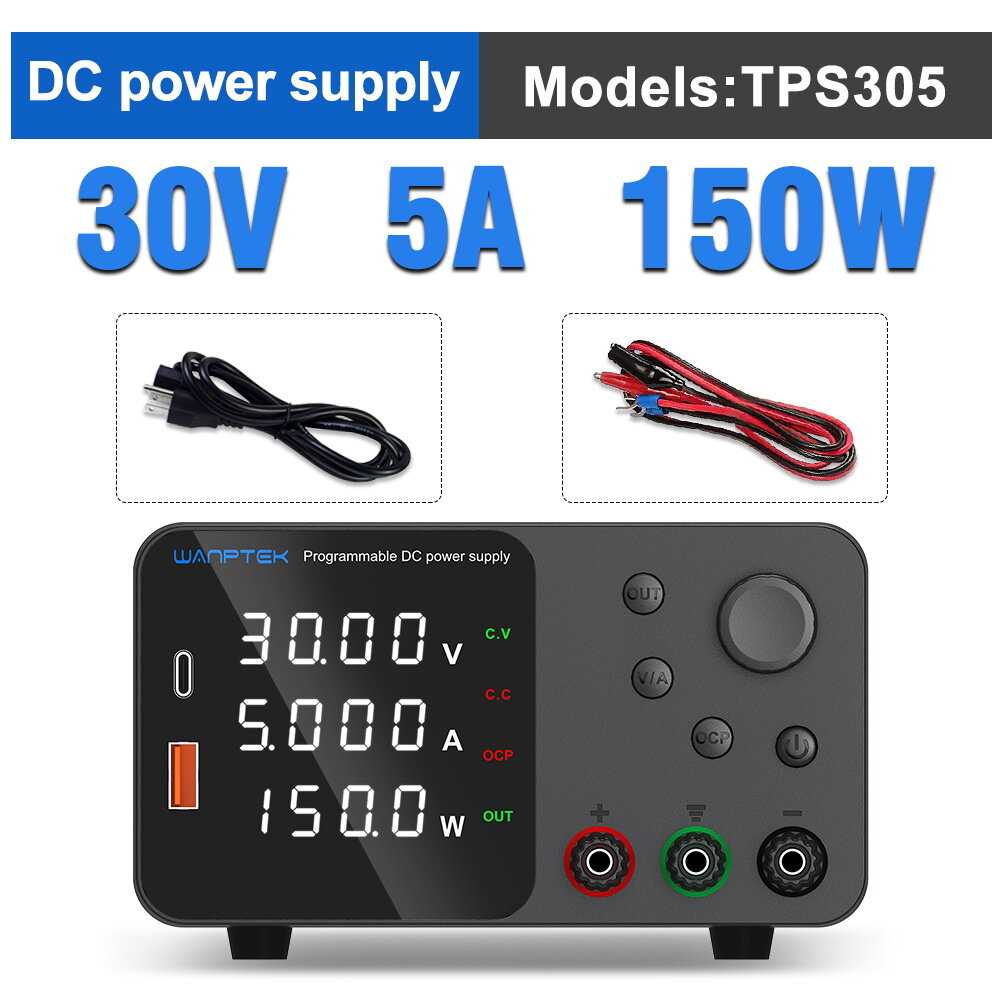

1.USB-A/USB TYPE-C TPS305 Encoder adjustment DC power supply

2.USB-A/USB TYPE-C TPS3010 Encoder adjustment DC power supply

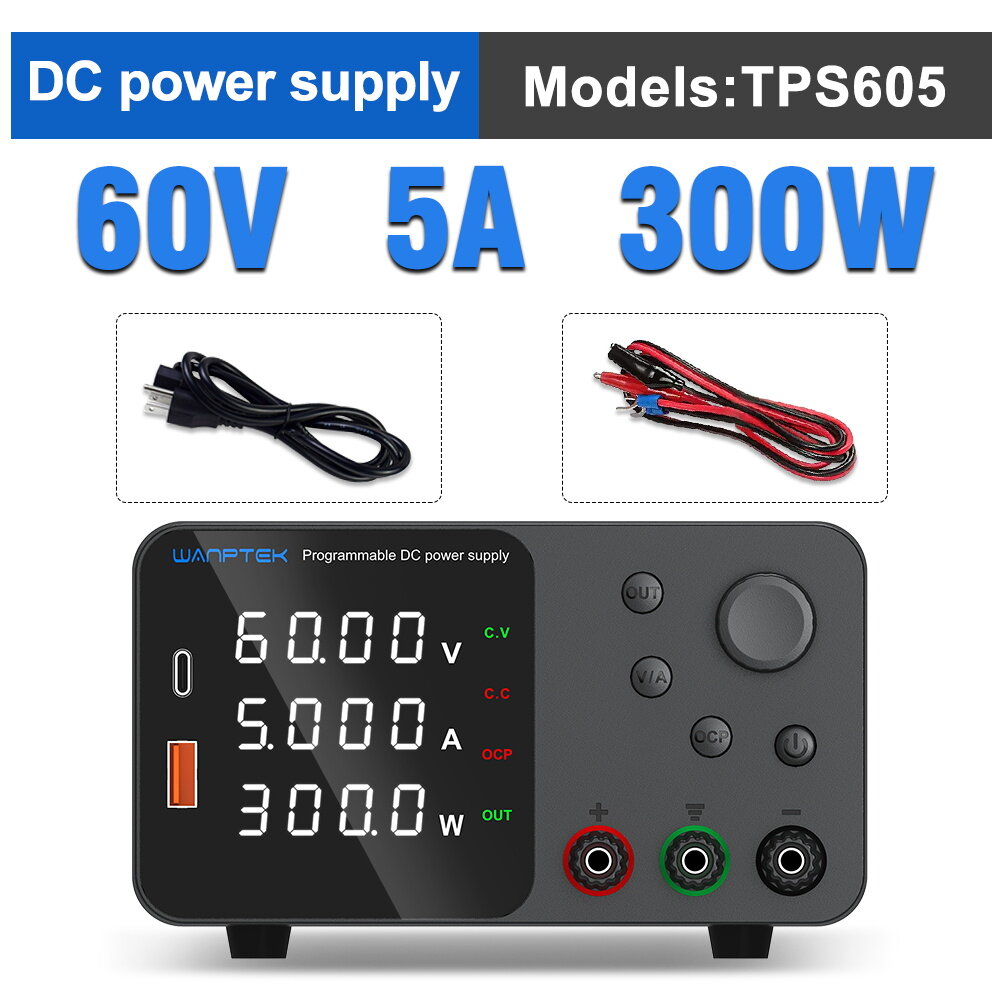

3.USB-A/USB TYPE-C TPS605 Encoder adjustment DC power supply

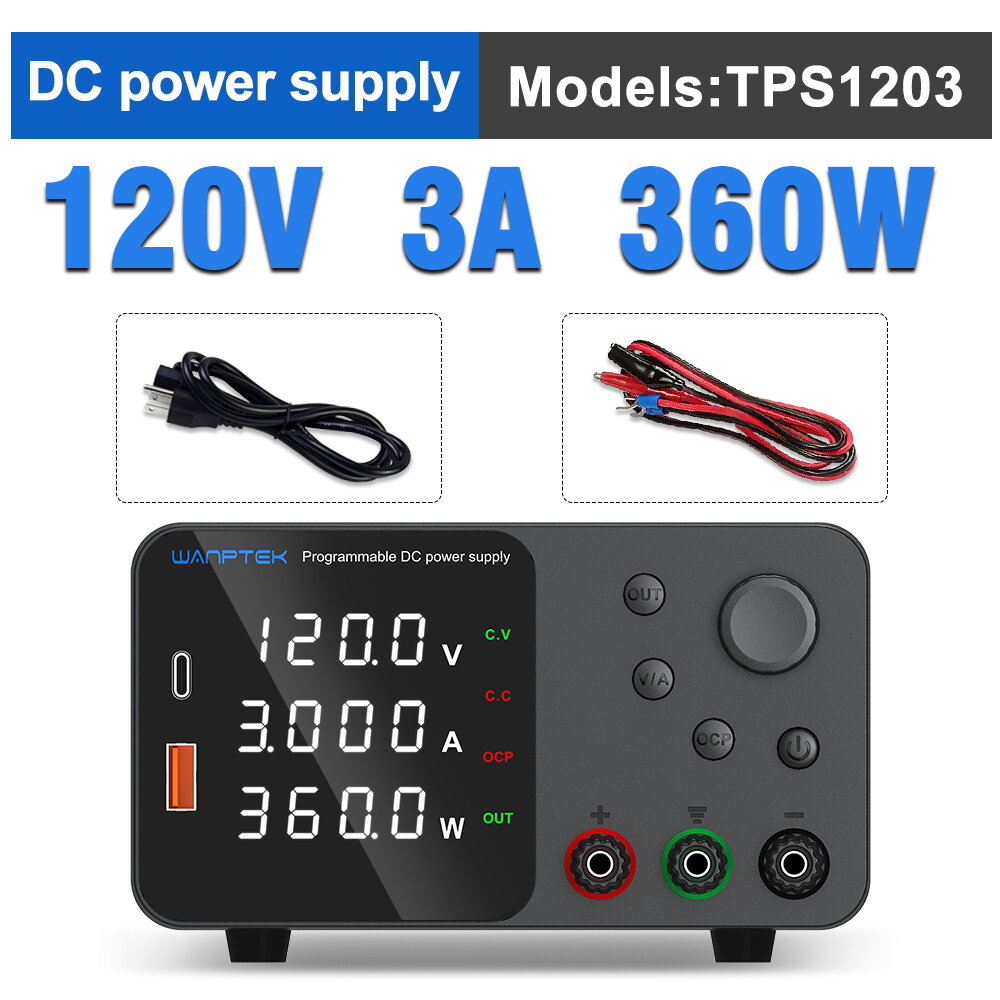

4.USB-A/USB TYPE-C TPS1203 Encoder adjustment DC power supply

Package Included:
