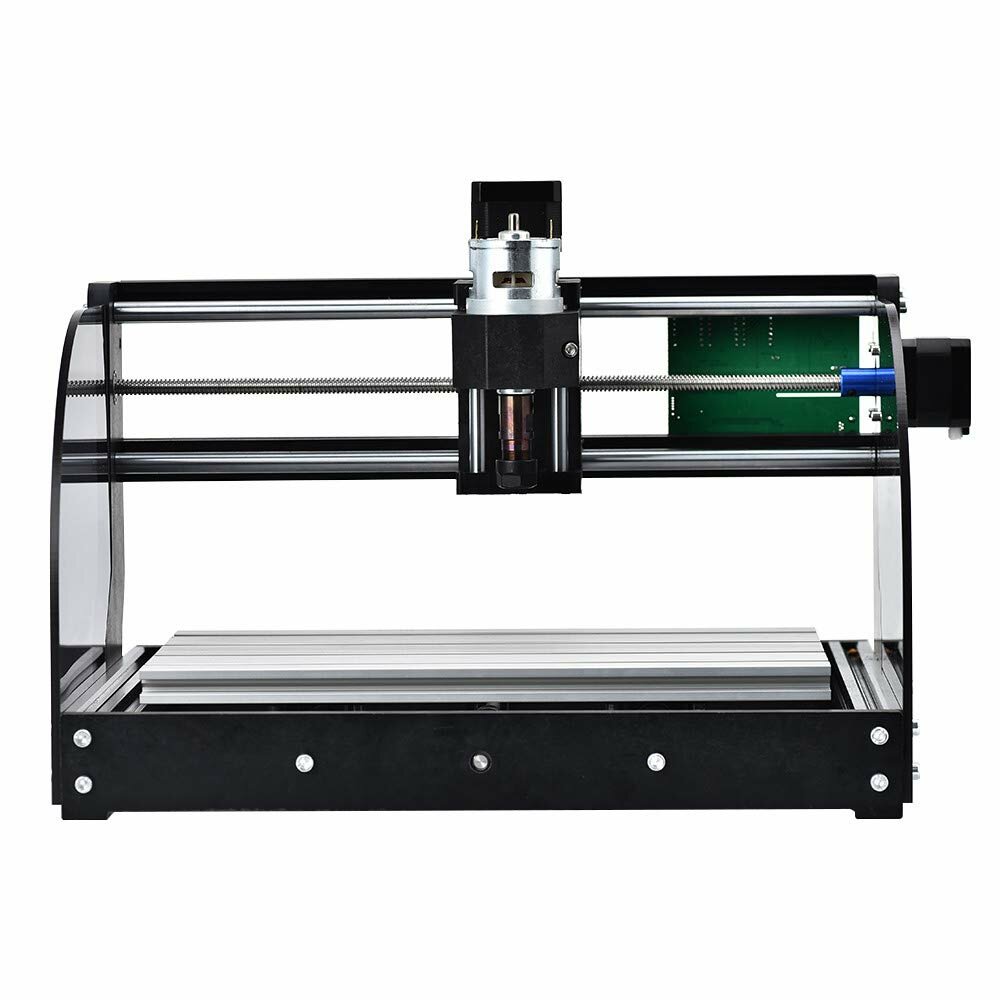

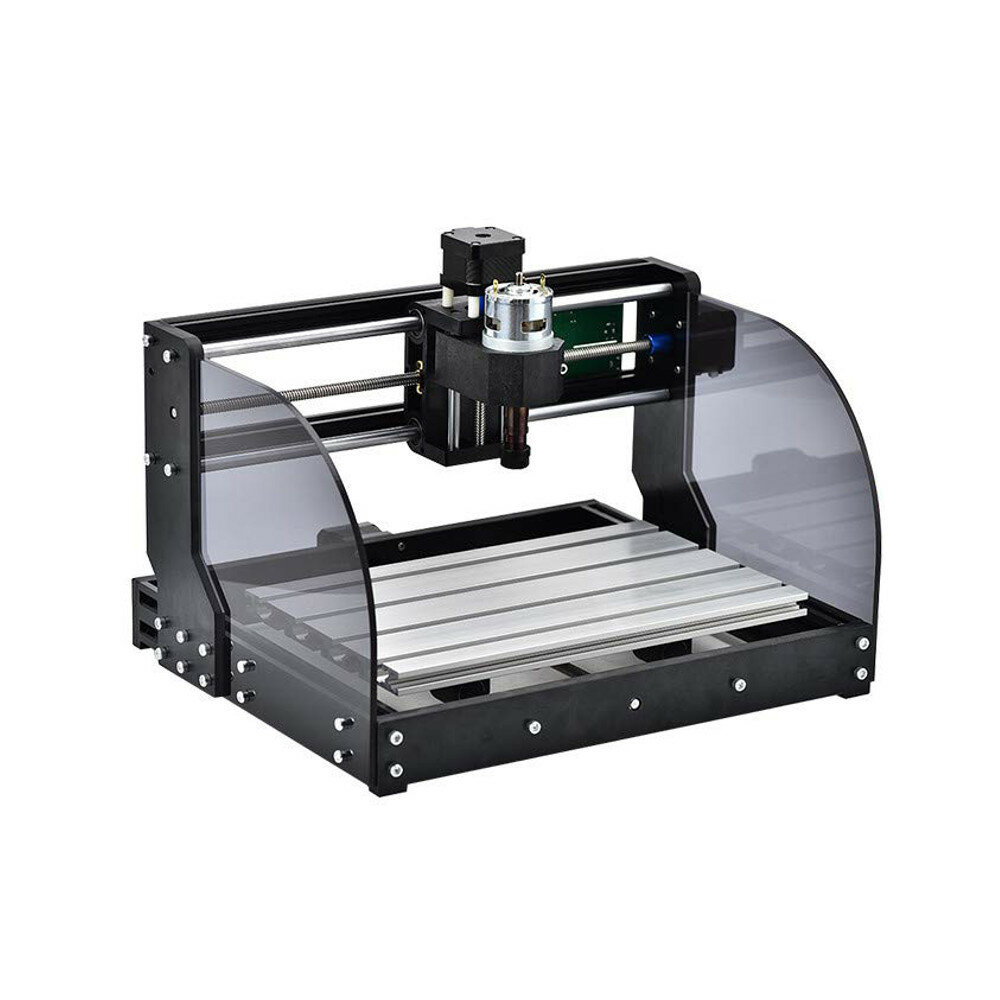

Upgraded 3018 Pro CNC Router Offline Engraver DIY 3Axis GRBL Engraving Machine Woodworking Router COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Effective Engraving Area	300 x 180 x 45mm(11.8 x 7.1 x 1.8”)
	Metal
Step Motor	1.3 A, 12V, 0.25 Nm torque (2.2 in-lb)
Rated power	60W
Maximum power	120W
Softwear	GRBL control systems/ Lasergrbl control systems

2.GRBL Control: Latest control system different from other old conroller system which were no longer upgraded. No need for extra accessories. Just turn your computer into a CNC machine.

4.Compatible with different laser modules of 2500mW, 5500mW, 7000mW, 10000mW(lasers not included), More than just a engraving machine but a laser engraver as well.
Now we recommend the laser module (2500mW Blue Laser Module) produced by the originals manufacturer: ID:
5.Wide Application: With manuals and software suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other materials, a great tool for CNC lover.
6.
Drill Bits: Tip 0.2 mm, 20 degrees, Diameter 3.175 mm

The software version should be version 0.9, version 1.1 is unstable, which will cause the engraving machine to run unsmoothly!

1 x GRBL 3-Axis Control Board

1 x USB Cable

1 x SD Card

(Spindle Motor, Control Board, Z A xis Set, Stepper Motors, and other Assemble Parts are all included.)
Controller Specification:

Firmware: GRBL 08, 09, 1.1 and so on

Applicable CNC Router: 3 Axis CNC router 1610; 2418; 3018
Description:
This offline controller w/ controller board is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and Bluetooth supportive.
Features:
1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.

For example

2418, please set the XY stroke in the command, length 24cm, width 18cm.





2: Shaft: Connect motor shaft, keep the same with power supply voltage, 5A electricity, if the motor power of the spindle is high, can connect external relays such as the switch. G code M3 open, M5 closed, with version 0.9 of the firmware can adjust PWM, achieve the speed of the axis governing and tunable laser

4: Y-axis motor signal output, A4988 max 1.5A electric current



2: Y-axis minimum limit Y-

4: Reset button: press the button, system will restart, can be used for urgent stoping of machine
