tinySA ULTRA 100k-5.3GHz Handheld Spectrum Analyzer with 4 inch TFT Display High Frequency Output Signal COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

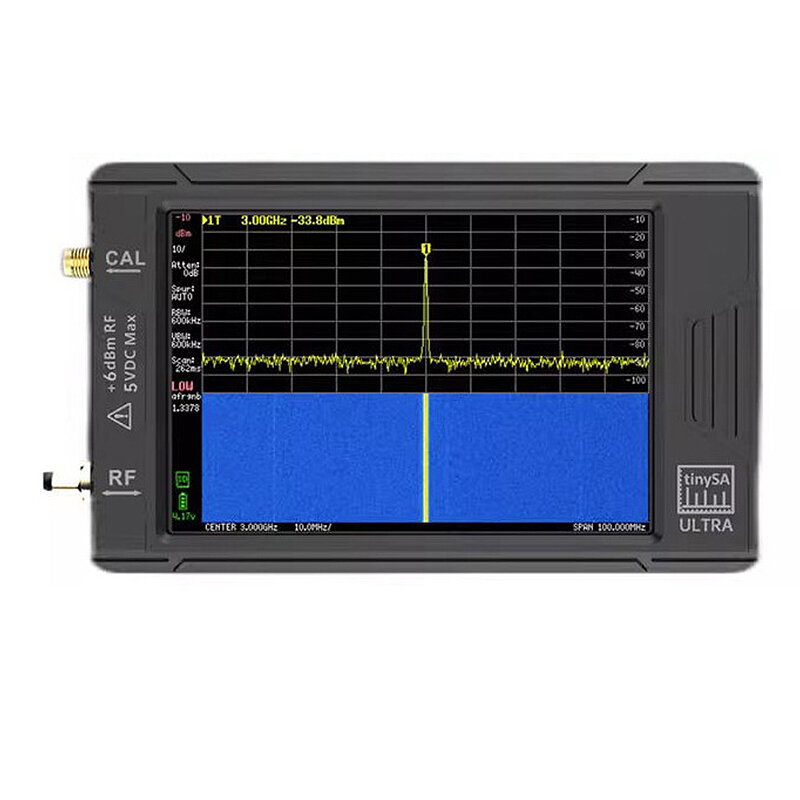

Frequency Range: 100 kHz to 5.3 GHz (6 GHz in Ultra mode)

Input Frequency Range: 800 MHz to 6 GHz in Ultra mode

Max Output Frequency: Sinus up to 800 MHz, for Square wave up to 4.4 GHz

Ultra Mode: Level calibrated up to 5.3 GHz

Displayed Points per Scan: Max 450

Shortest Zero Span Time: 17 ms

DANL Degrading in Ultra Mode: 10 dB above 2.5 GHz, 25 dB above 5.3 GHz

Phase Noise at 100 kHz Offsett: -110 dBc/Hz

IP3 (Third Order Intercept) without LNA: +18 dBm (at least 2 MHz apart) / 0 dBm (500 Hz apart)

Frequency Stability: <1 ppm (-10°C ~ +55°C)

Audio Out: 3.5mm Headphone Plug

Maximum Current Consumption: 330 mA

Battery: Li-polymer 3.7V 3000 mAh

Communication Interface: USB-CDC (Type-C), UART-TTL (2.54mm Connector)





2. Ultra Mode Calibration: The instrument's Ultra mode ensures accurate level calibration up to 5.3 GHz, making it suitable for high-frequency applications that demand precision.

4. Portable and User-friendly: The handheld design and 3.95" TFT display provide portability and ease of use, enabling field measurements and on-the-go analysis.

Package Include:

1 x USB Type-C data cable

1 x SMA-SMA barrel connector

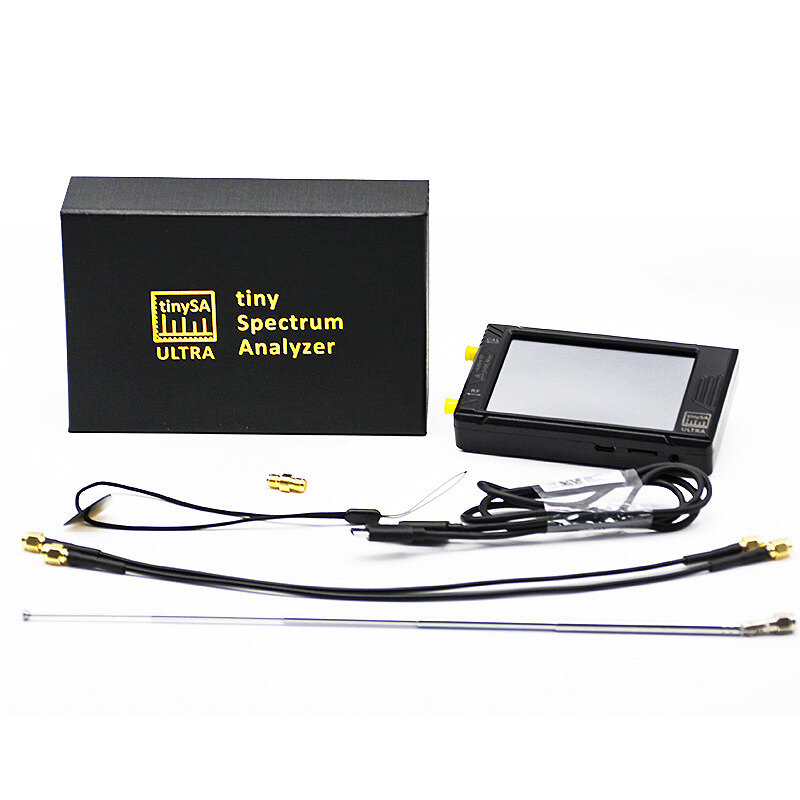

1 x Lanyard and touch plectrum
