Square Waterproof Black Tracking Device Base Station Positioning Location COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



- Programmed standard firmware.

- Powered by CR2477 coin battery.

- The max 150 meters advertising distance.

- Round shape, Black & waterproof casing.

- Ultra-low power consumption chipset TICC2640 with ARM core.

- It widely used for the access control, trade shows, events and so on.

Specification:

Material: ABS

Color: Black

Battery: Built-in 1pcs CR2477

Operation voltage: DC 2.7-3.3V

Transmission ranges: 150 meters(On board / PCB Antenna)

Antenna: 50ohm

Transmission Power Levels

- Default setting: 0dBm

- Transmission power level: -23dBm, +5dBm

- The level must be programmed at the factory.

Long Ranges

- The max range 150 meters in the open space.

- The ranges depends on the physical environment.

Security

- 6 characters password.

Package Included:

1 x Base Station

1 x English Manual

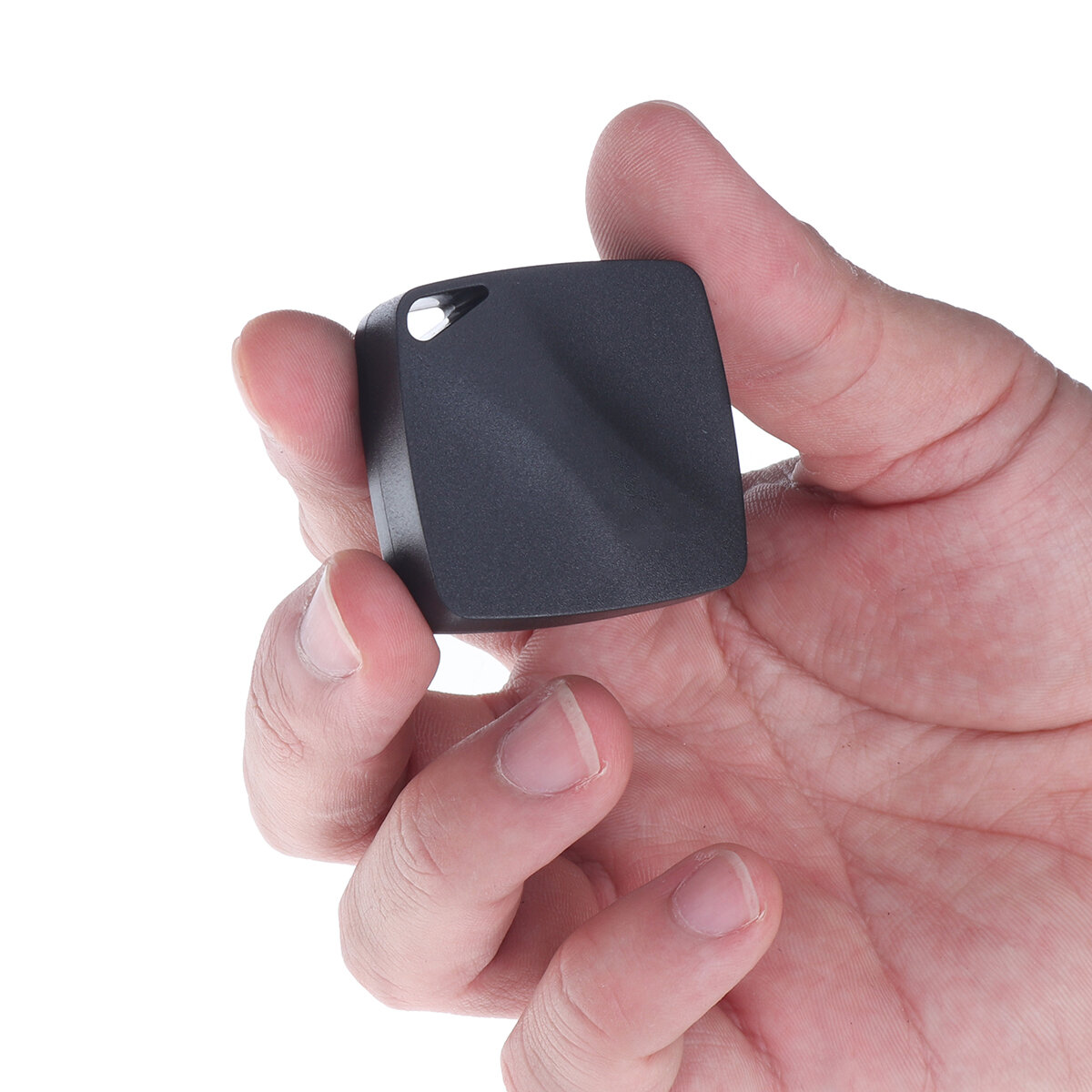

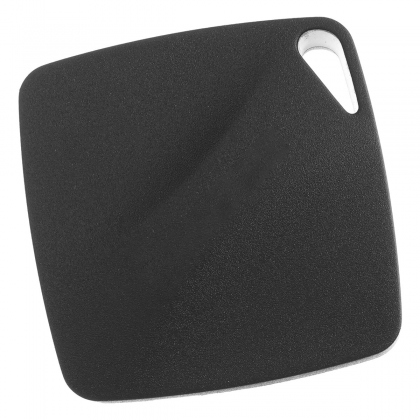

Detail Pictures:
