Sonoff® ZB CC2531 USB Dongle Module Bare Board Packet Protocol Analyzer USB Interface Dongle Supports BASICZBR3 S31 Lite zb COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

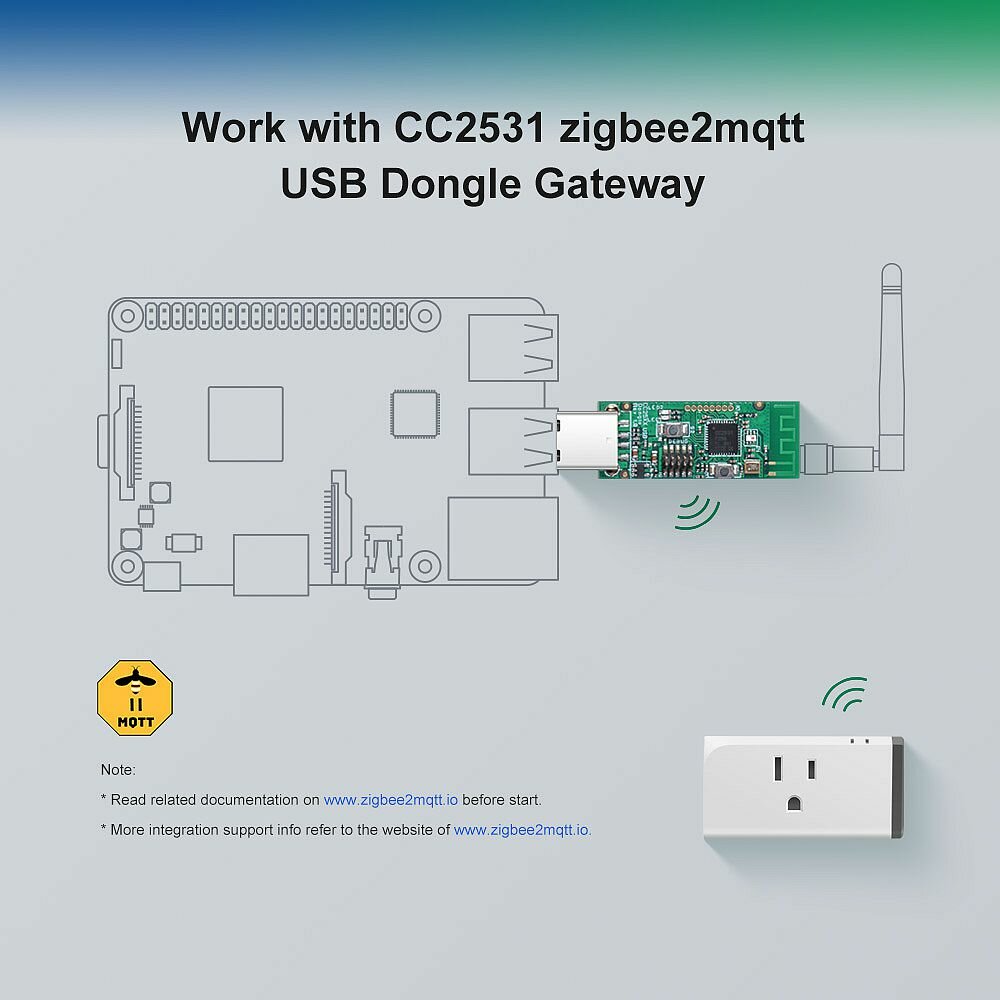

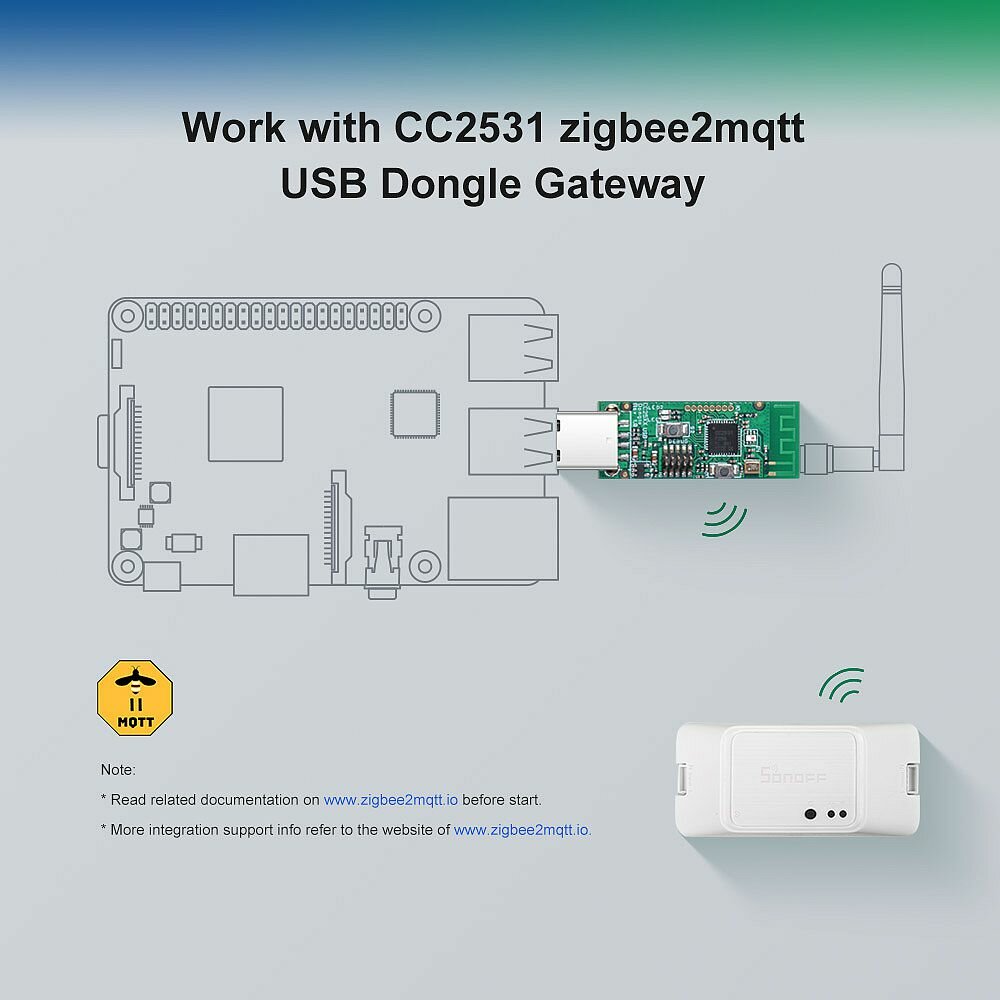

To run ZB 2mqtt for the control of SONOFF ZB products like BASICZBR3, S31 Lite Zb in your home automation system, a CC2531 USB dongle integration is recommended.
Features:

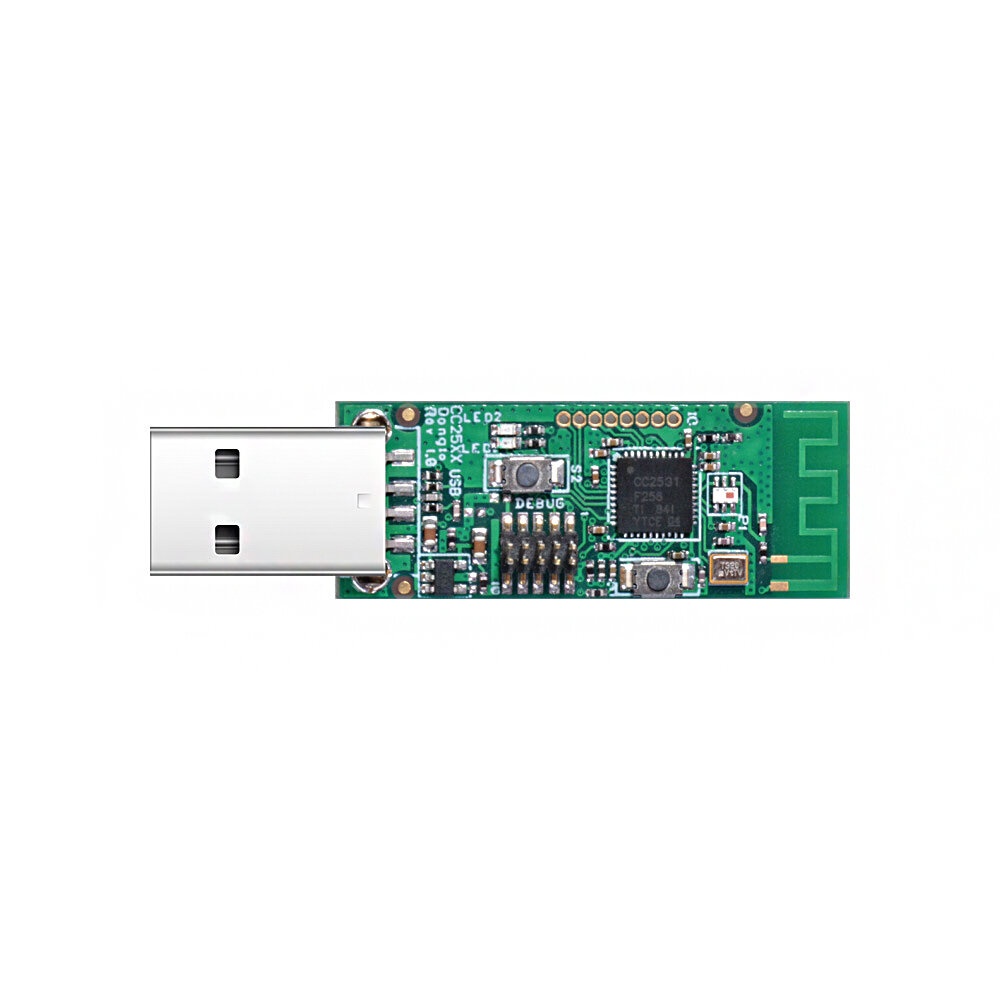

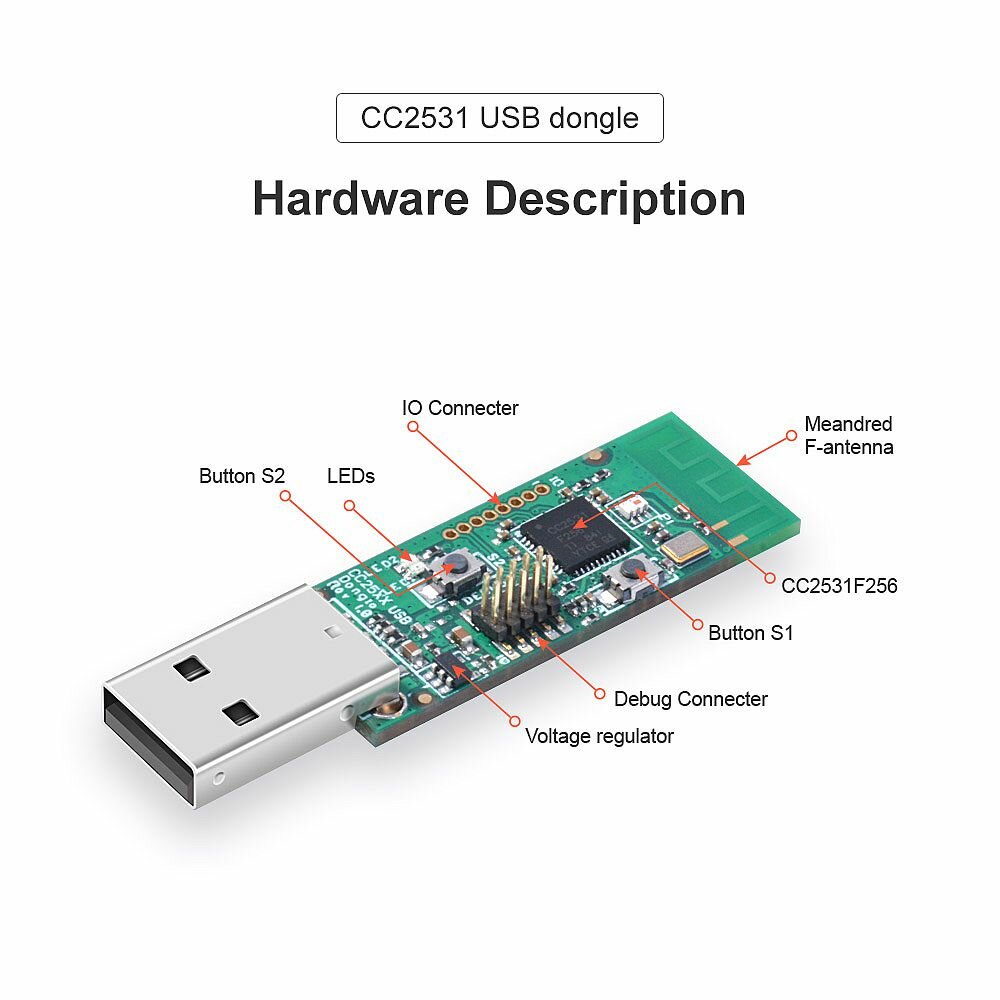

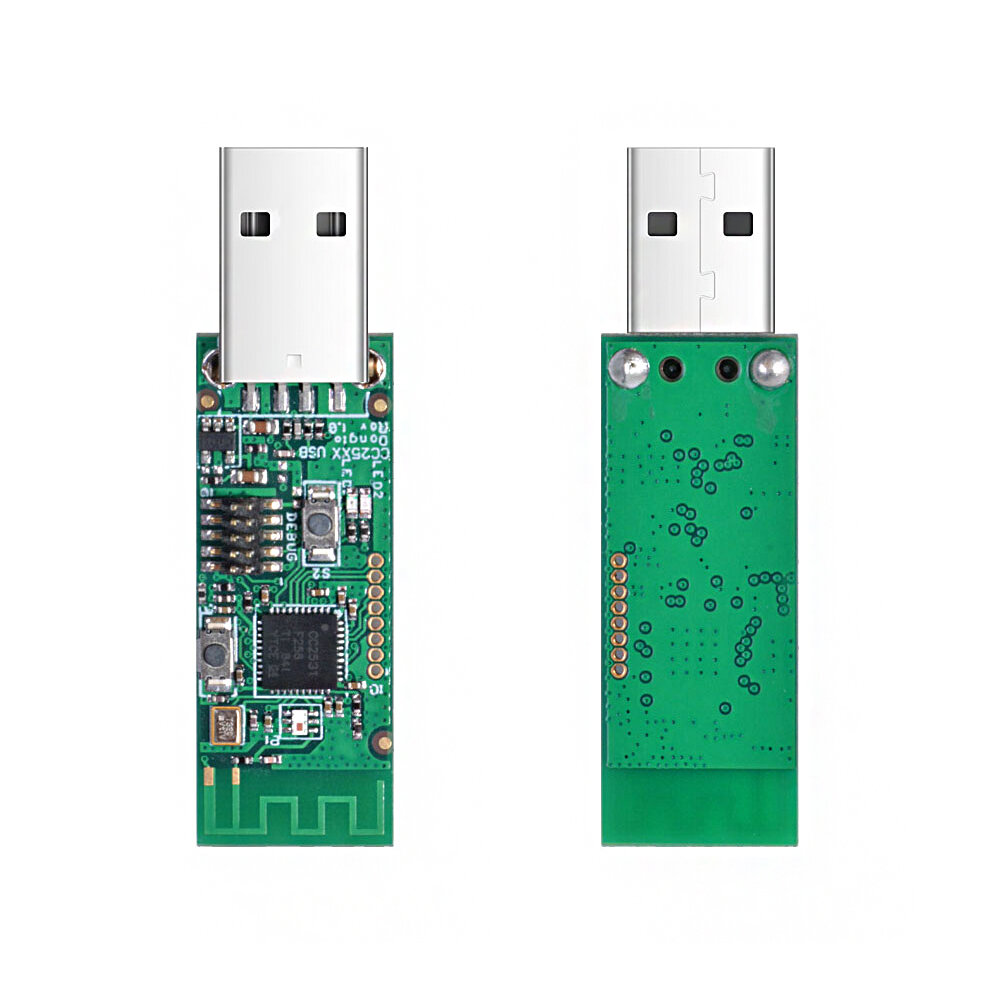

* The CC2531 USB dongle is a fully operational USB device which provides a PC interface to IEEE802.15.4 / ZB applications.* Comes with a CC2531ZNP-Prod firmware, it is a ready-to-go CC2531 USB dongle for * The dongle can be plugged directly into your PC/Raspberry etc used as a  packet sniffer.* Two buttons and two LEDs for user interaction.* Lead out 8 IO connectors. Debug interface. USB dongle size is 5.6*1.6*0.7cm.
Usage:
How to integrate the SONOFF  products into your home automation system? Please refer to the website of  for more information. As ITEAD has already done the firmware flash of CC2531ZNP-Prod for CC2531 USB dongle, you can directly start with the section of “Running 2mqtt”
Package Information:
Package Size: Approach. 11.8*11*2.6cm / 4.6*4.3*1inPackage Weight: Approach. 8g/0.28oz(1PCS)
ZB
