R503 Capacitive Fingerprint Module Sensor Scanner Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin COD [1696220]

Home/ Electronic Components & Supplies/ Module Board/ Sensor & Detector Module/ R503 Capacitive Fingerprint Module Sensor Scanner Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin COD

Item Description
Customer Reviews
Payment & Shipping

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

Select
Make:
Select
Submodel:
Select
Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

Year
Make
Model
Submodel
Trim
Engine

Features:

Model	R503
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA

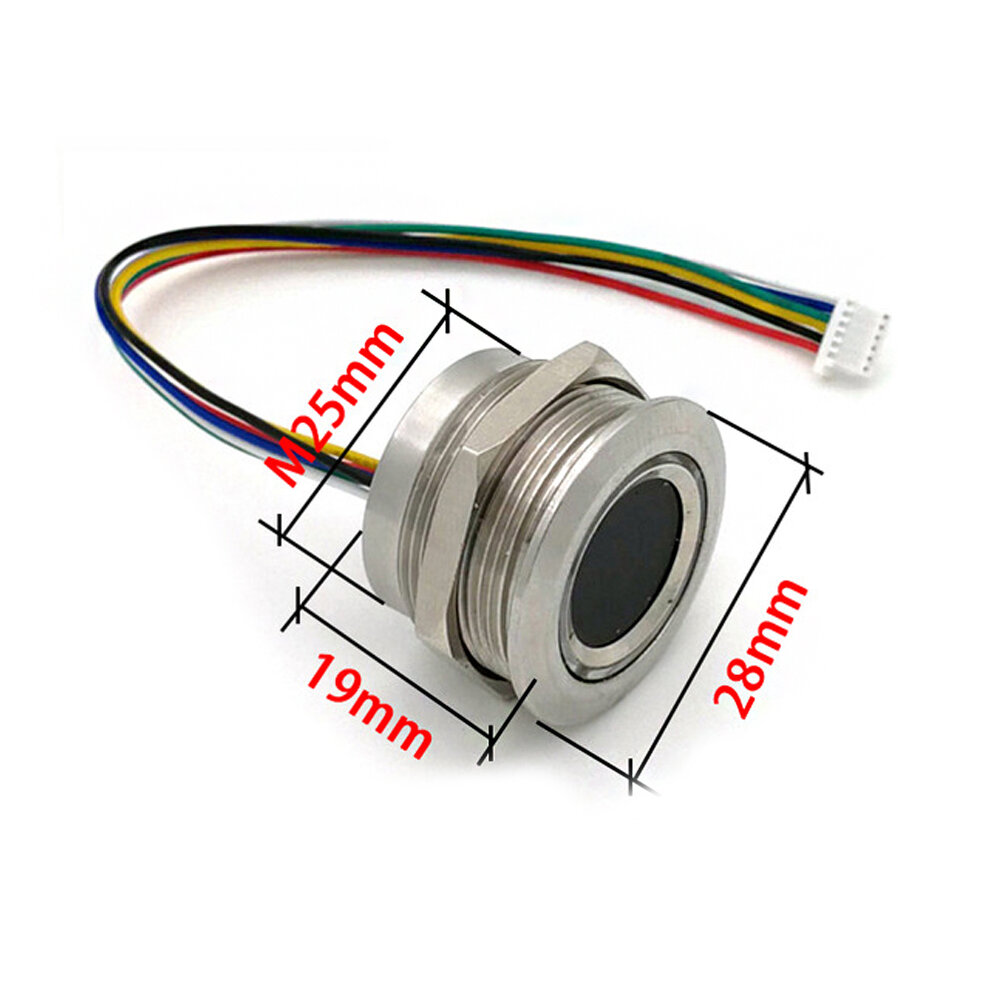

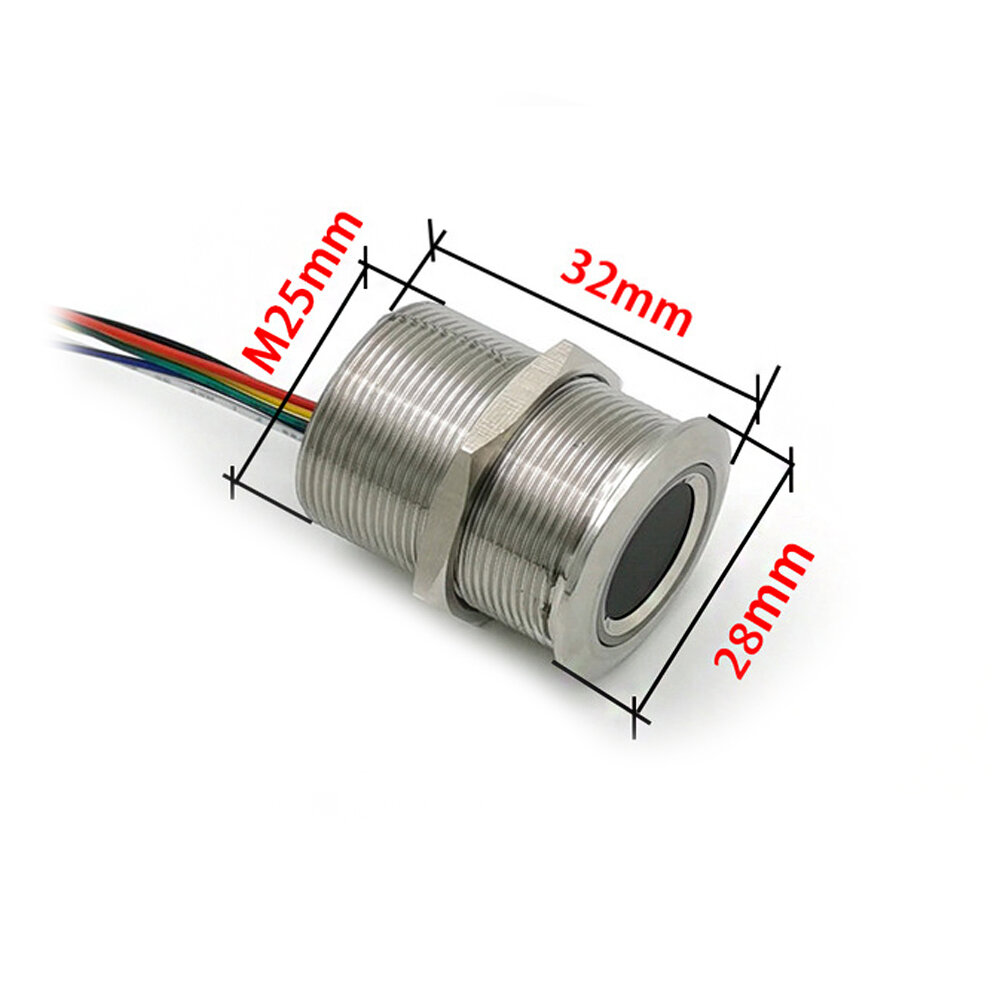

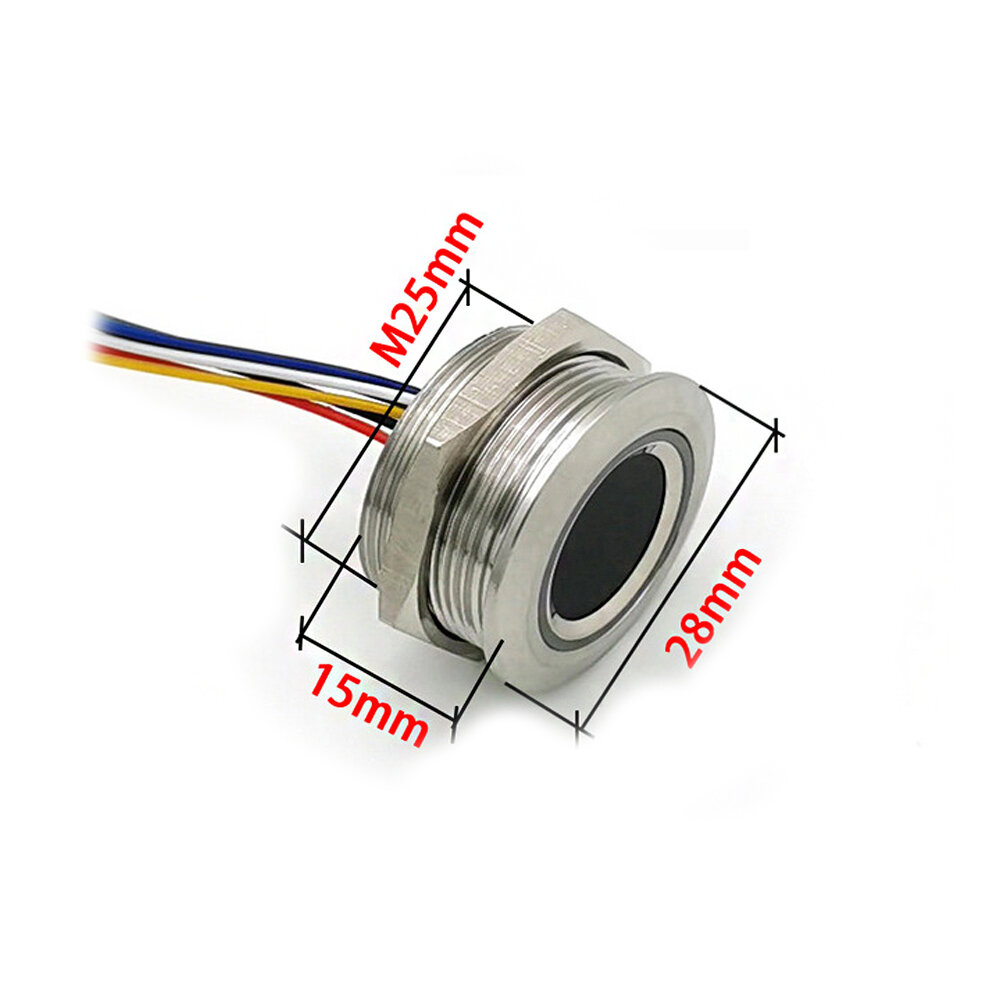

Fingerprint module external size	Diameter 28 (mm)
Fingerprint module inner size	Diameter 23.5 (mm)
Fingerprint module height	19 (mm)
Effective collection area	Diameter 15.5 (mm)

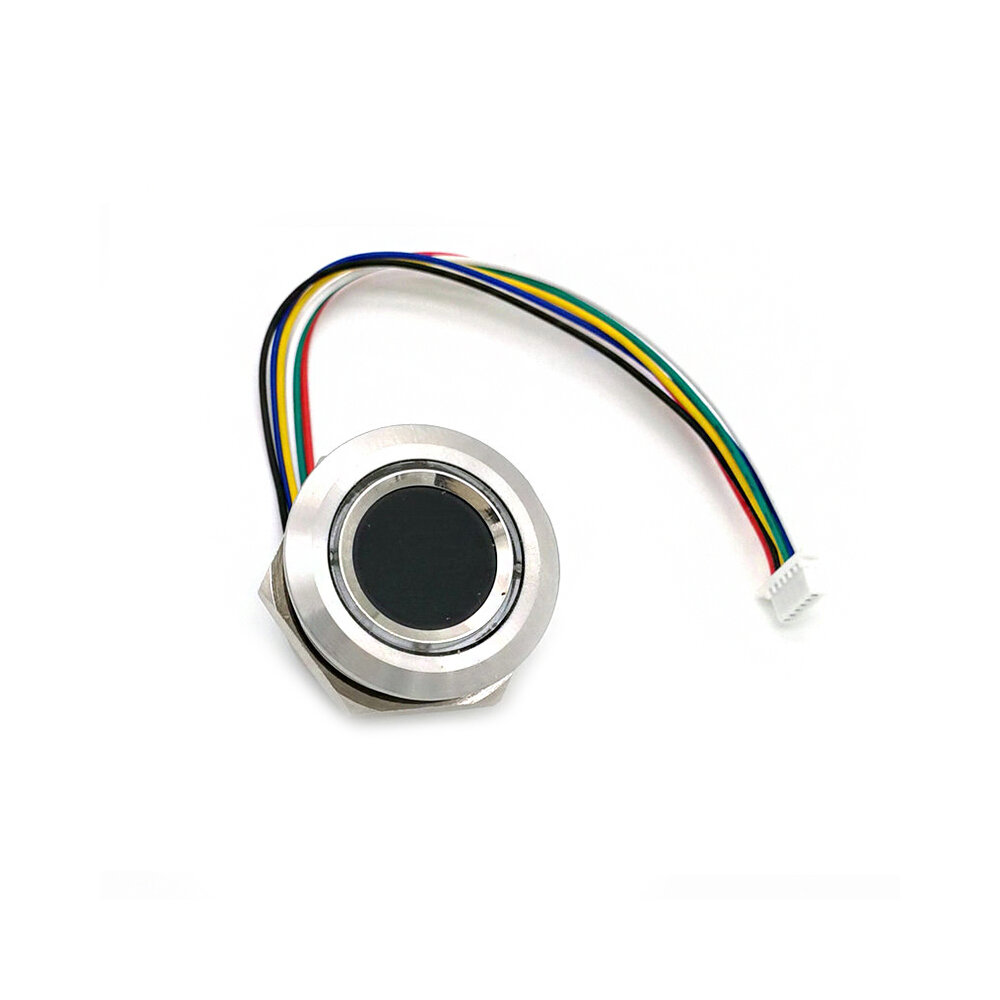

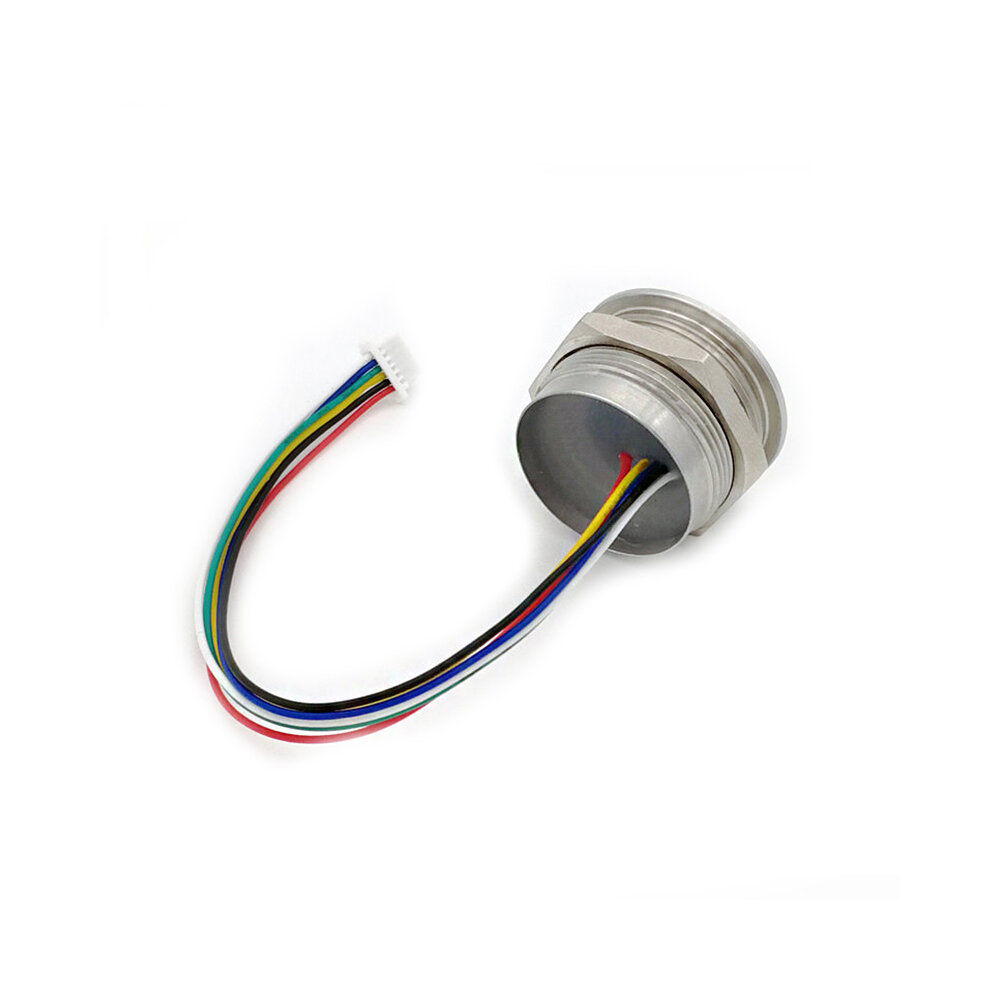

Connector	MX1.0-6Pin
LED Control	YES

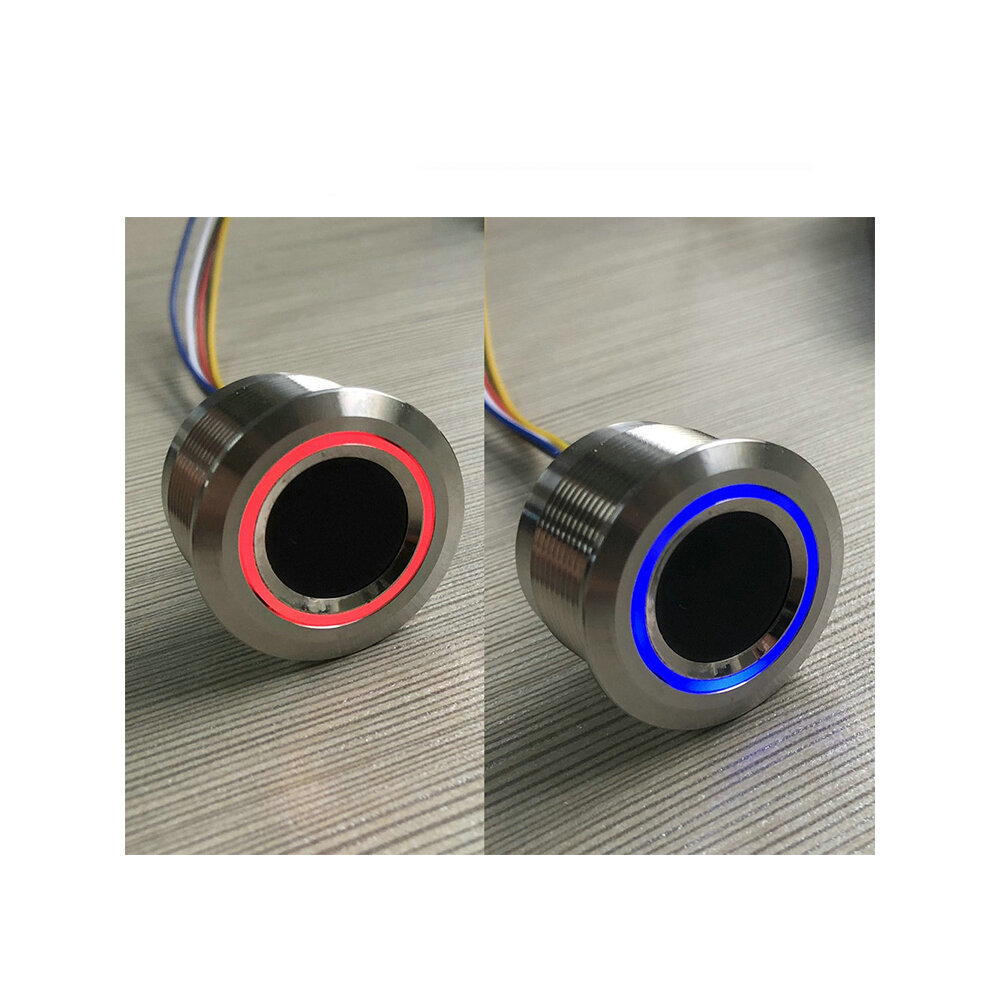

LED Color	Blue and Red
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Package Included:

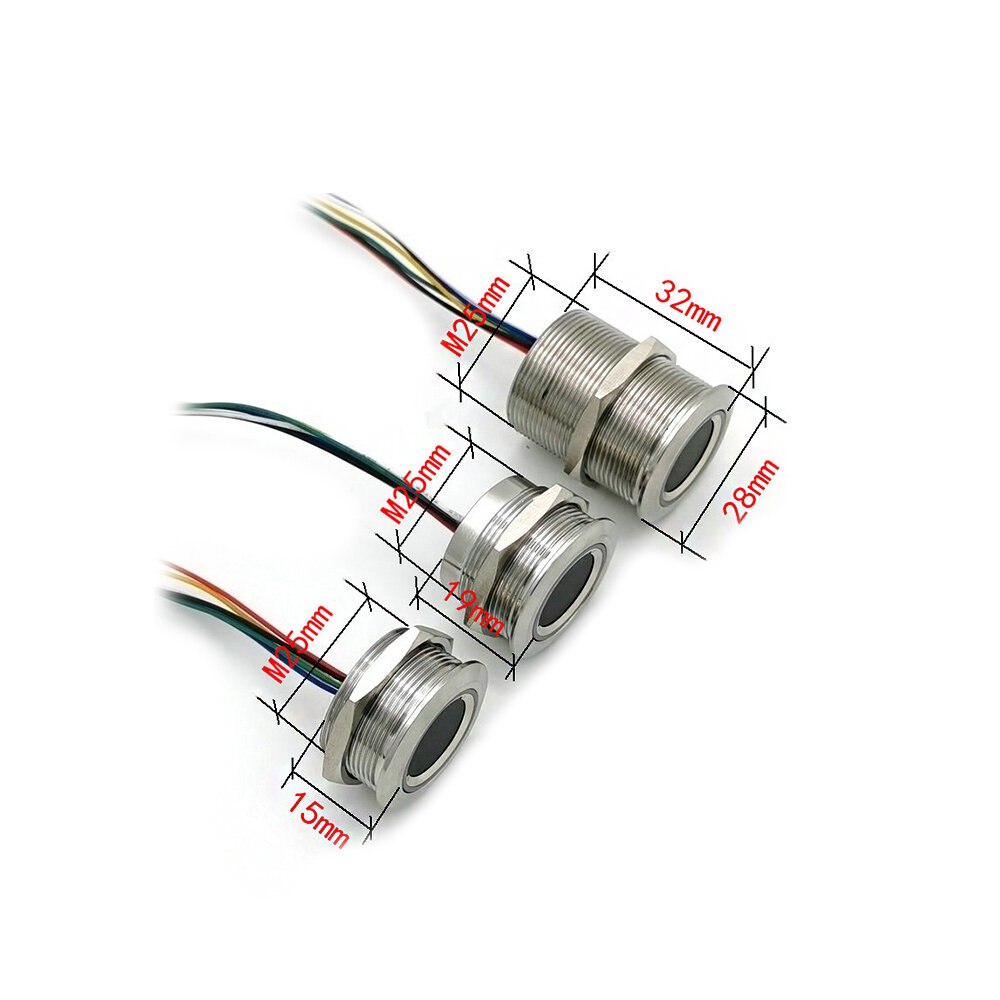

	R501	R502	R502-A	R502-AW	R503
Diameter	36mm	22mm	22mm	55508.4mm	28mm
Interface	UART	UART	UART	UART	UART
Voltage	DC4.2-6V	DC3.3V	DC3.3V	DC3.3V	DC3.3V
Resolution	508DPI	508DPI	508DPI	508DPI	508DPI
Working current	42mA	18mA	20mA	20mA	20mA
Fingerprint capacity	500	200	200	200	200
Sensing Array	190*192 pixel	190*192 pixel	190*192 pixel	190*192 pixel	190*192 pixel
Effective collection area	diameter 15.5 mm	diameter 15.5 mm	diameter 15.5 mm	diameter 15.5 mm	diameter 15.5 mm
Finger touch function	YES	YES	YES	YES	YES
LED Color	Red/Blue	Purple/Red/Blue	Purple/Red/Blue	Purple/Red/Blue	Purple/Red/Blue
LED Control	No	Yes	Yes	Yes	Yes
Connector	MX 1.25mm 6pin	MX 1.0mm 6pin	MX 1.0mm 6pin	MX 1.0mm 6pin	MX 1.0mm 6pin
Connect control board	K200/K202/K212/K215 V1.2/K216	K200-3.3/K202/K215-V1.2/K216	K200-3.3/K202/K215-V1.2/K216	K200-3.3/K202/K215-V1.2/K216	K200-3.3/K202/K215-V1.2/K216
