PowMr MPPT 60A Solar Charge and Discharge Controller 12V 24V 36V 48V Auto for Max PV 190VDC Lead Acid Lithium Battery COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

>>>Manual: Click here to open<<<

Specifications:

Model Name				MPPT-60A
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.)				12V system  (720W)
		24V system (960W)		24V system (1440W)
				36V system (2100W)
				48V system (2800W)
Rated output current				60A
Temperature Coefficient	±0.02%/ centi-degree
Automatic temperature compensation	14.2V-(Max temperature-25 centi-degree)*0.3
Output voltage ripple-peak	100mV
Output voltage accurac	≤±1%
Input Anti-intrusion protection	yes
Temperature Protection	75°C
Temperature increased protection
Fan-on temperature	>40 °C
Fan-off temperature	<35 °C
Acoustic noise	≤40dB
Cooling way	Forced air cooling
Components	Imported materials, Accord  to EU standards, Industrial grade range.
Environmental requirements	Meet 2002/95/EC; No cadmium, hydrides and fluorides
Security Level	Accord to CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility	Accord to EN61000, EN55022, EN55024
Enclosure	IP21
Net weight(Kg)	1.1
Gross weight(Kg)	1.2


- Intelligent Maximum Power Poin Tracking technology- Built-in DSP controller with high performance- Automatic battery voltage detection 12V/24V/36V/48V- Three-stage charging optimizes battery performance- Multi-function LCD displays- Reverse polarity protection of solar panel- Overcharge protection- Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

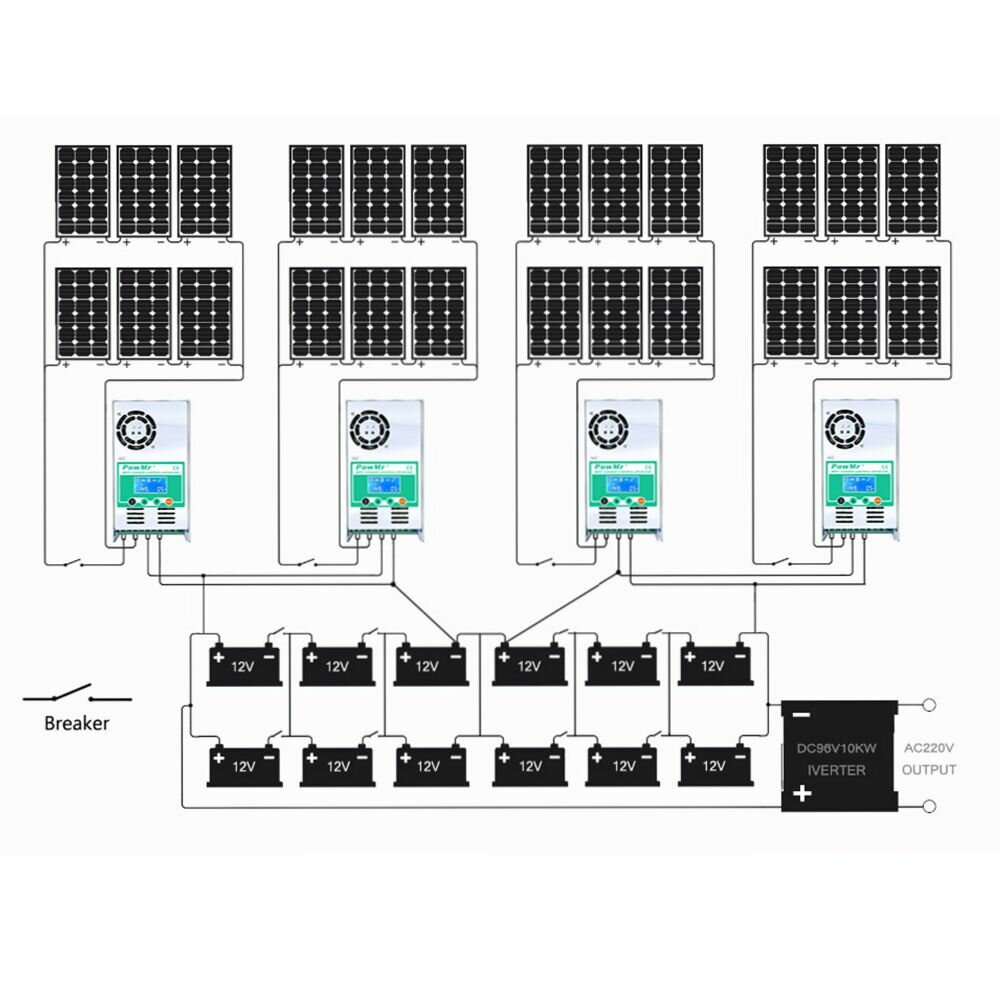

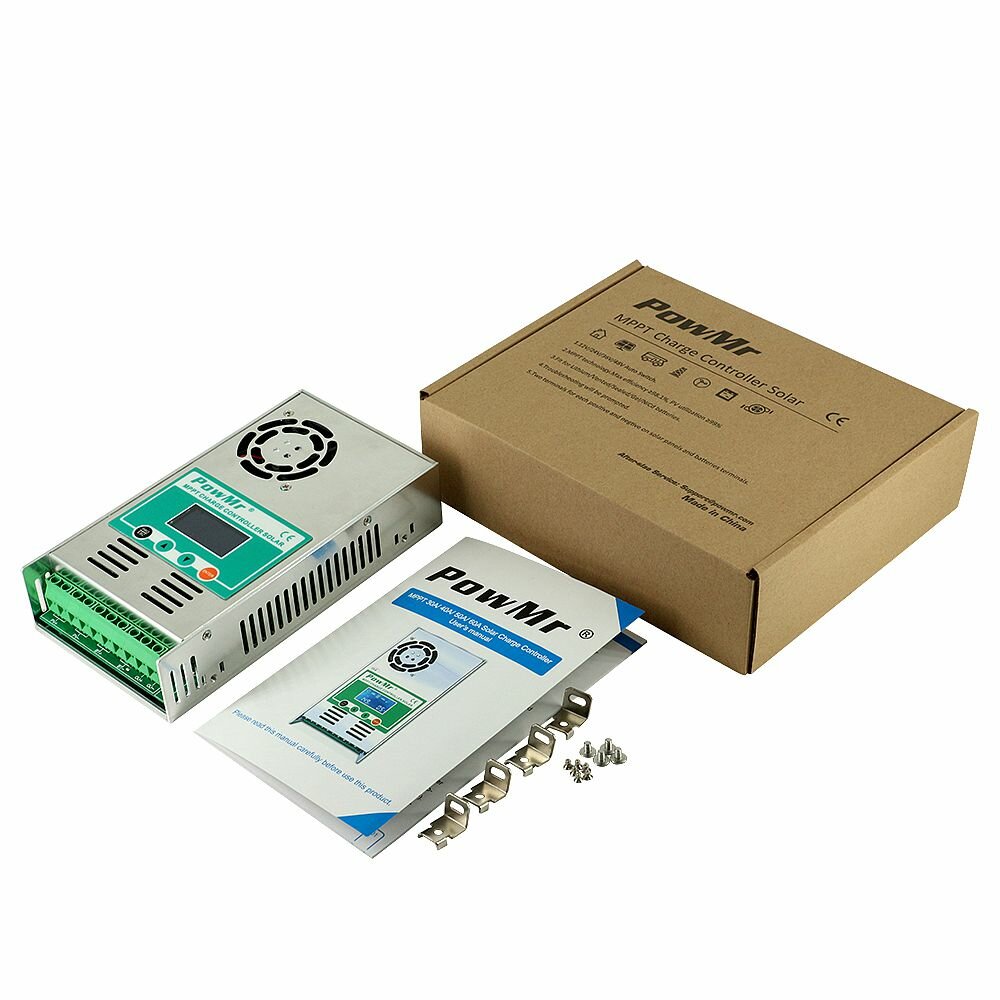

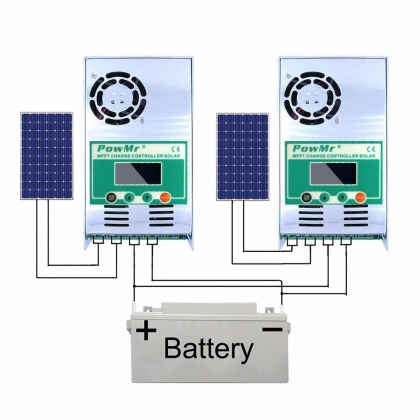

1. The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection. 2. You can Put two pieces 60A in parallel ,So total is MPPT 120A. Package Included: 1 x MPPT-60A Solar Controllers 1 x User Manual (English)
