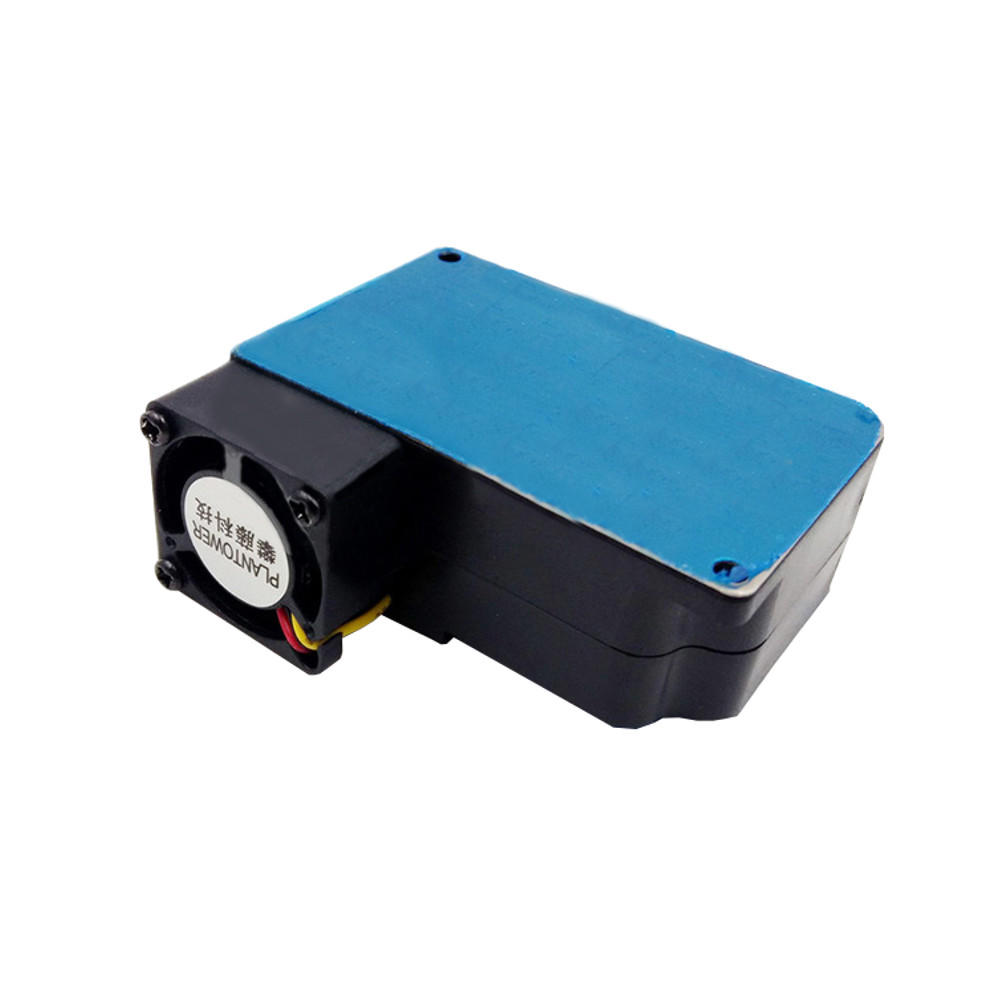

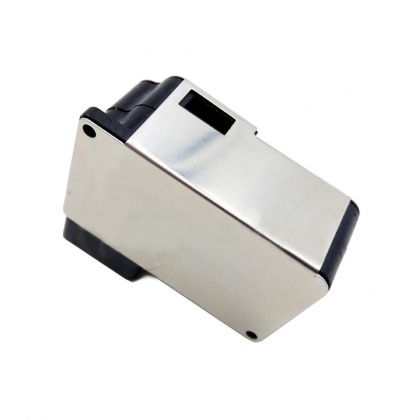

Plantower® G3 PMS3003 PM2.5 Sensor Module High Precision Gas Smog Dust Tester COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

  Working principle:

Parameter	Index	Unit
Measuring range	0.3~1.0; 1.0~2.5; 2.5~10	(u m)
Counting efficiency	50%@0.3 um, 98%@ > : 0.5 um
Weighing volume	0.1	L (L)
Response time	<=10	Seconds (S)
DC supply voltage	5	Volt (V)
Maximum operating current	120	mA (nnA)
Stand-by current	100	Microamp (mA)
Data interface level	L <0.8 @3.3 H >2.7@3.3	Volt (V)
Working temperature	-10~+50	Celsius (°C)
Operating humidity range	0-99%
Mean time between failures	>3	Year (Y)
Size	50x43x21	Millimeter (mm)

PIN	PWM	PWM
PIN	NC	Module reset signal / TTL level @3.3V, low reset
PIN	RESET	Serial port transmit pin / TTL level @3.3V
PIN	TXD	Serial Receiver Pin / TTL Level @3.3V
PIN	RXD	Set pin/TTL level @3.3V, high level or floating
PIN	SET	For normal working state, low level is sleep state
PIN	GND	Negative power supply
PIN	NCVCC	Power positive +5V

The main output is the unit concentration of the mass concentration of each concentration in the unit volume: micrograms per cubic meter. The output is divided into two states: active output and passive output. After the sensor is powered on, the default state is active output, that is, the sensor actively sends serial data to the host at a time interval of 200~800ms. The higher the concentration of particulate matter in the air, the shorter the time interval. The active output is divided into two modes: smooth mode and fast mode.
Package includes:

1 x PM2.5 Sensor Module
