Original JYETech DSO-SHELL DSO150 15001K DIY Digital Oscilloscope Unassembled Kit With Housing COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

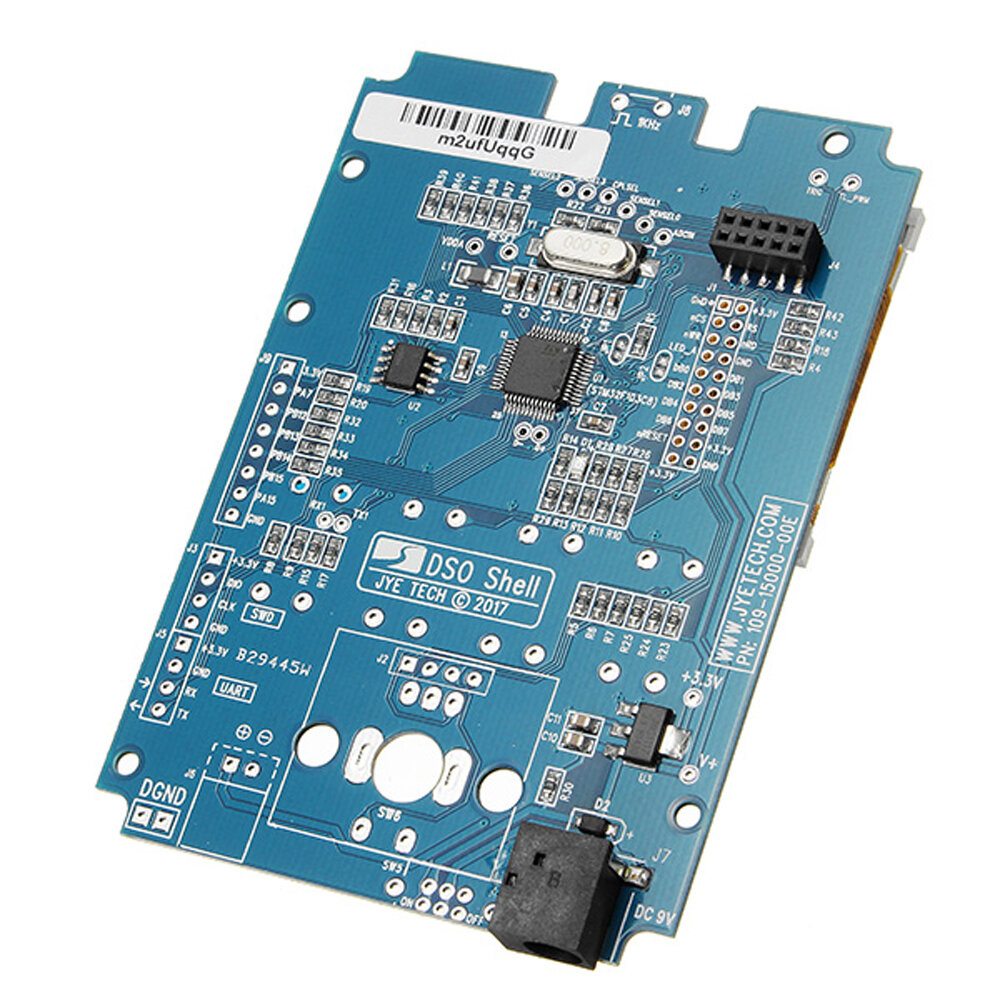

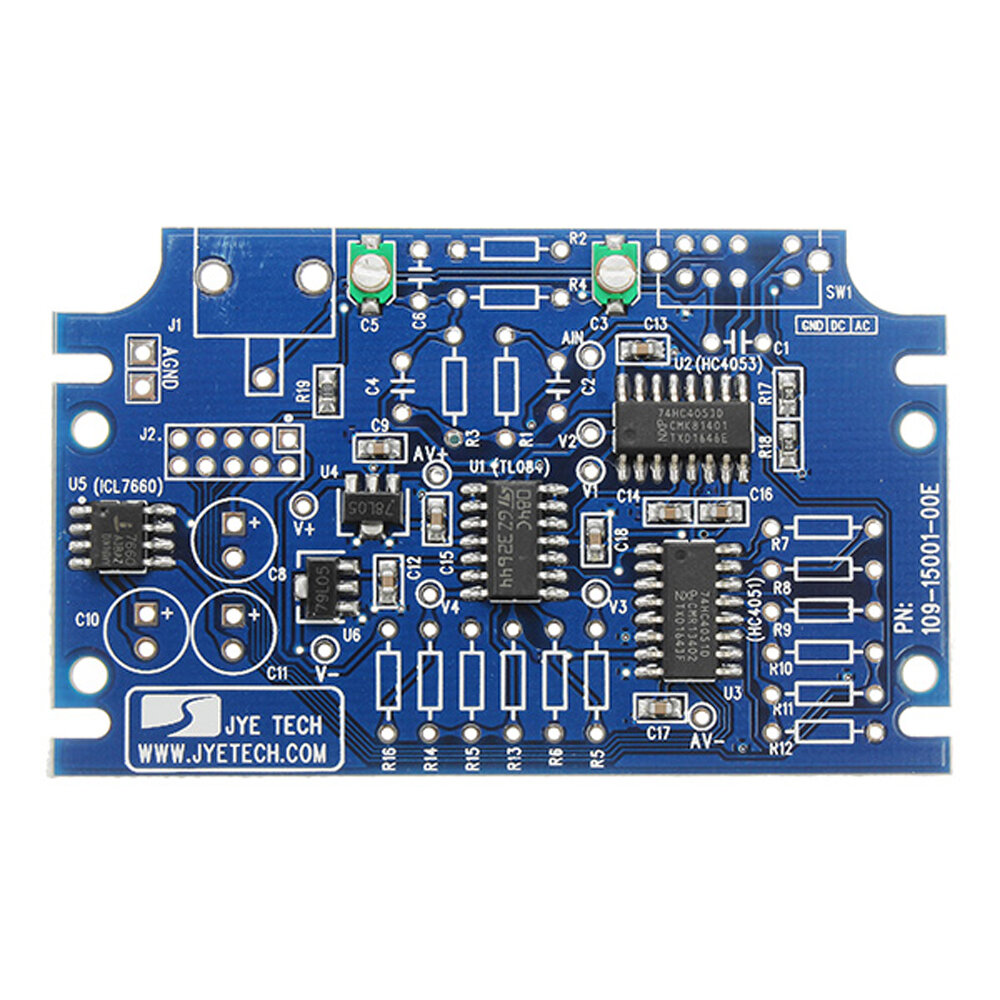

2. Display and MCU are now mounted on the same board (mainboard) to avoid using inter-board pin-headers. Feedback from DSO138 usres have shown that soldering on the pin-headers are often problematic for many beginners. Analog channel is placed on a separated board which contains most user install parts. This brings in better separation between analog and digital circuits. Without the analog portion the mainboard is actually a general purpose control board that can be used in many other applications. The mainboard is fully installed (except a few through-hold components) and factory tested before packing.

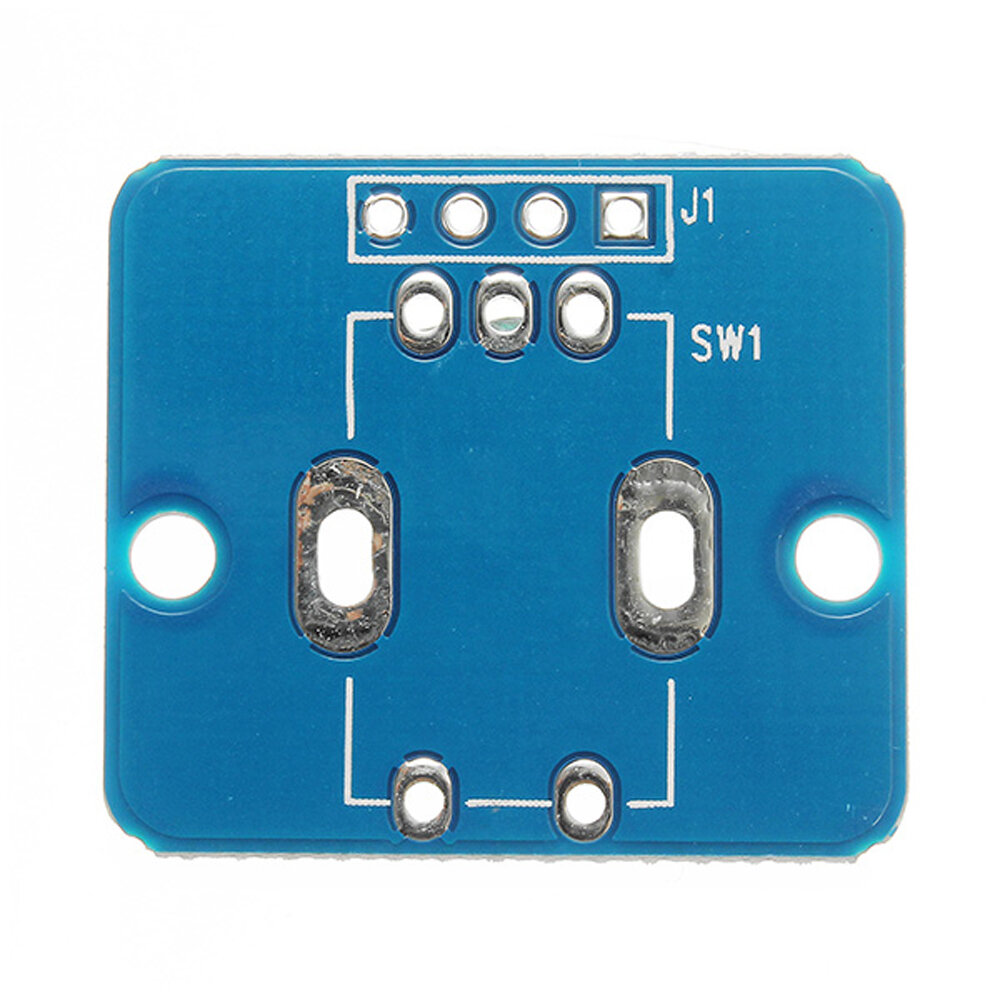

4. Rotary encoder has been added. It makes parameter adjustment much quicker and easier.

6. DSO Shell runs on 9V (do not use power voltage higher than 10V!) power supply. Users need to prepare their own power supply since it is not included in the kits. The power jack on the mainboard accepts standare 5.5mm/2.1mm DC plug. Alternative 2-pin connector (0.1" pitch) is also provided for convenience to connect to different power sources.

Important Notes:

It is assumed that users have adaquate soldering skills and troubleshooting skills to assemble the DSO Shell kits. Buyers are advised that due to skills of user is involved in assembly it is not guaranteed every kit will end up being a working device. But we will make as much efforts as we can to approach that goal.





Analog bandwidth: 0 - 200KHz

Sensitivity error: < 5%

Input Impedance: 1M ohm

Coupling: DC, AC, GND

Timebase: 10us/Div - 500s/Div

Trigger modes: Auto, Normal, Single

Trigger position: 1/2 of buffer size fixed

Power supply: 9V DC (please make sure the power supply is 9V, lower or higher than 9V will cause problems.)

Dimension: 115mm x 75mm x 22mm



Firmwares: Click to open

Mainboard Schematic

How to Use the DSO150 Library:
Click to open
FAQ, Tips, and Troubleshooting: Click to open

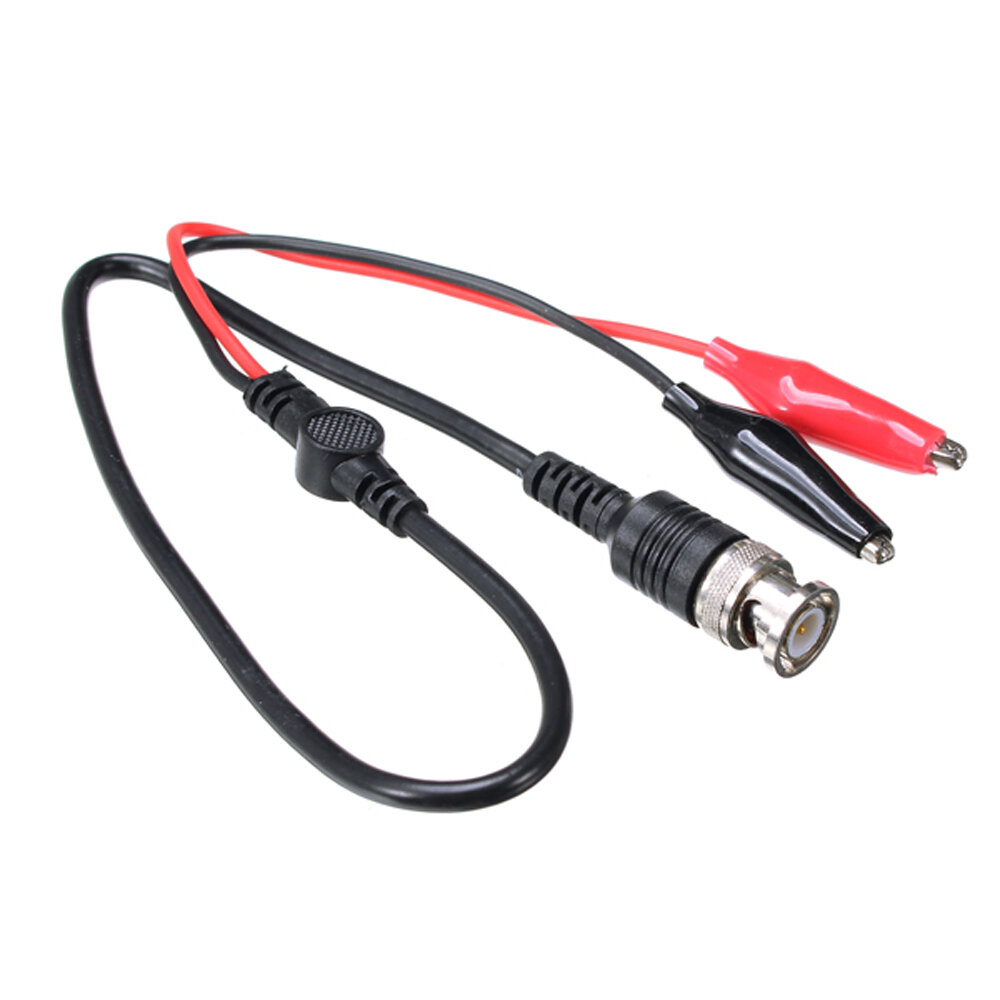

Package includes:

1 x DIY DSO150 Digital Oscilloscope Kit (There may be a color difference)
