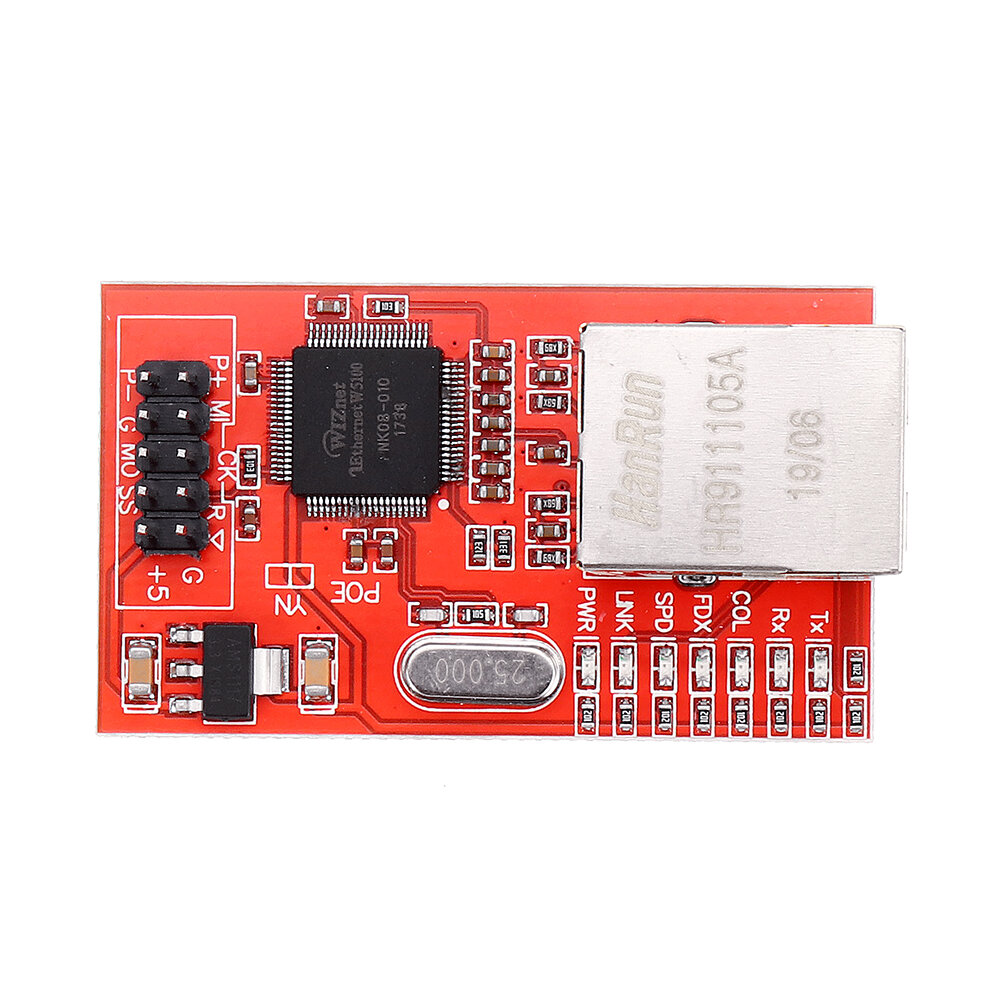

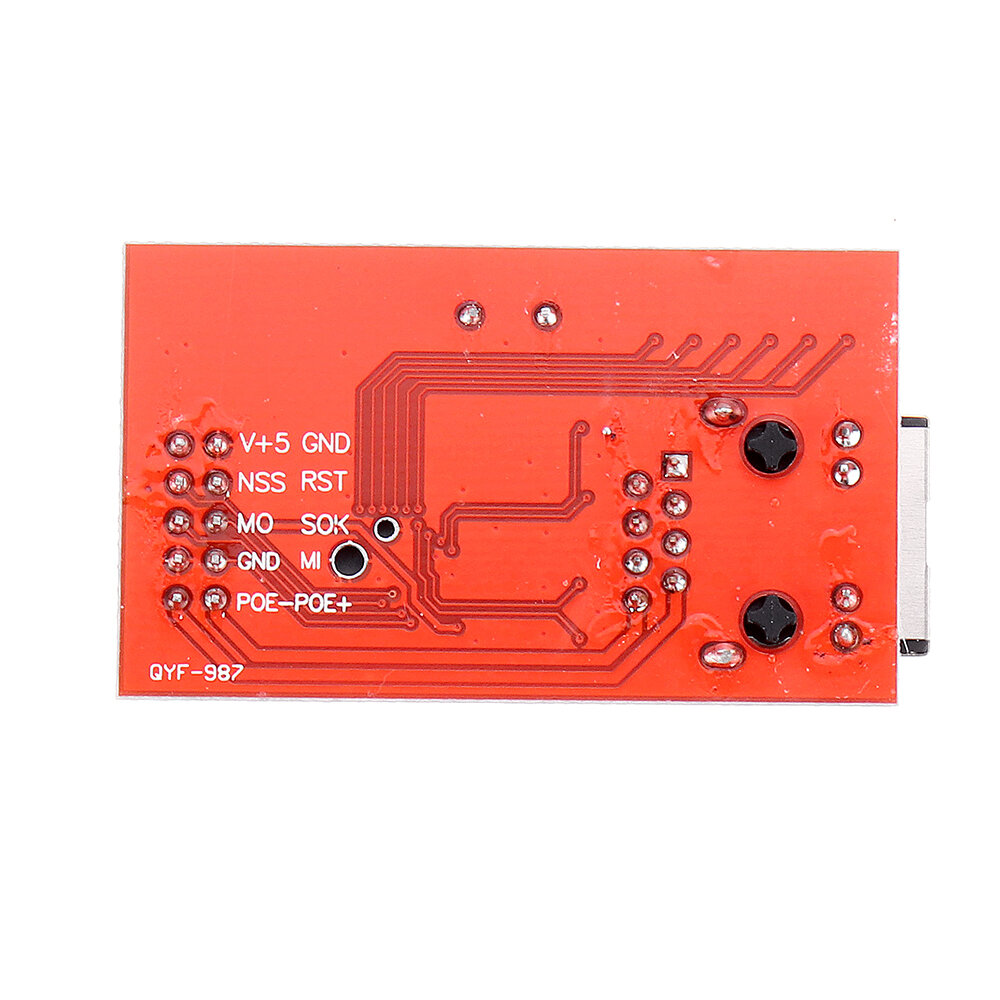

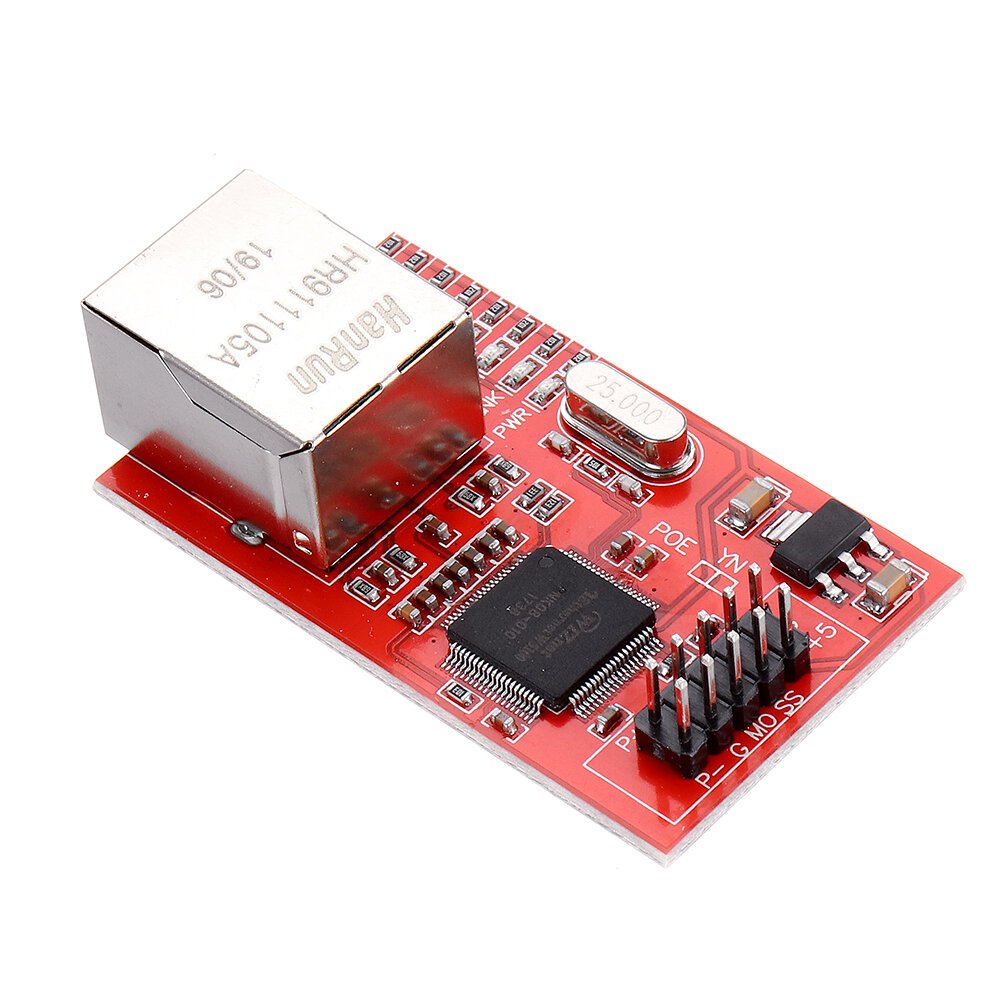

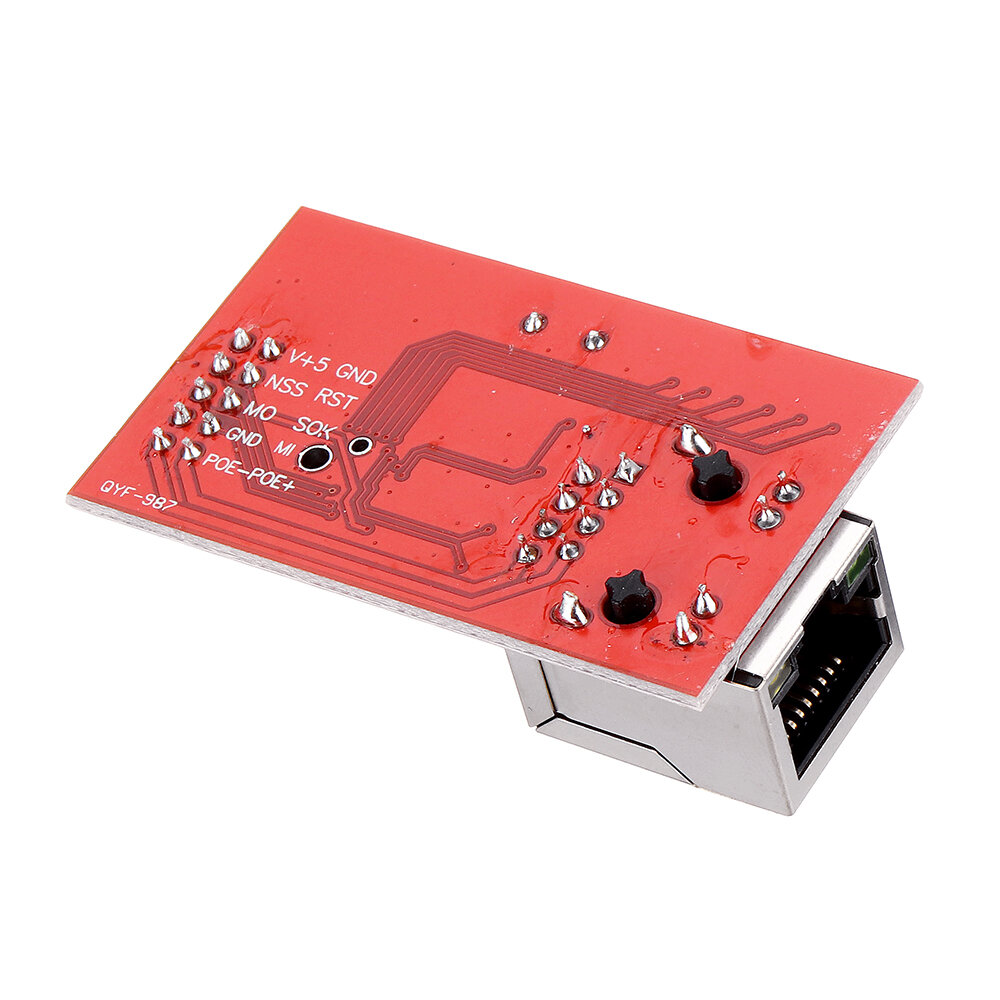

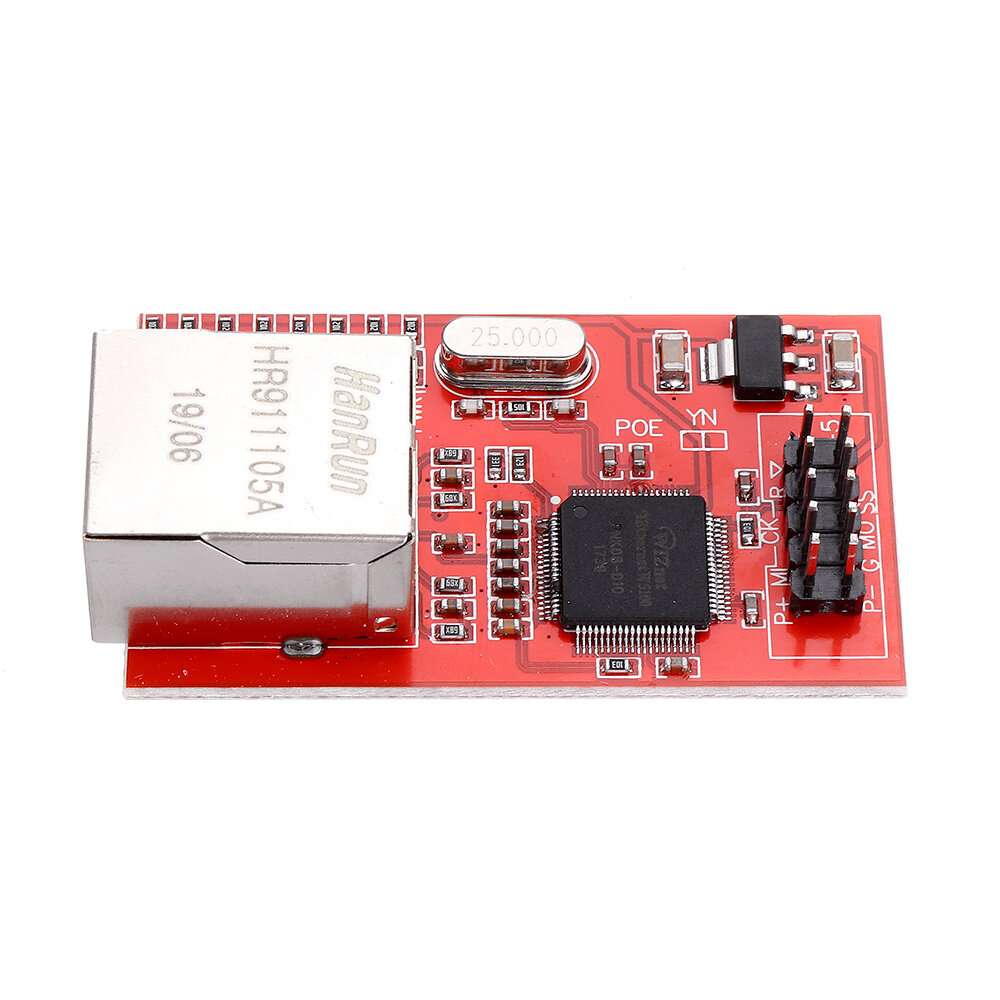

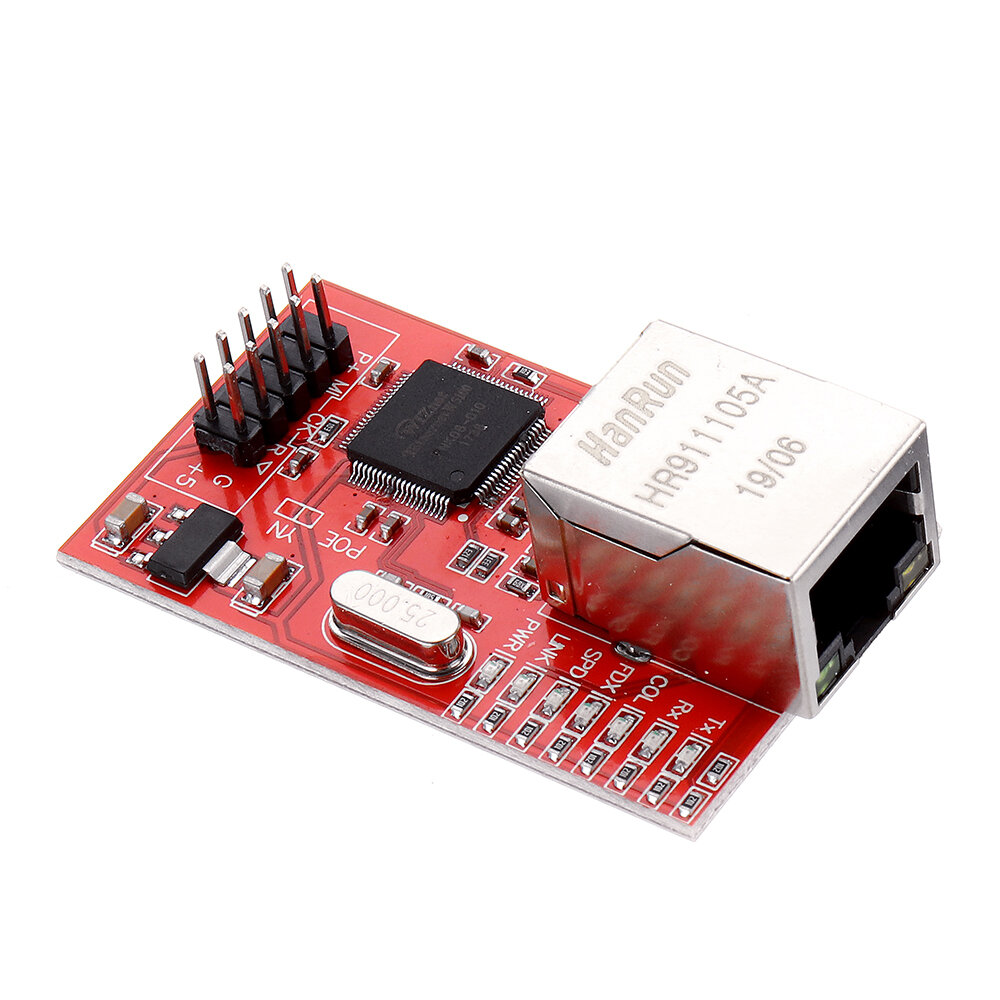

Mini W5100 LAN Ethernet Shield Network Board Module Ethernet UNO Mega 2560 3.3V Geekcreit for Arduino - products that work with official Arduino boards C

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

W5100Is a multi-functional single chip network interface chip, the internal integration10/100Ethernet controller, mainly used in highly integrated, high stability, high performance and low cost of embedded systems. useW5100Can be achieved without the operating systemInternetconnection.W5100versusIEEE802.3 10BASE-Tand802.3u 100BASE-TXcompatible.W5100The internal integration of the whole hardware, and after years of market-provenTCP / IPProtocol stack, Ethernet media transport layer (MAC) And a physical layerPHY). useW5100Do not need to consider the Ethernet control, only need a simple port (Socket) Programming.

• A variety of interfaces are available: direct bus, indirect bus andSPIbus;• Hardware supportTCP / IPProtocol stack, supportTCP, UDP, ICMP, IGMP, IPv4, & Lt;ARP, and PPPoE.• As many as4Independent ports;• Internal integration16KBYTESend and receive cache;• A variety of information indicating the output, includingRX, TX, Full / Duplex, Colision, Link, Speed;• Support for automatic polarity switching (DMI / MDIX);•3.3Vpowered by,IOSignal compatible5VVoltage;• Comes with Ethernet port, double row2 * 14 2.0 mmPin compatibleThe official Ethernet library.

1 x Mini W5100 LAN Ethernet Shield Network Board
