T-Watch onboard:
ESP-32 master:


Chipset	ESP32, dual-core MCU, PMU power management
FLASH	QSPI flash 16MB / PSRAM 8MB
SRAM	520 kB SRAM
Button	power key, IO36
Extended function	Reference enhanced version and sensor kit

Modular interface	UART, SPI, SDIO, I2C, LED PWM, PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA
On-board clock	40MHz crystal oscillator
Working voltage	2.7V-3.6V
Working current	About 70mA
Sleep current	About 3mA
Working temperature range	-40℃ ~ +85℃
Size&Weight	46.474320.4mm
Size&Weight	43.19g

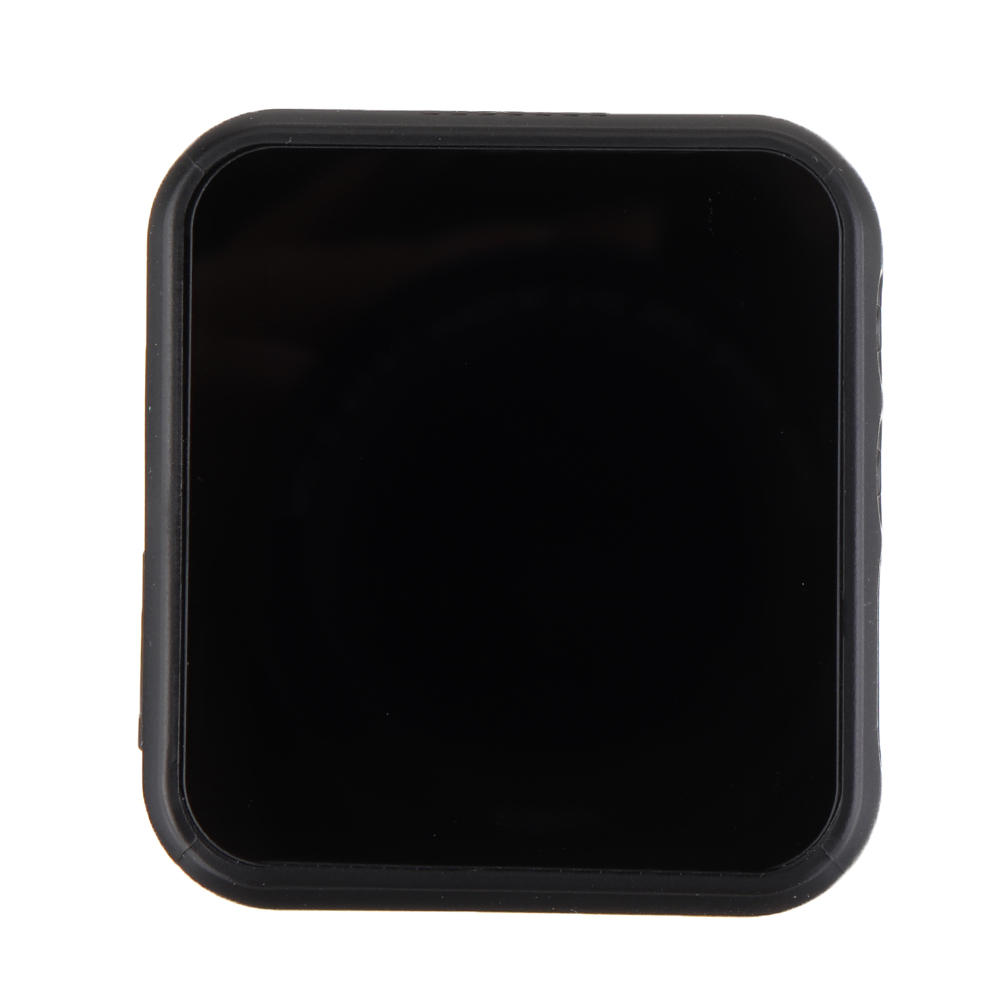

Display:	1.54 inch LCD capacitive touch screen
Sensor:	BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition.
RTC clock:	PCF8563

Power Supply	USB 5V/1A
Charging current	500mA
Battery	3.7V lithium battery

Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol	802.11 b/g/n (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m

Protocol	Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency

Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA (Through network/host to download and write firmware)
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS

Package includes:

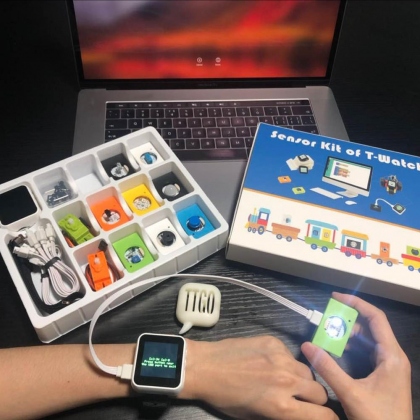

LILYGO® TTGO T-Watch Intelligent Programming Sensor Module Smart Watch Kit
