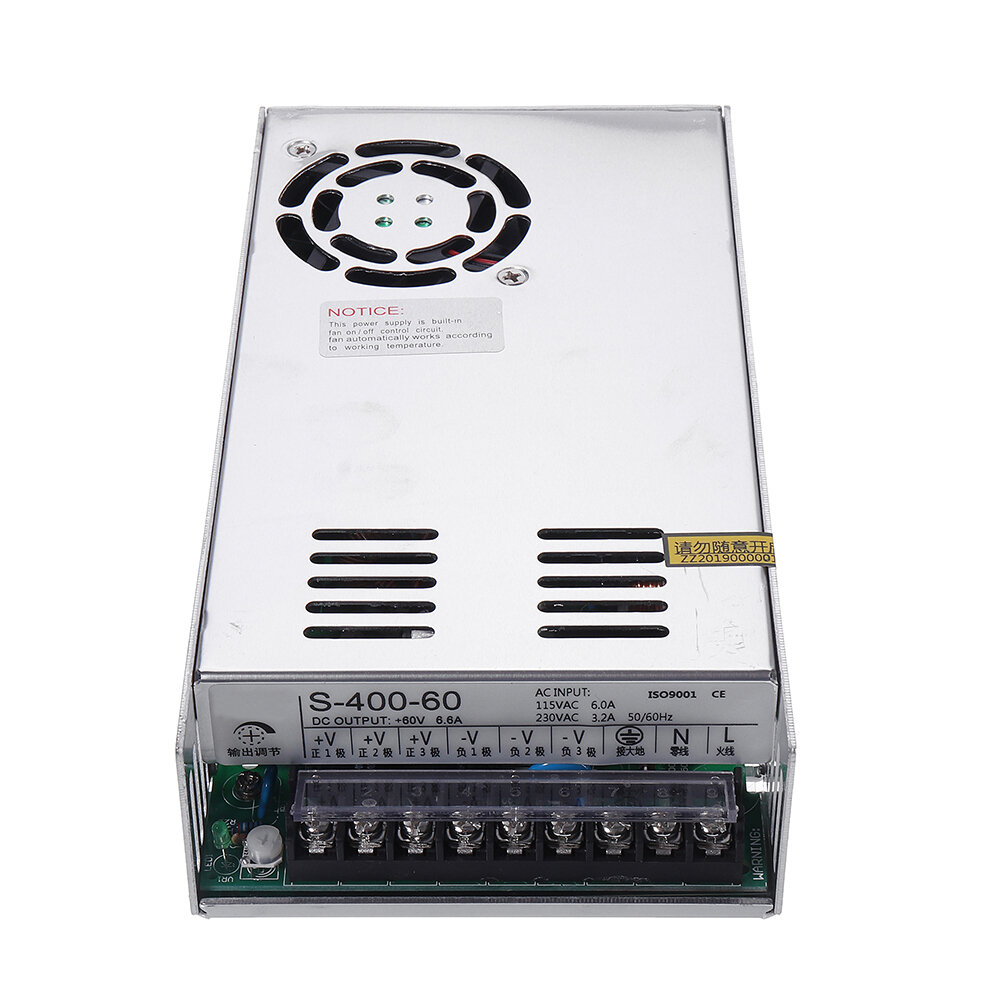

LED Switching Power Supply S-400W-60V DC60V Support Monitoring Transformer Lighting For RD6006/RD6006W

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Feature:

							60V (This item)
		RTH3:>=70°C fan starts, <=60°C fan off, >=85°C off output (18V-48V)
Environment	Working temperature, humidity	-10°C ~+50°C, 20% ~90%RH
	Storage temperature, humidity	-20°C ~+85°C, 10%~95%RH
Safety	Withstand voltage	Input-Output: 1.5KVAC  Output - Enclosure: 0.5KVAC for 1 minute
	Leakage current	Input-output <6mA at 1.5KVAC
	Leakage current	Input-output <1.5mA at 220VAC
	Isolation resistance	Input-output, input-housing, output-housing: 500VDC/100MΩ
Other	Size	215*115*50mm
	Net reset / gross reset	874.1/936.3g

①Ripple and noise measurement method: Use a 12mm twisted pair cable, and the terminal should be connected with 0.1uF and 47uF capacitors in parallel and measure at 20MHz bandwidth.②Efficiency is tested at an input voltage of 230VAC, rated load, and ambient temperature of 25°C.Accuracy: Includes setting error, linear adjustment rate and load adjustment rate.Linear Rate Test Method: Test from low voltage to high voltage at rated load.Load regulation test method: from 0% to 100% of rated load.The startup time is measured in the cold start state. The fast and frequent switching machine may increase the startup time. When the operating altitude is higher than 2000M, the operating environment temperature should be reduced by 5°C/1000M.


1 x Power Supply Note: Due to logistics reasons, the following problems may occur after you receive the goods (just like the picture), you can use your hand to adjust, that's ok, if you mind this, please stop buying.
