LCD1602 LCD Screen Module Blue/Yellow Green Screen IIC/I2C 1602 LCD Module LCD1602A Blue Screen with Back Module COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:

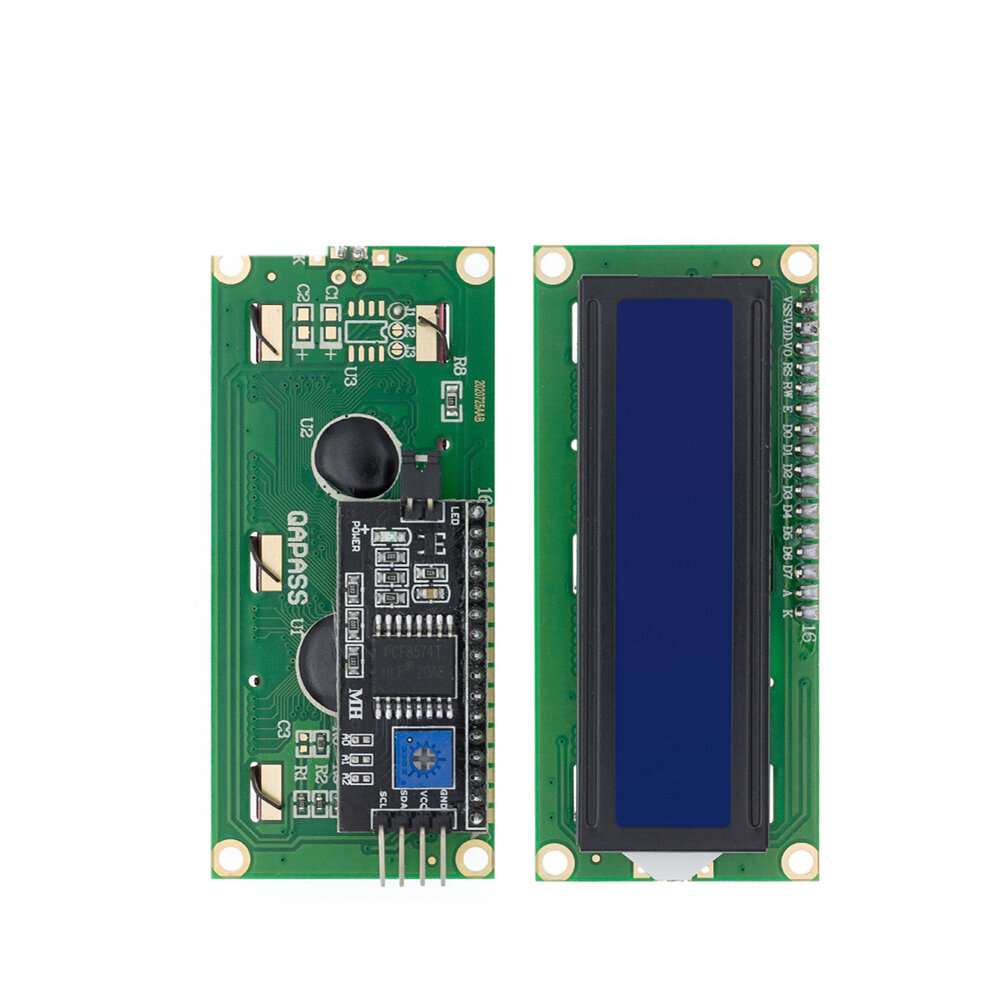

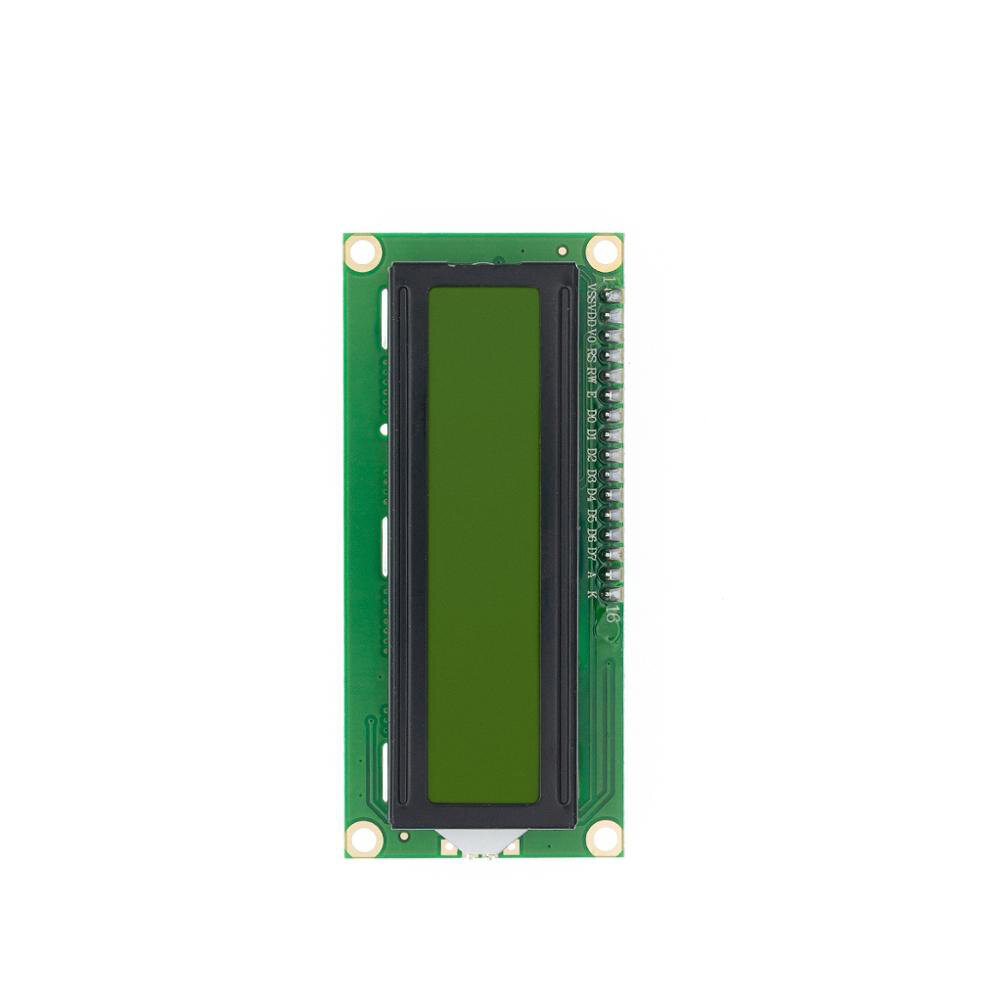

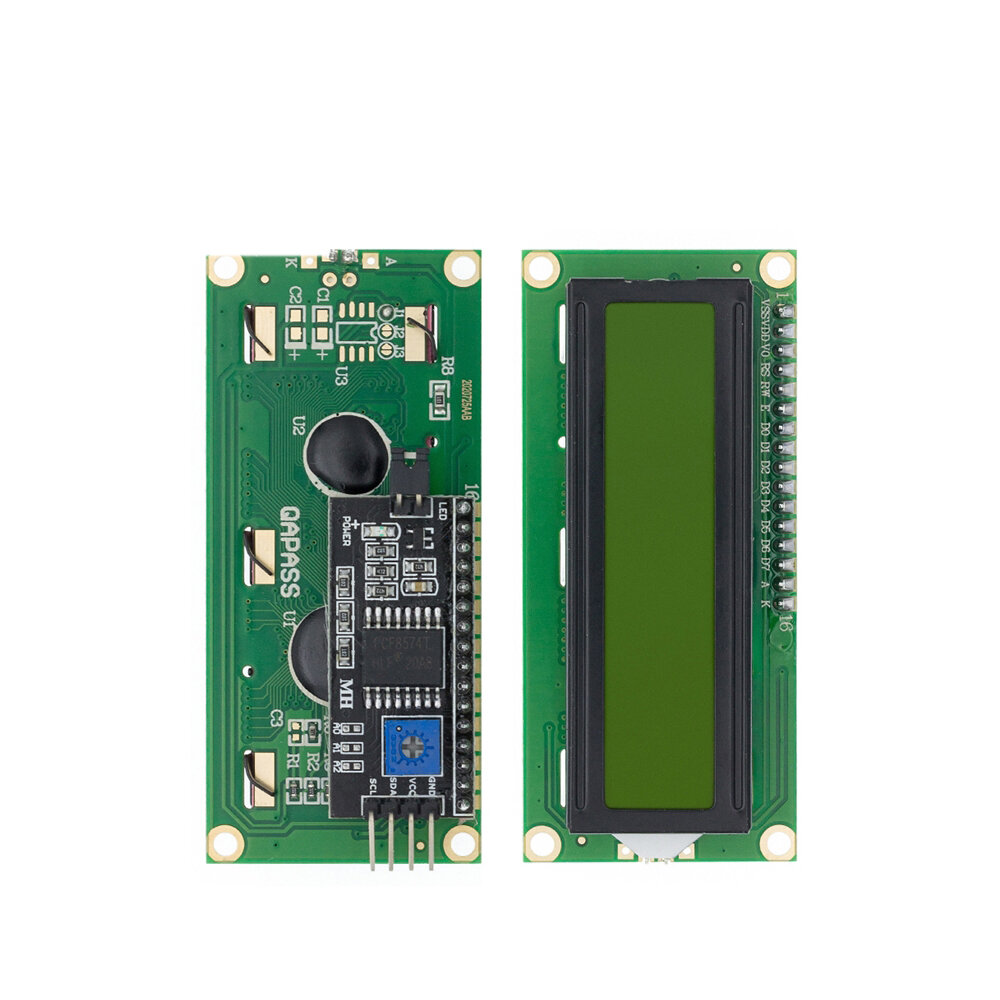

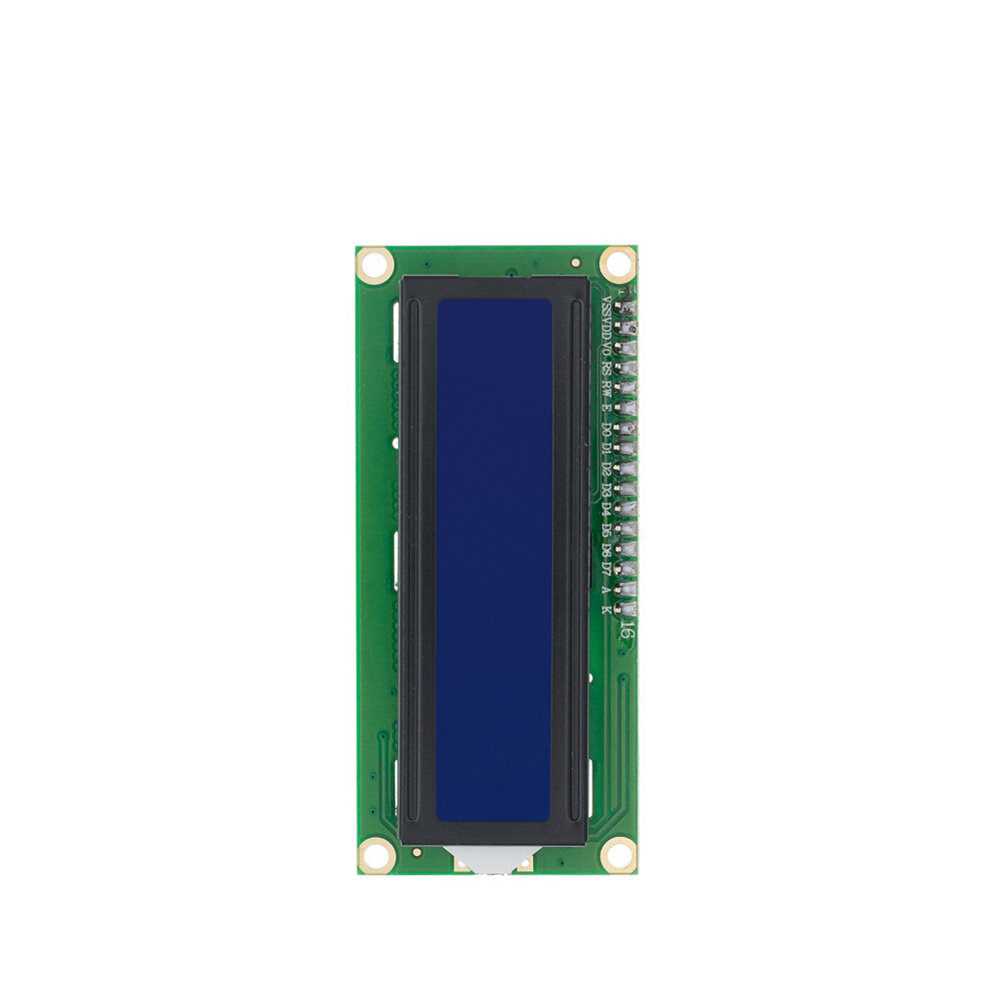

【for 1602 LCD】:LCD display module with blue blacklightWide viewing angle and high contrastBuilt-in industry standard HD44780 equivalent LCD controllerCommonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers andstorage devicesLCM type: CharactersCan display 2-lines X 16-charactersVoltage: 5V DCModule dimension: 80mm x 35mm x 11mmViewing area size: 64.5mm x 16mm

Arduinno 1602 I2C interface 4-wire 1602 screenIO port of Arduinno control board is only 20,so IO ports is not enough for many sensor, SD card, relay modulesThe original 1602 screen need 7 IO ports to drive up, and this module can save 5 IO ports


Package Include:
