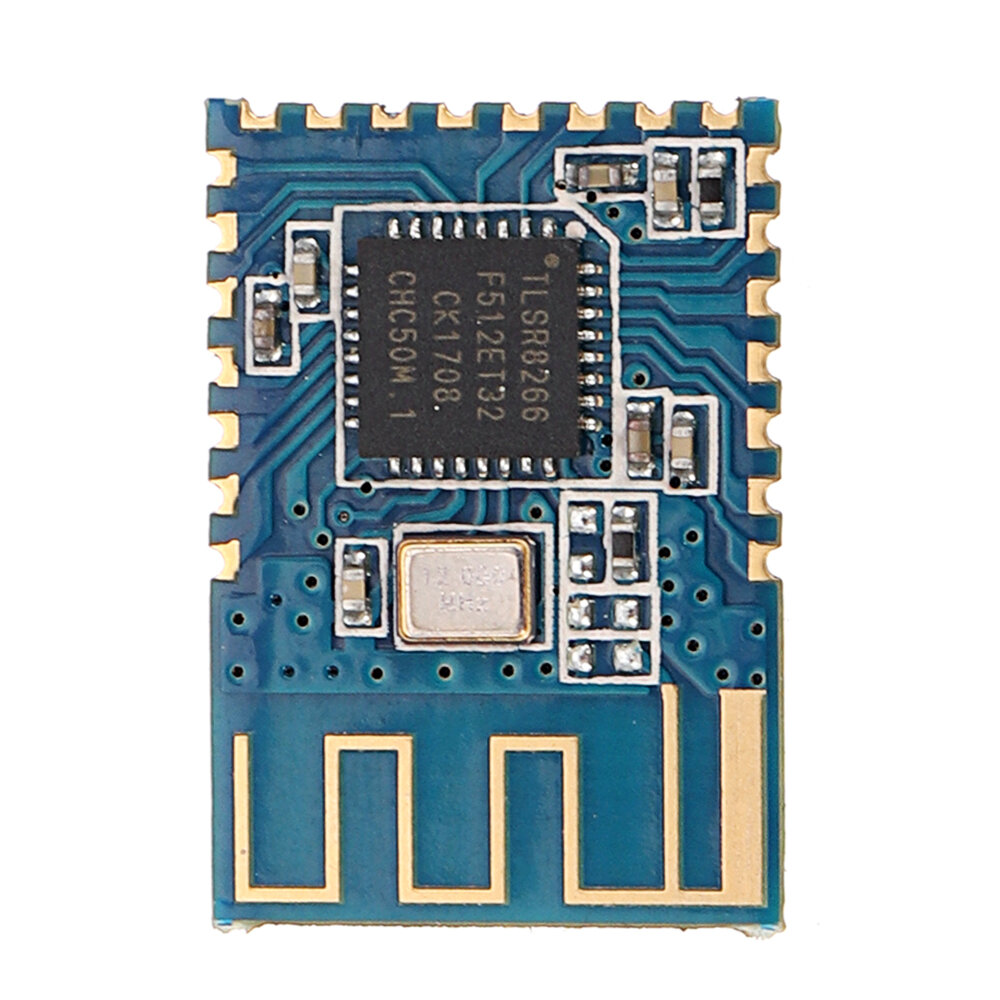

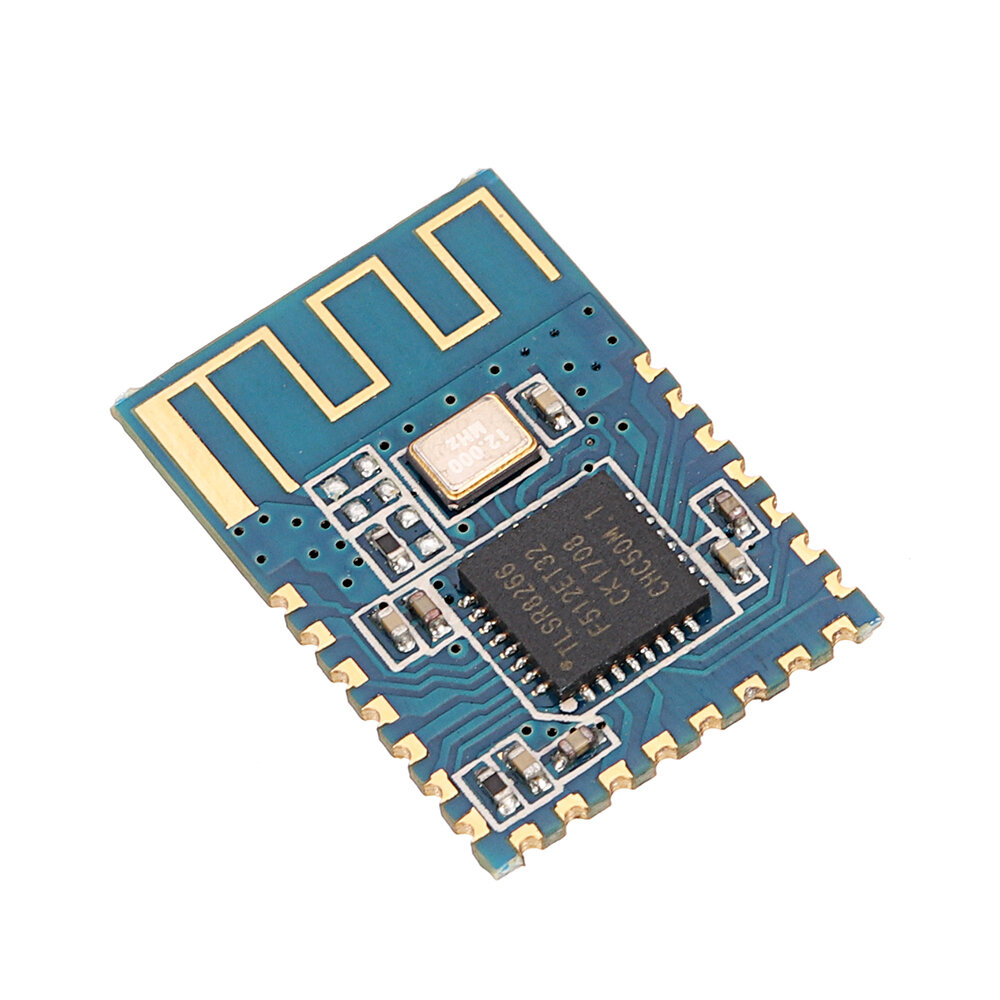

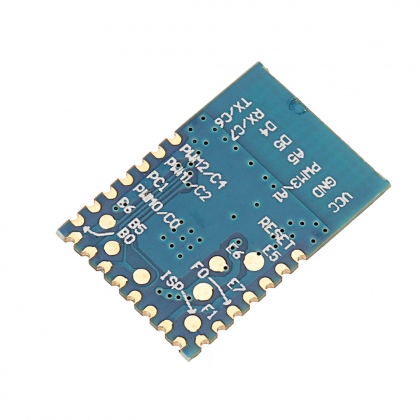

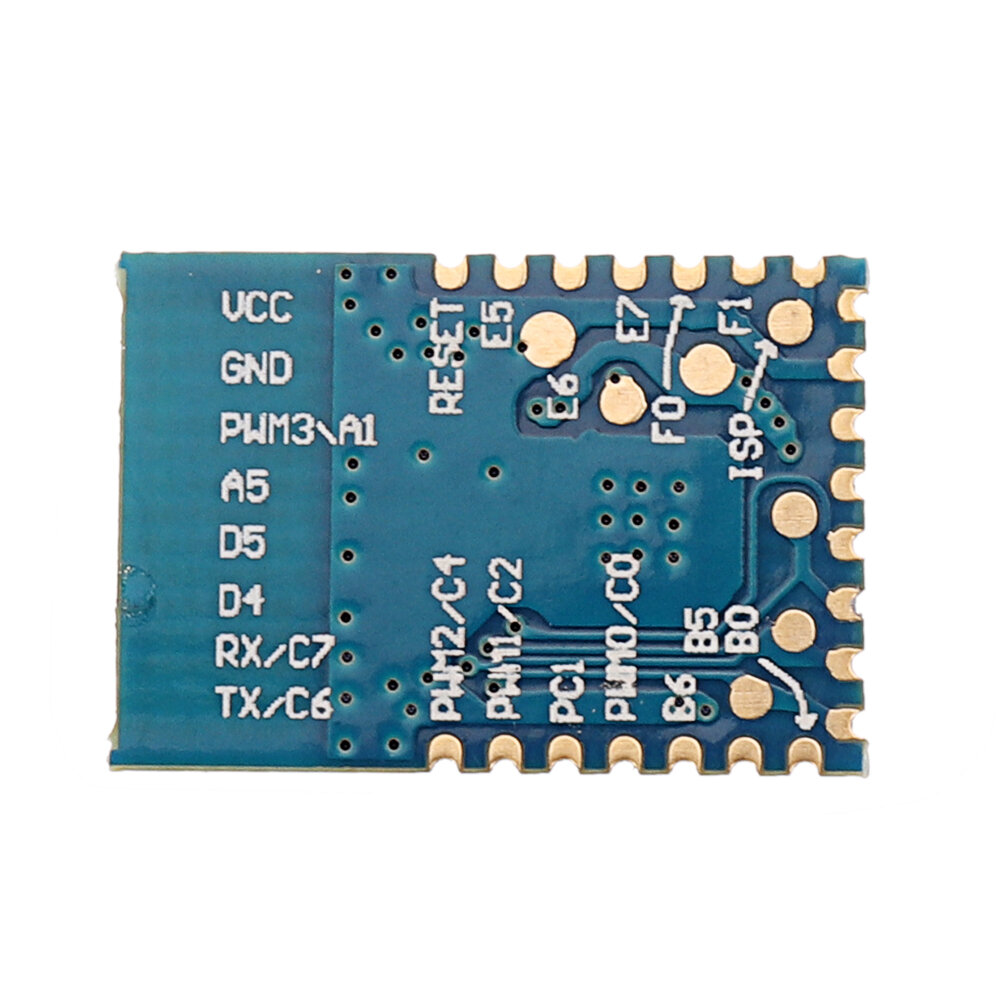

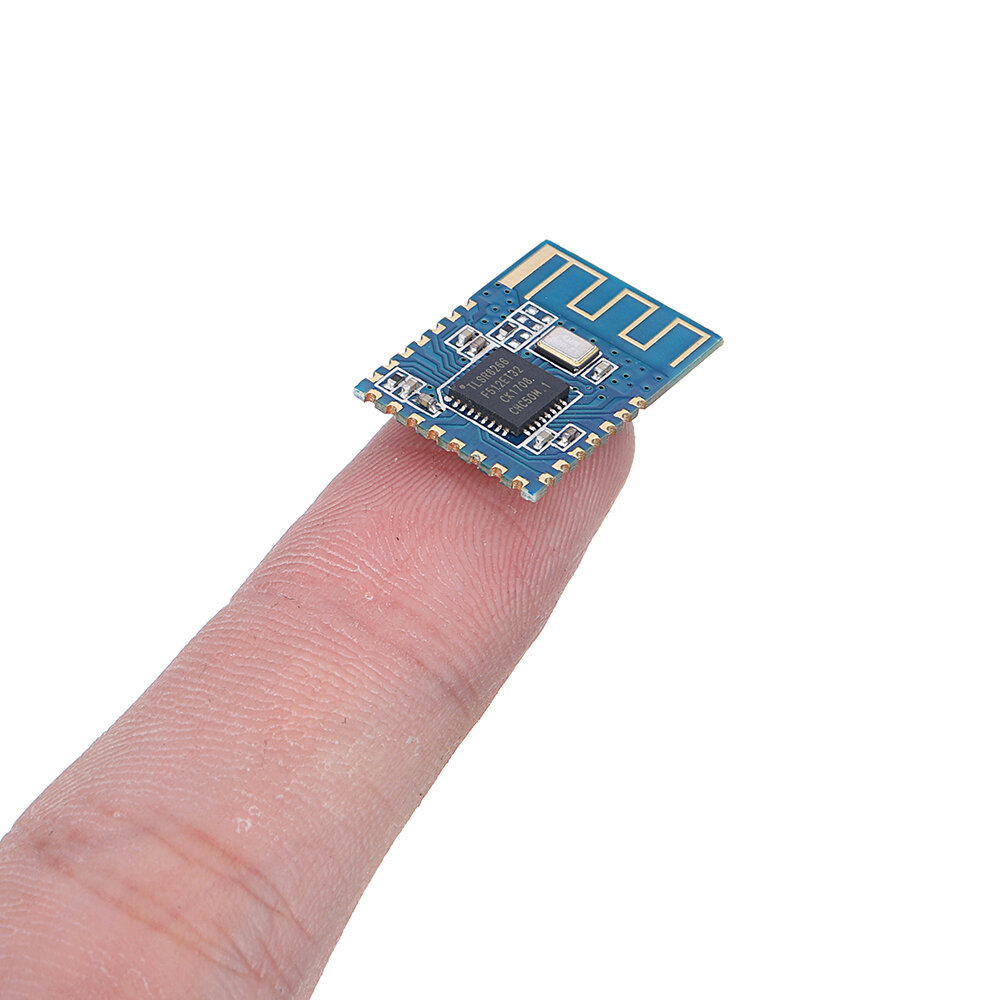

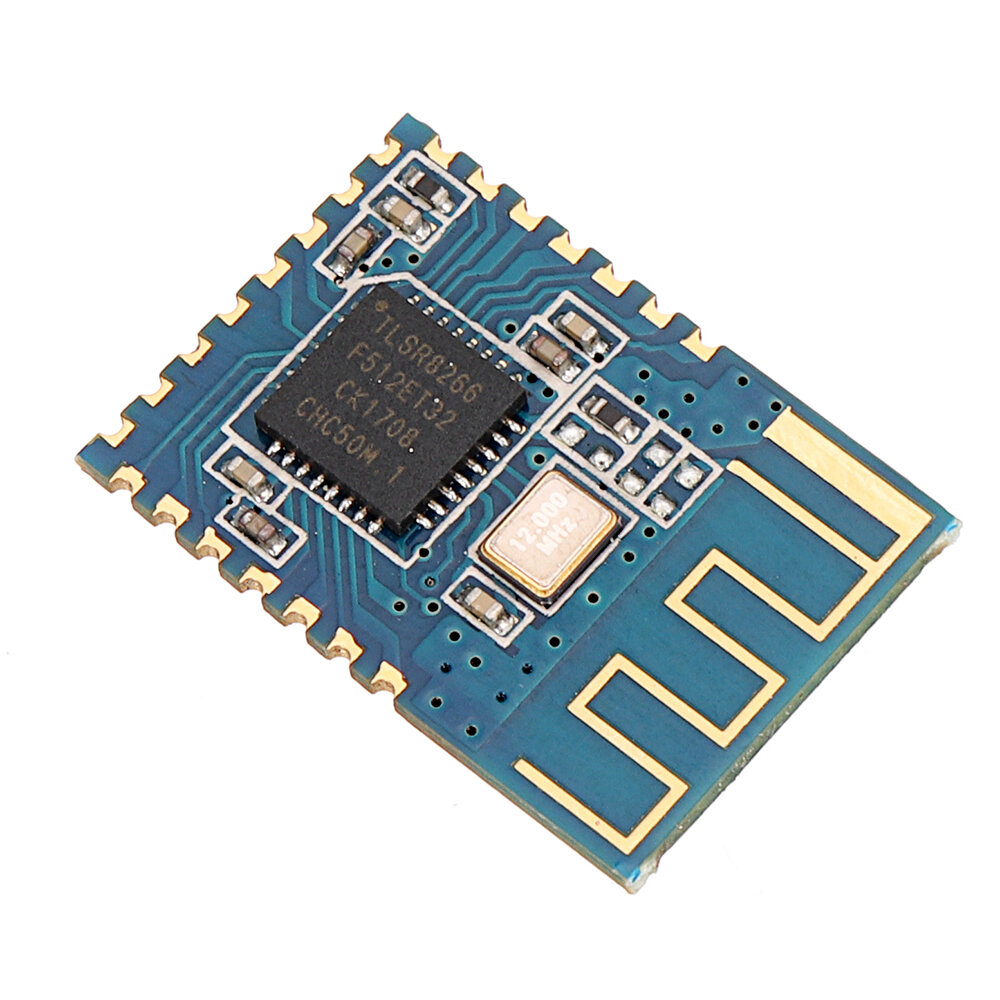

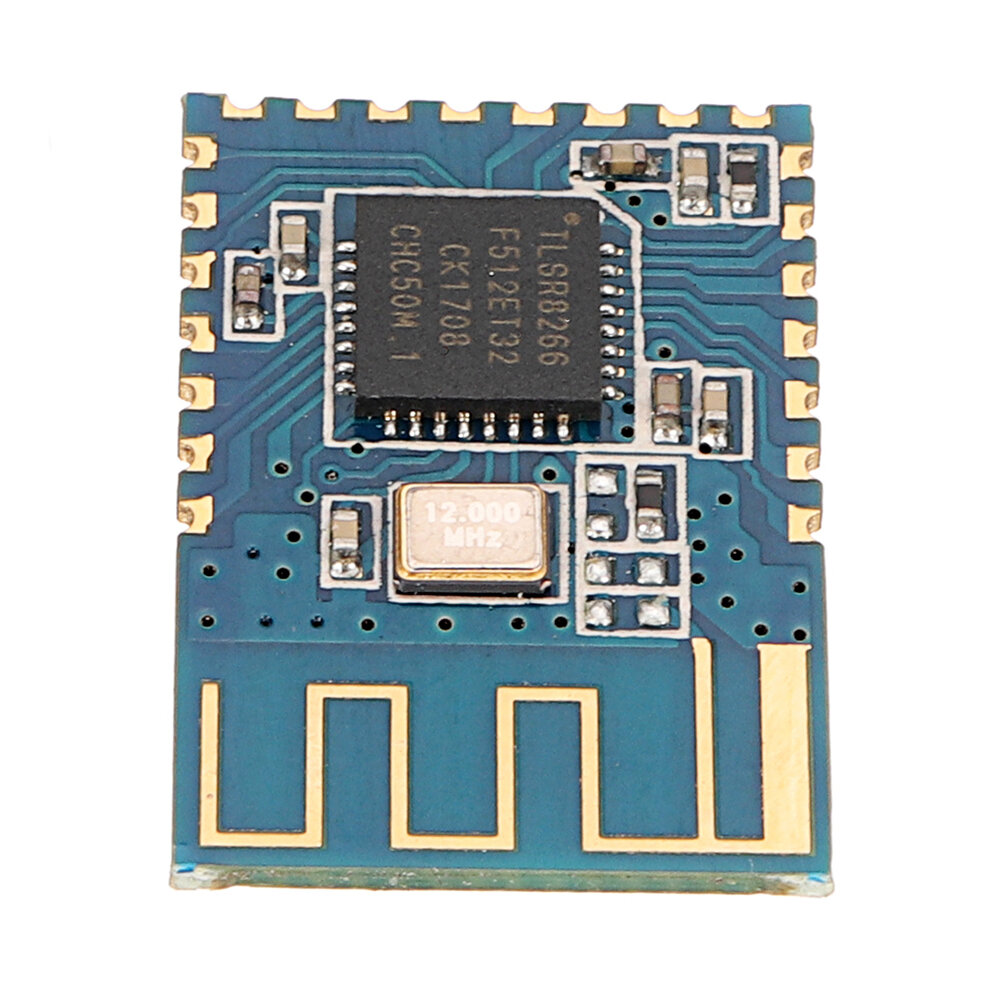

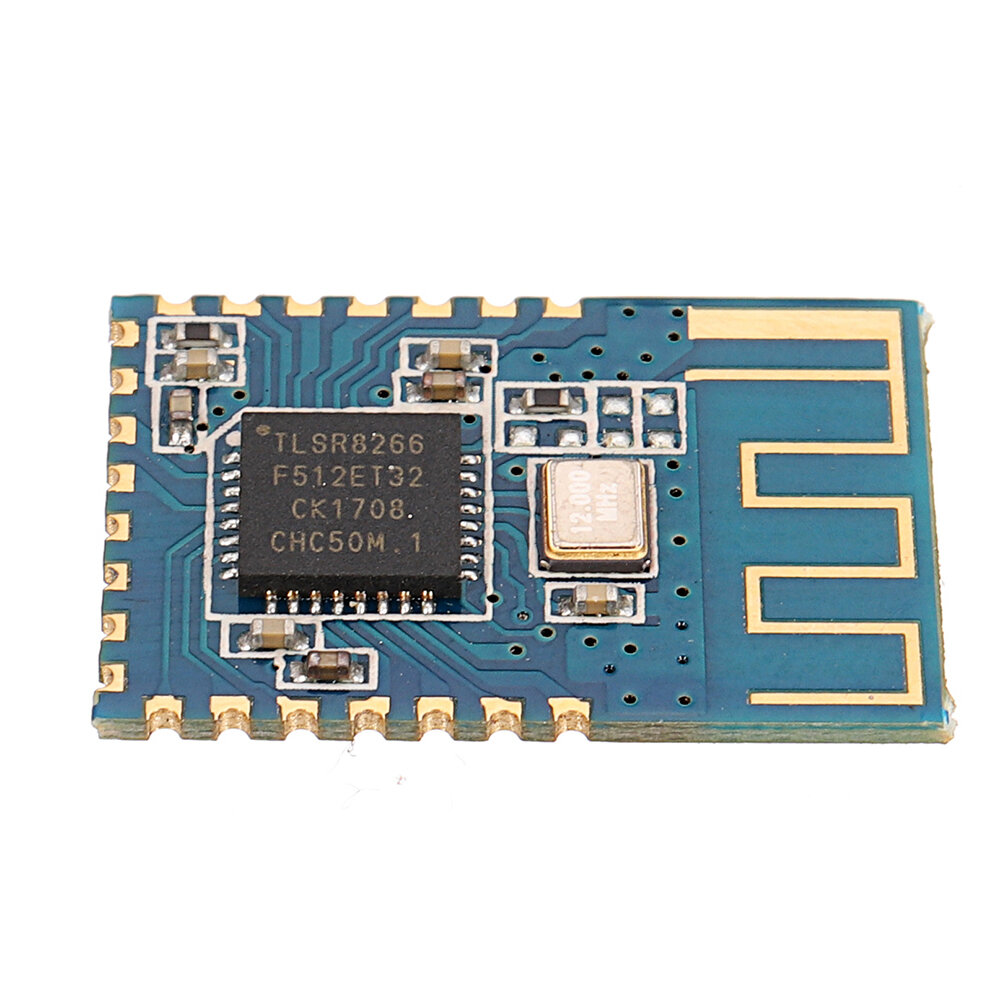

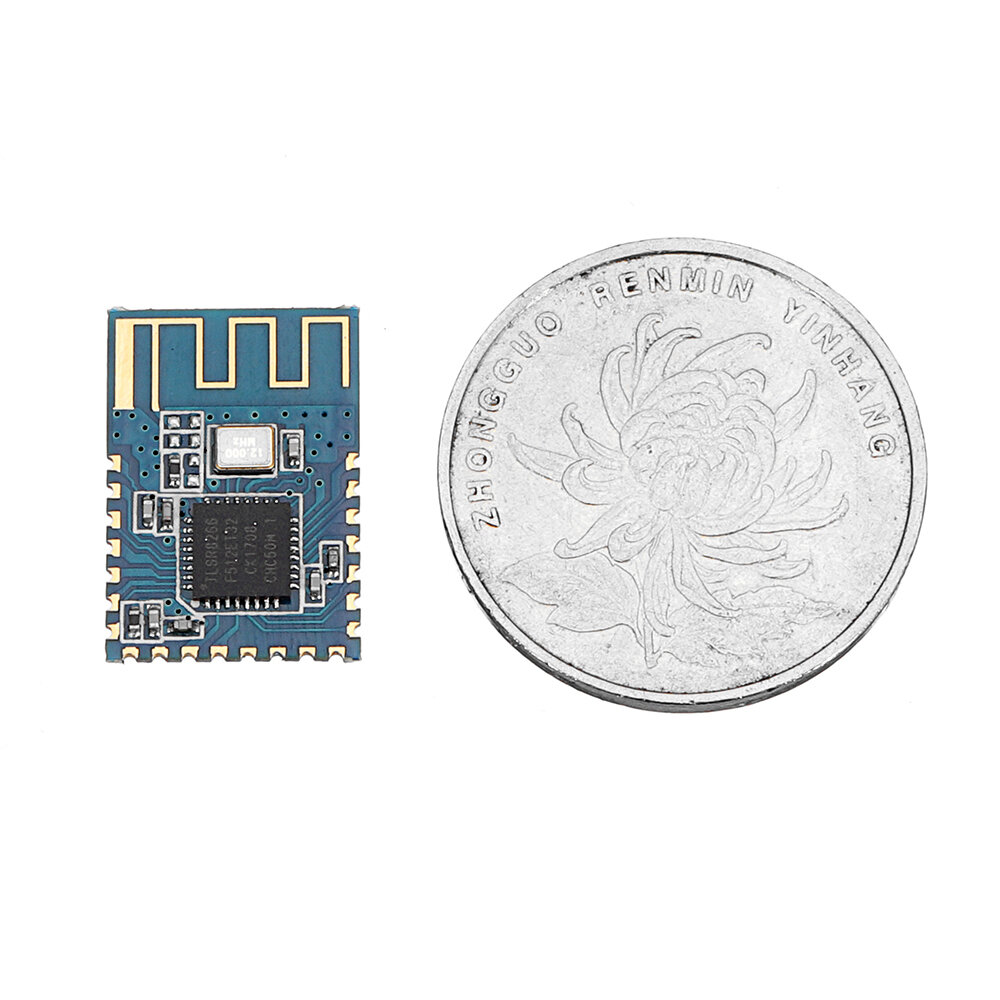

JDY-10 bluetooth 4.0 Module BLE bluetooth Serial Port Module Compatible With CC2541 Slave COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



Kernel: M0

Working voltage: 1.9-3.6V

Working current: 90ua

Module is: bluetooth 4.0 slave





2: Support low power consumption (standby current can reach several uA)

4: Support AT command operation





2: Motor adjustment and other products

4: Sports Health Care

6: Automotive Electronics

Technical specifications:

Type		Specifications
Working voltage		1.9 – 3.6V
Operating temperature		-40 - 85°C
Maximum transmit power		+8dbm
Antenna		PCB onboard antenna
Receiving sensitivity		-92dbm

Factory default configuration:

Service UUID: FFE0

Serial port baud rate: 115200bps

AT instruction set:

Users can communicate with the bluetooth chip through the serial port. The serial port uses Tx, Rx two signal lines, and the baud rate is supported.





When the tooth module is connected to the device, the bluetooth module enters the data transparent transmission mode)

Detailed instructions:

(AT commands are case sensitive and end with carriage return, newline characters: rn)

		Param: version

		Param: MA C address


3. Set the bluetooth name:

command	response	parameter
AT+NAME		Default name: JDY-10

	+POWE:	0: 8db 2: 0db 4: -10db

	OK	Param: (0-7) 1: 57600 bps 3: 19200 bps 5: 9600 bps 7: 2400 bps


6. Set / query - broadcast interval:

command	response	Parameter
AT+ADVINT		0: 100ms 2: 250ms 4: 1600ms 6: 4800ms
