Description:

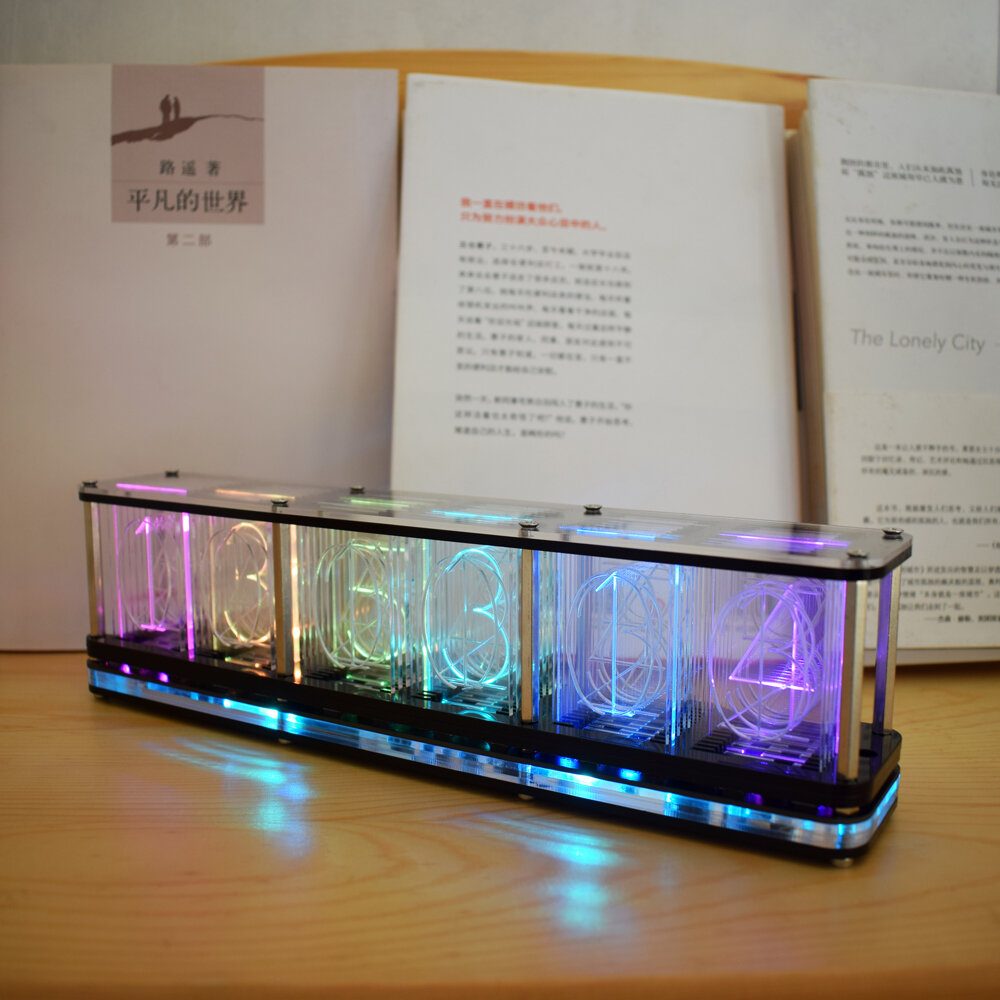

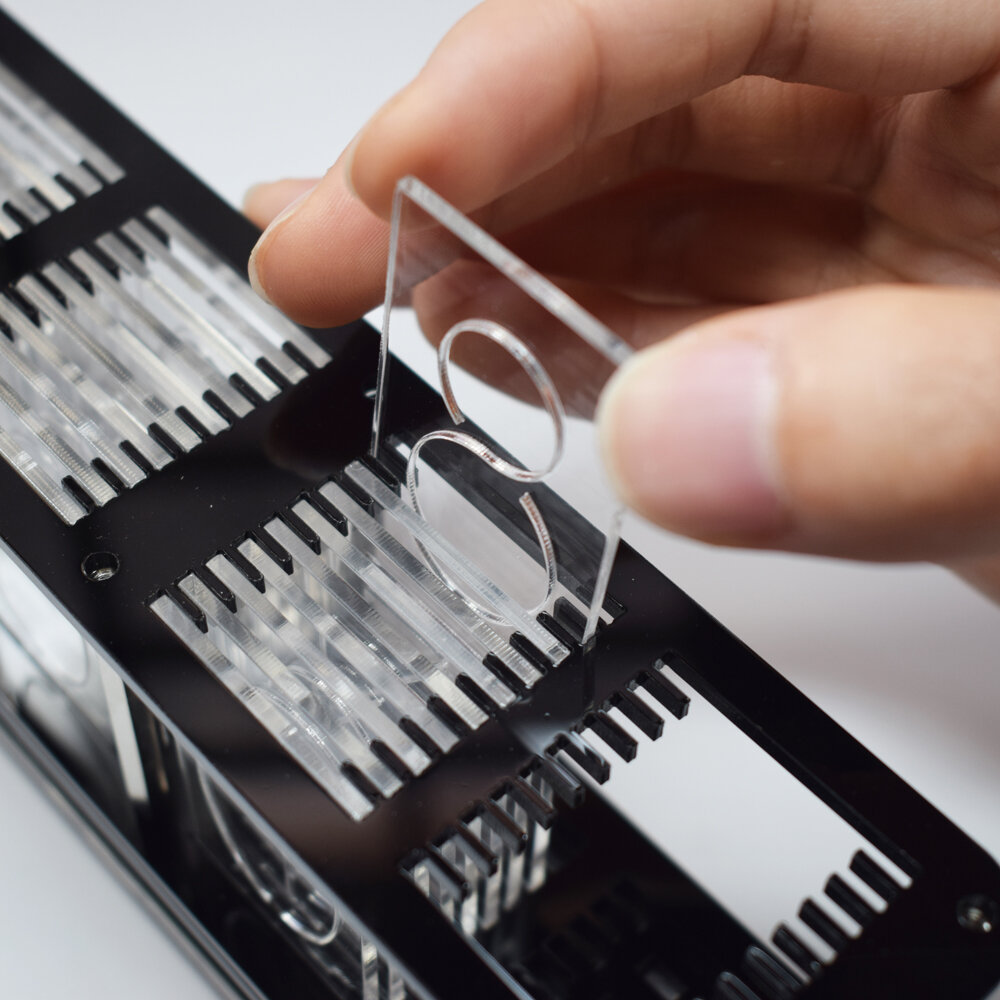

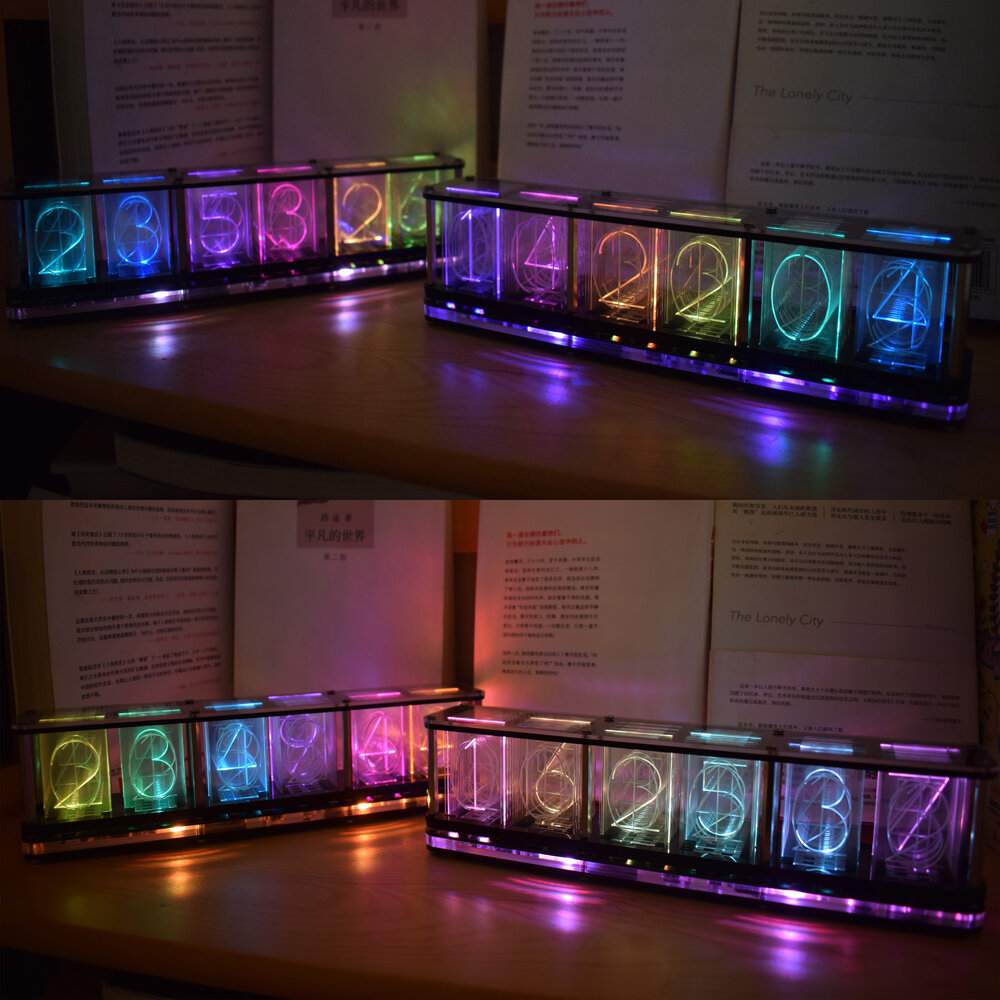

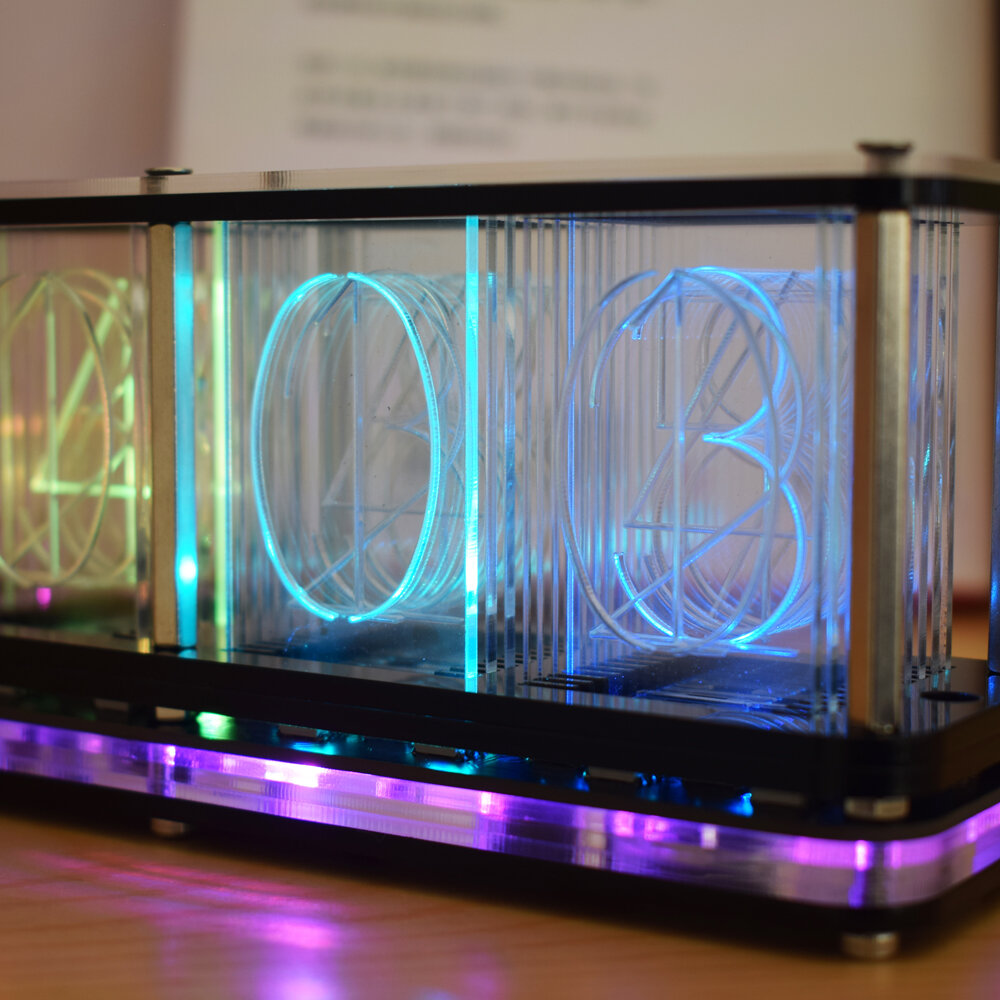

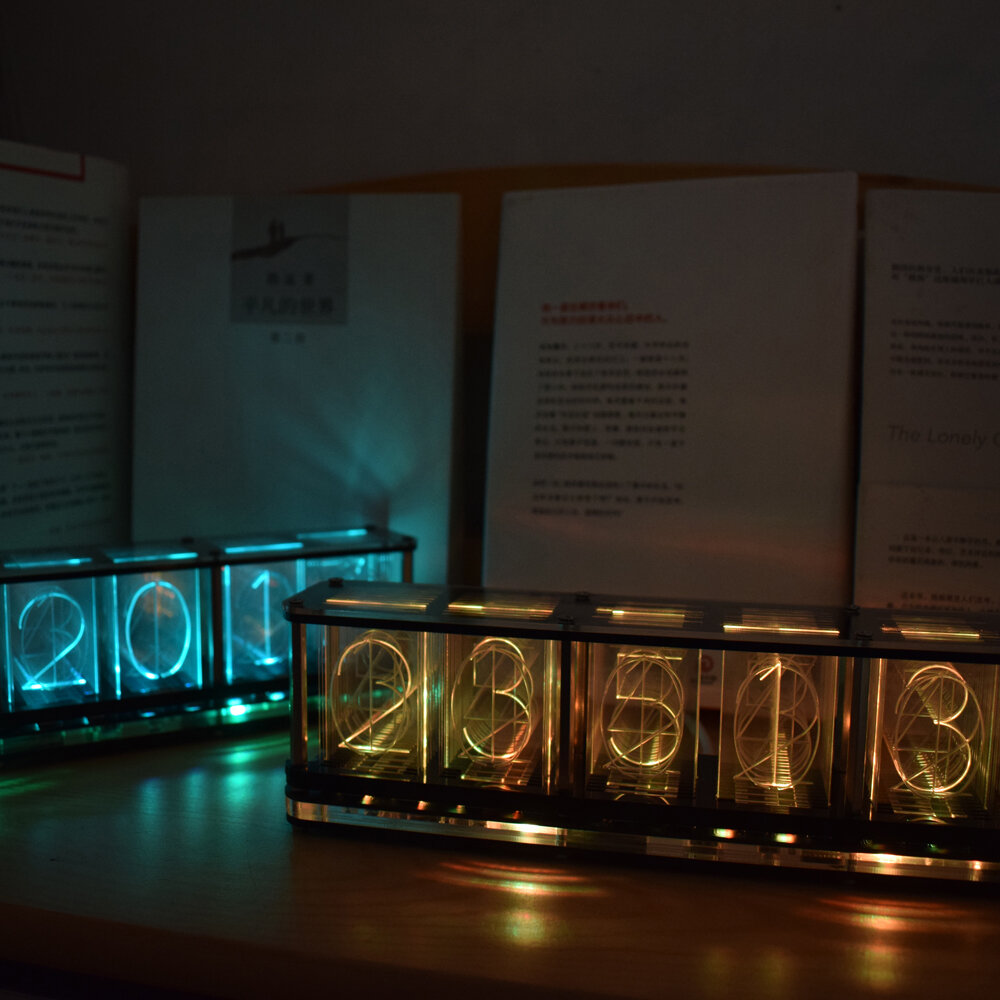

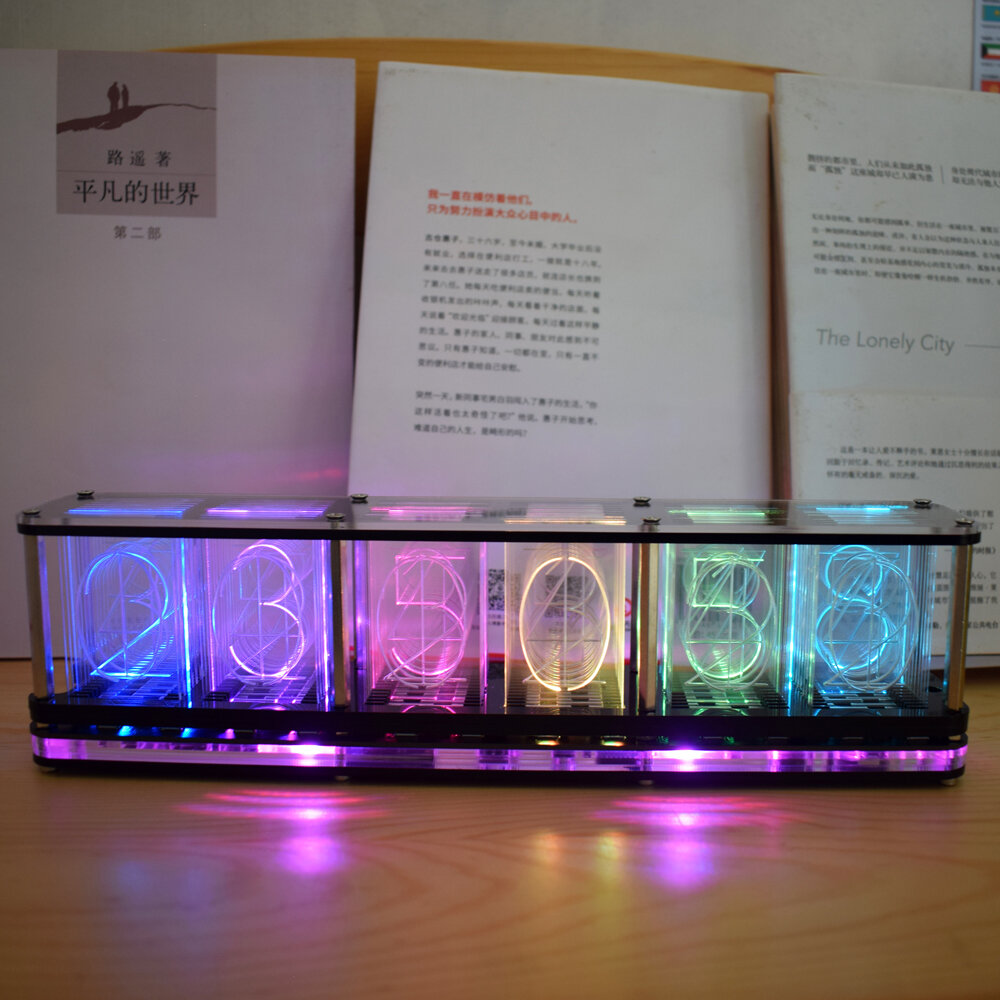

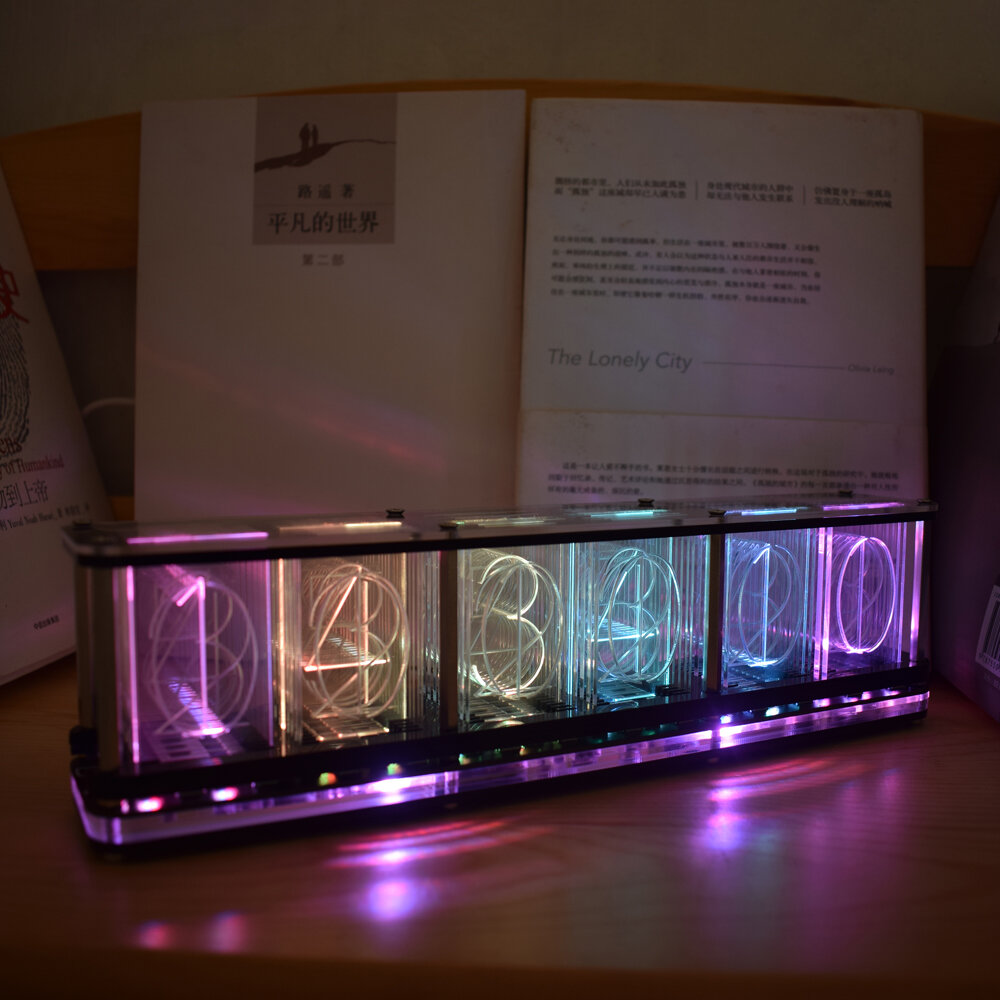

Different numbers are engraved on the transparent acrylic, and then the digital effect is refracted by the bright RGB lamp, which simulates the display effect of the fluorescent tube glow clock. Each number produces different gradient colors, forming rainbow colors and various aurora color effects. A side colored light effect is added at the bottom. There are a variety of time digital display animation effects and multiple switching animations.You can also enter the music spectrum dance effect, place it horizontally at a 90-degree angle, and you can see the dance music beam from the side.The two functions can switch effects and set related setting items with two touch keys.Assembled manual:

Old semi-finished products click to open ID:

1863137

Upgraded version of the parts click to open ID:






In clock mode:

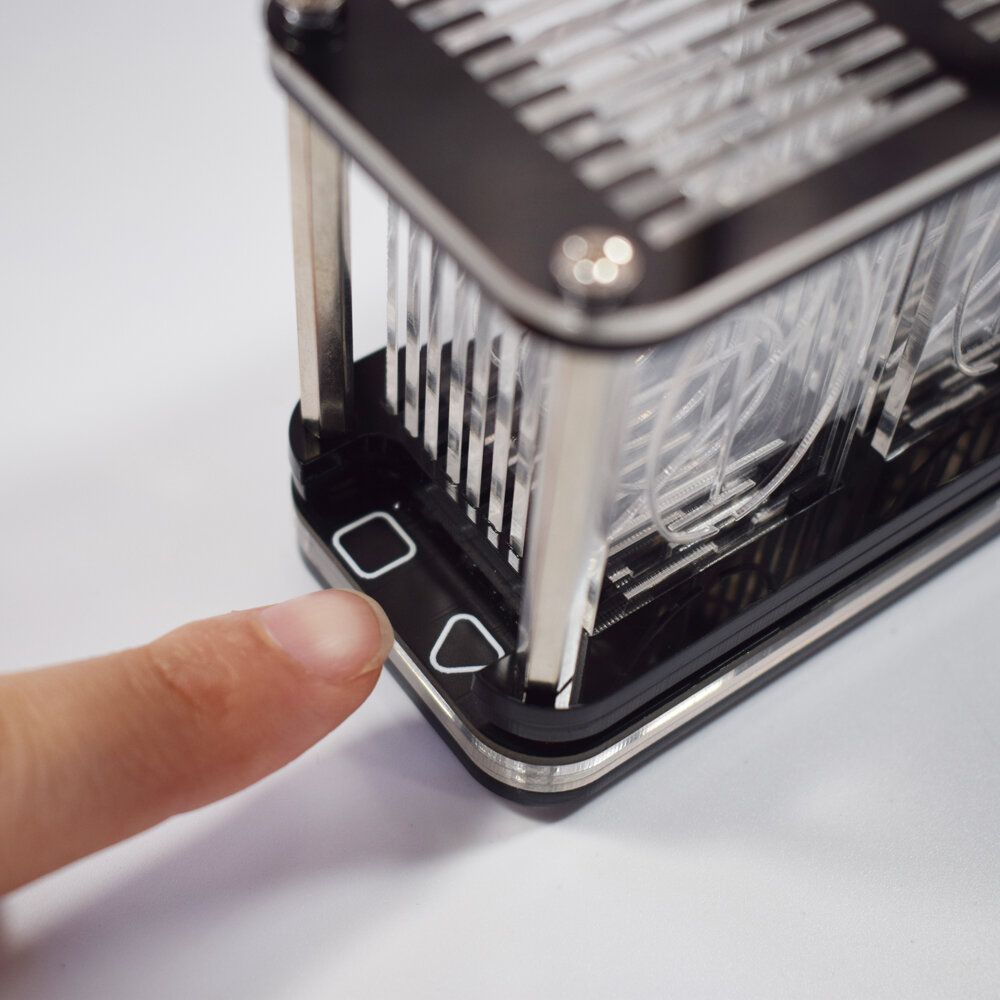

1: Press setting (square icon) + switch touch key (triangular icon) at the same time to enter or exit the menu;2: Short touch the switch key (triangular icon) to switch:[number 0] time setting-[number 1] date setting-[number 2] alarm setting-[number 3] format setting-[number 4] switching effect selection-[ Number 5] Switching duration setting-[Number 6] LED effect selection at the bottom-[Number 7] Switch automatic dimming function-[Number 8] Switch voice-activated wake-up function-[Number 9] Custom number color-[Number 10] Set the hourly and half-hourly chime animation effect-[Number 11] Set the second digital conversion effect-[Number 12] Countdown function-[Number 13] Stopwatch function-[Number 14] Set the color gradation speed.Short press the setting key (square icon) to enter the setting, and then use the switch key (triangular icon) to modify the parameter value.

Switch key (triangular icon) to modify the color value of the flashing number (a total of 17 colors), set key (square icon) to confirm the modified color and enter the color setting of the next number;【Number 10】 Set the hourly and half-hourly chime animation effect:0-[No conversion effect];1- Sweeping effect;2- Fading effect;3- Mixing effect (the hourly chime enters the sweep effect, the half-hourly chime enters the fade effect);【Number 11】Set the digital conversion effect of seconds:0-[No conversion effect];1- Digital progressive effect;2- Digital breathing effect;3- Mixed effect (automatically switch every day);【Number 12】Countdown function:Enter the minutes and seconds, press the set button (square icon) to start the countdown, the countdown ends the buzzer buzzer, and any touch key to exit the countdown;【Number 13】Stopwatch function:Press the switch button (triangle icon) to start timing, press again to halt timing, and press again to reset the timer (maximum timing is 99 minutes, 60 seconds, and 990 milliseconds).Switch key function cycle: start timing-halt timing-timing reset;Press the set button (square icon) to exit the stopwatch function;【Number 14】Set the color gradient speed:Seven level settings 1-7: from fast to slow;
In music spectrum mode:
Short press the setting key (square icon) to halt the color change at any time, so that the favorite color can be displayed fixedly;Short press the switch key (triangle icon) to switch between different color gradient effects;Enter the music spectrum mode, you only need to put out the music playback device (mobile phone, speaker, MP3 player, etc.) to display the music spectrum dance effect, the effect is better when placed on the back of the microphone
