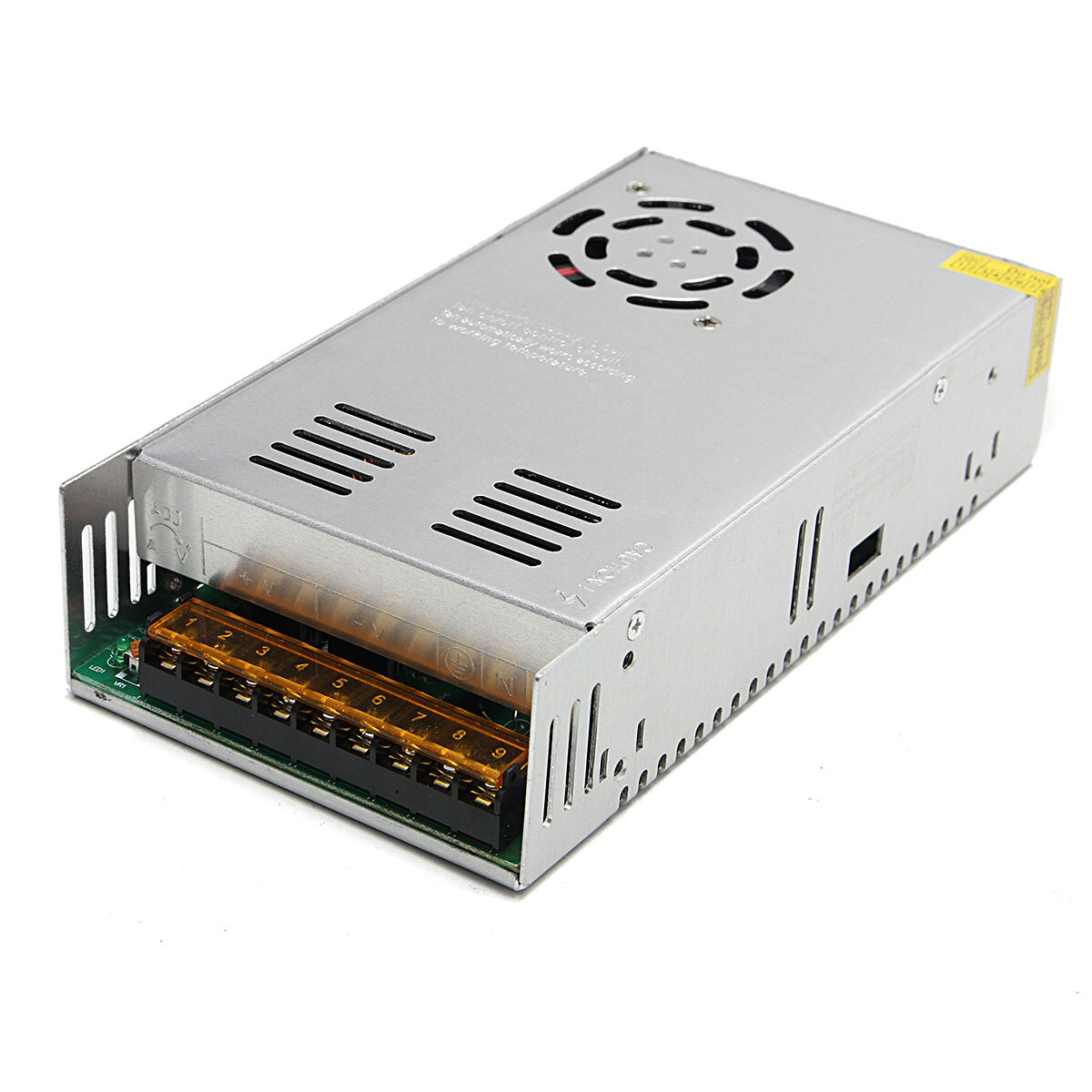

Geekcreit® AC 110-240V Input To DC 24V 17A 400W Switching Power Supply Driver Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Imported components, high reliability. Built-in WMI filter, anti-jamming performance. DC ripple is small, high efficiency. Design soft-start circuit, AC surge current limit. Low operating temperature and long service life. Wide input voltage range, in line with global standards. Insulation performance, high electrical strength. With short circuit, overload, overvoltage, protection.

Shell Material: Metal case / Aluminum base Protection: Shortage Protection, Overload Protection, Over Voltage Protection Widely used in Industrial automation, LED display, communications, etc. Safety Compliance: CCC/ FCC / CE Size: 215 x 115 x 50mm Input Voltage: AC110V or 220V Output Voltage: DC24V,17A(16.7A) Rated power: 400W Working Temperature: -10~50℃

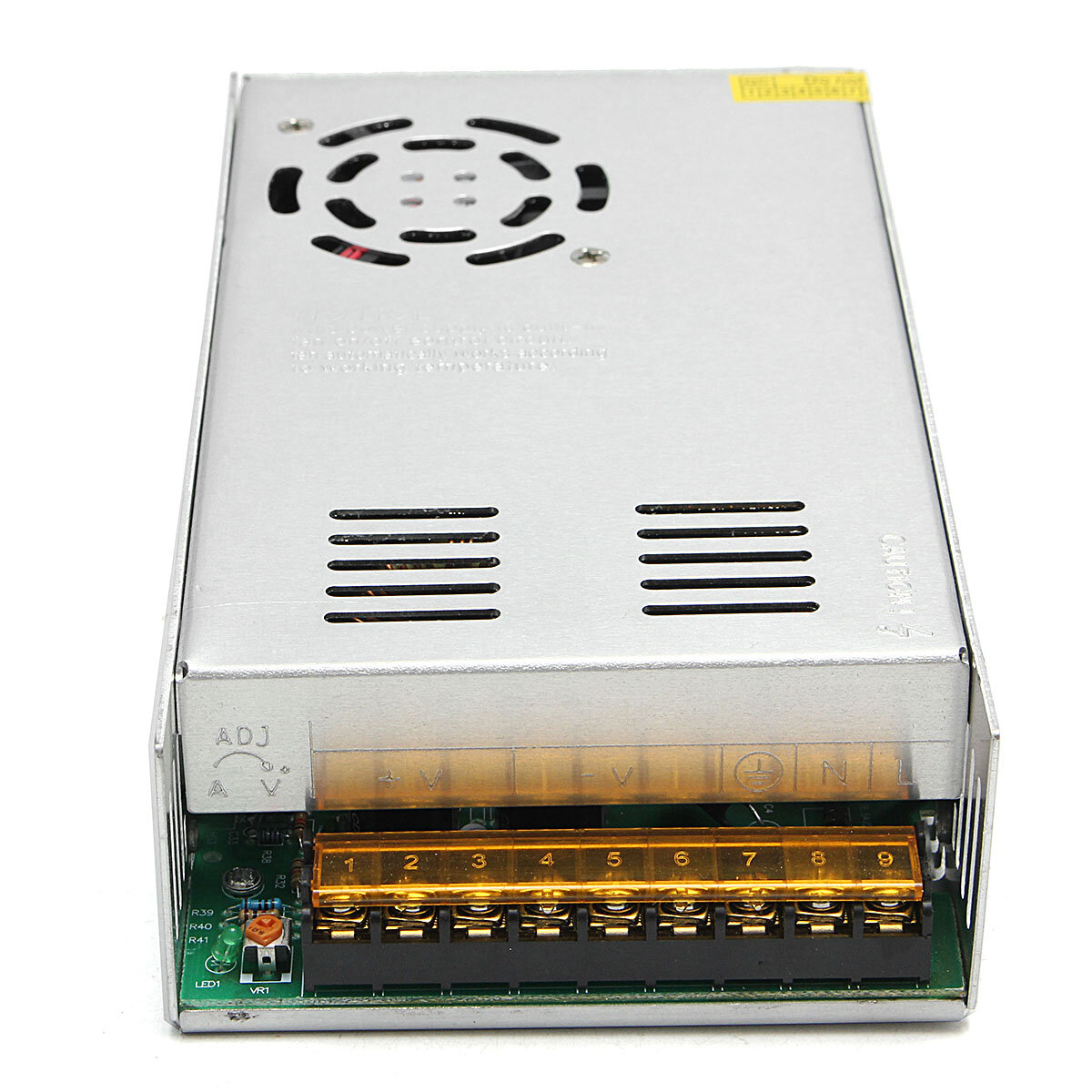

1) metal shell power wire and the shell is generally connected with the ground (FG), with a reliable grounding to ensure safety, not mistakenly connected to the shell on the wire. 2) Before commissioning, please check and verify the wiring on the terminals again to ensure that the input and output, AC and DC, single-phase and multi-phase, positive and negative voltage and current values, Before running. For a high-power power supply, generally have three or more than three "+" input terminals and "-" output terminals, in fact, they belong to an output polarity, just for the convenience of users.

1 x Switching Power Supply
,,,
