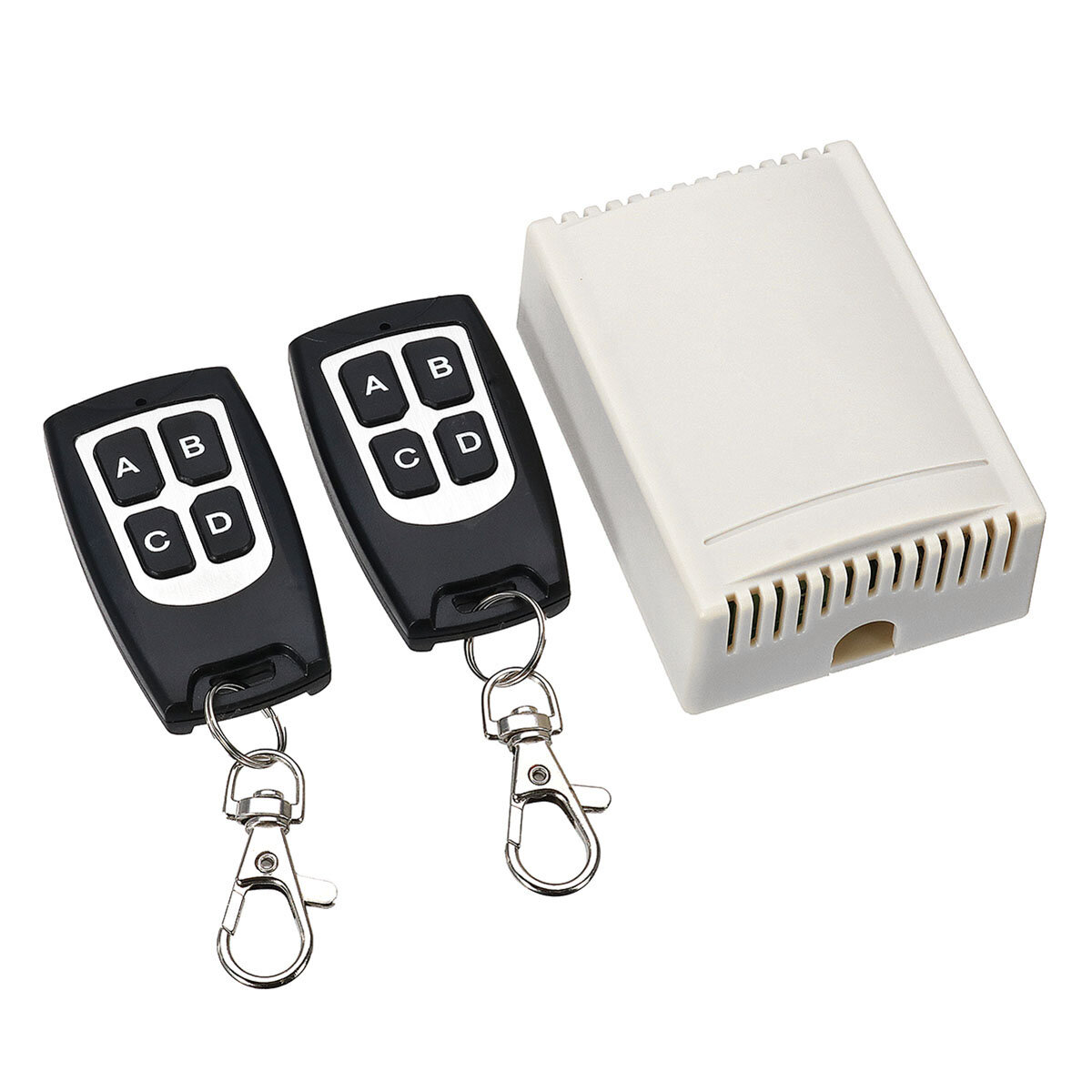

Geekcreit® 12V 4CH Channel 433Mhz Wireless Remote Control Switch With 2 Transmitter COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Note: If you need more transmitter, please search
Features:
It is a learning code wireless remote control switch (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter. It has 4 Relays which can make the equipment turn or reverse, on/off and so on come true. The volume is small and the performance is stable and reliable, high receive sensitivity.





Jog: press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one buttons remote control). Self -lock:press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control). Inter-lock: press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control).

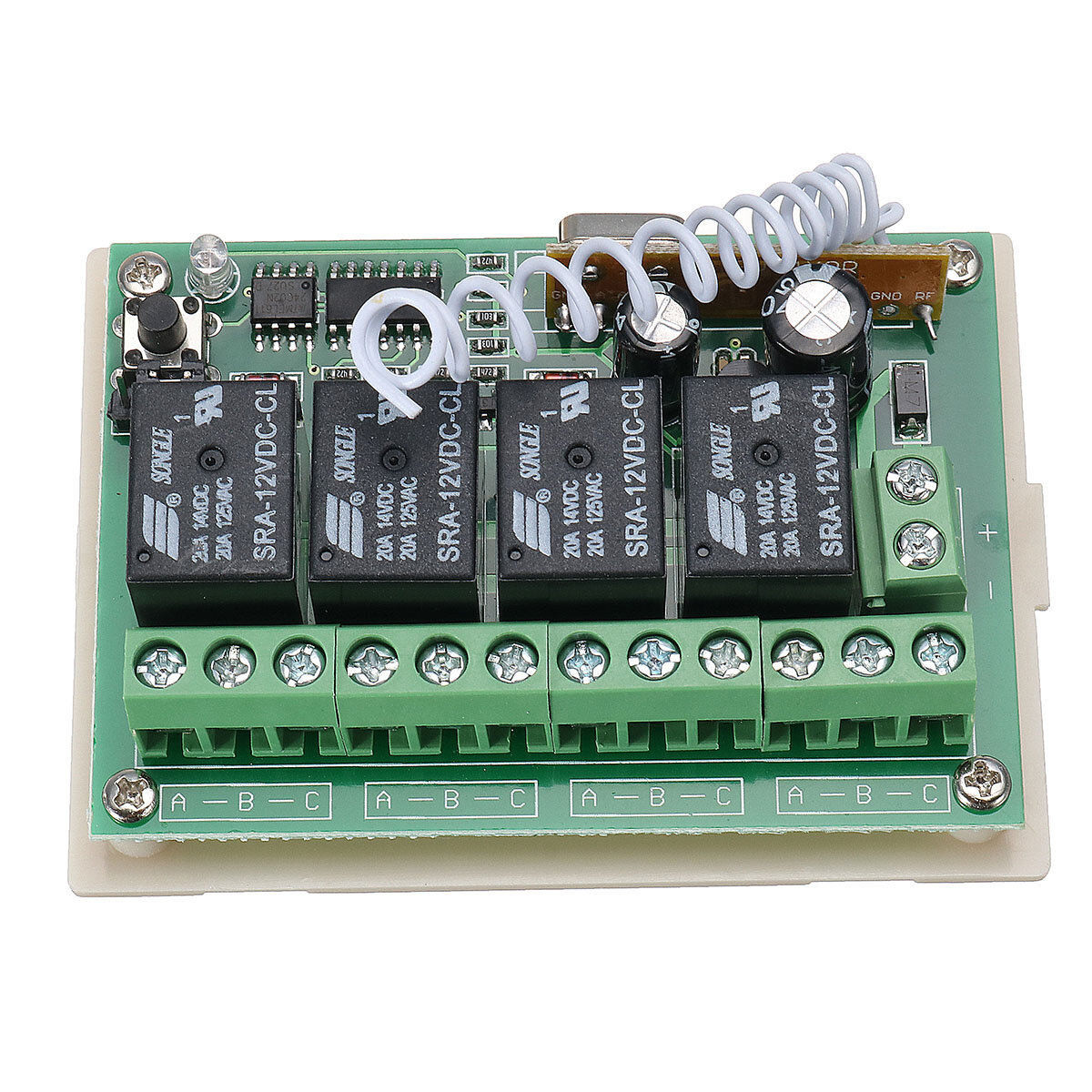

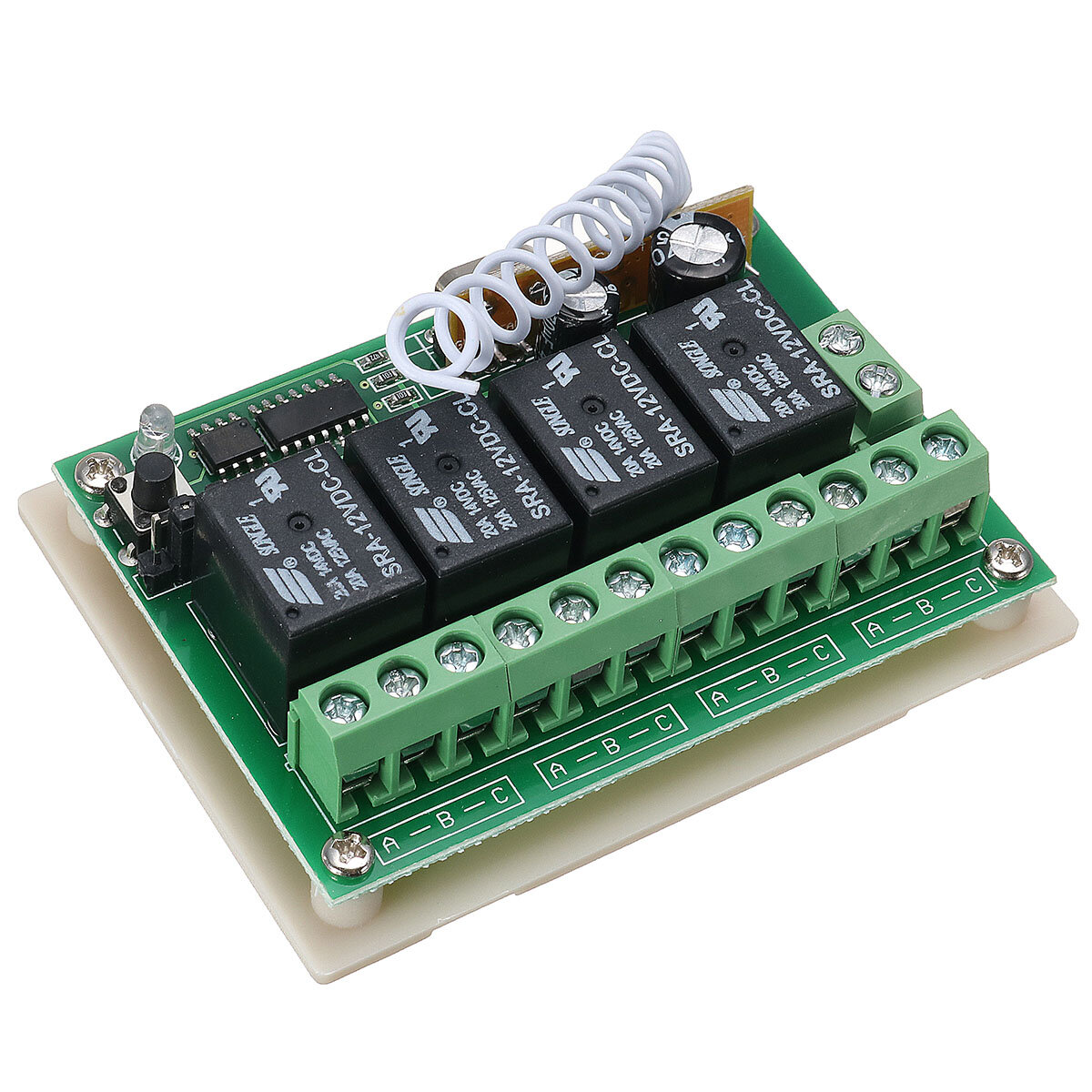

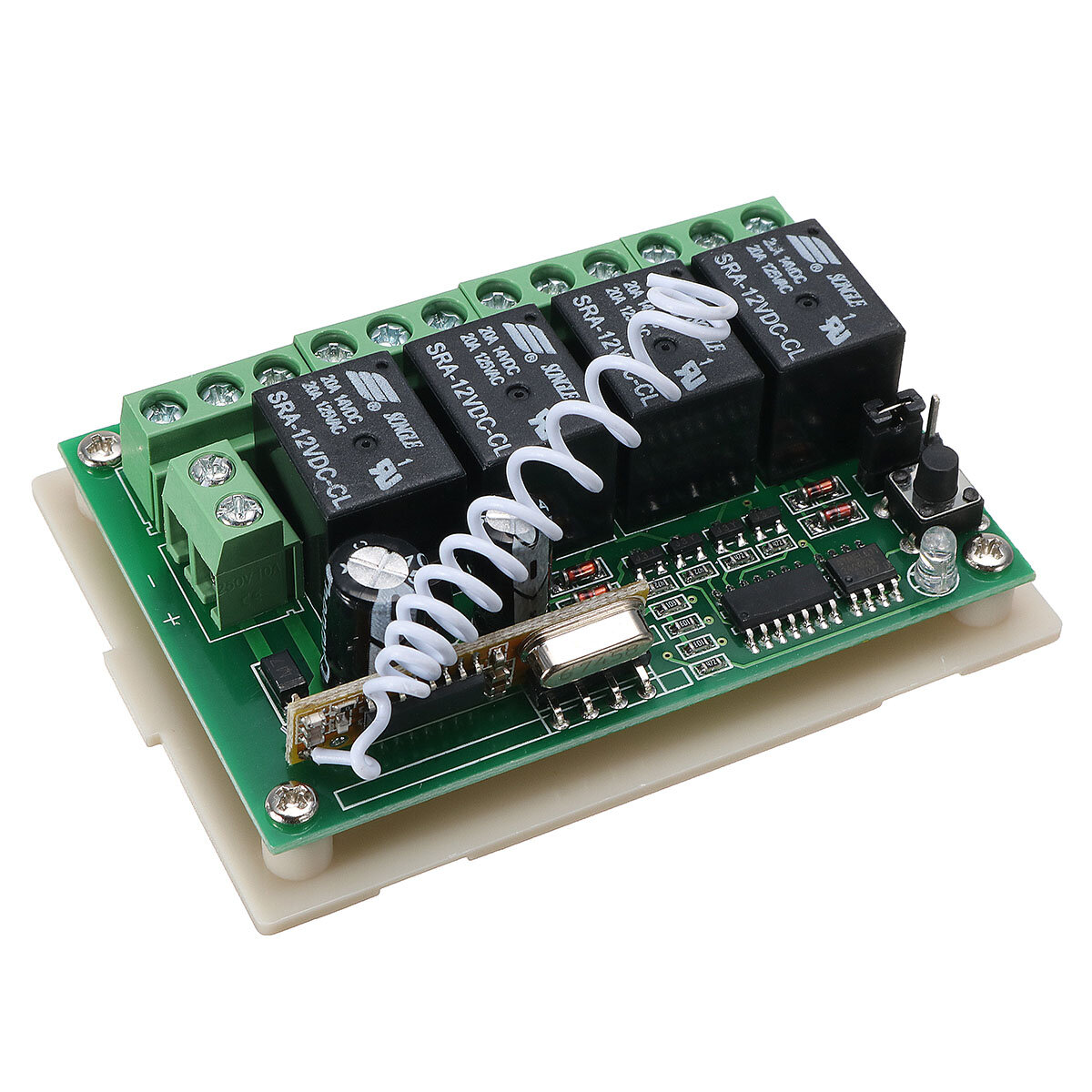

Receiver:
1. Working voltage: DC12V 2. Quiescent condition: Less than 6mA 3. Working temperature: -40°c+80°c 4. Receiver sensitivity: more than -105dBm 5. Working frequency: 433mhz 6. Output voltage: DC and AC is optional 7. Output current: Less than 3A 8. Max load current: 10A 9. Dimensions: 72 x 52 x 26mm

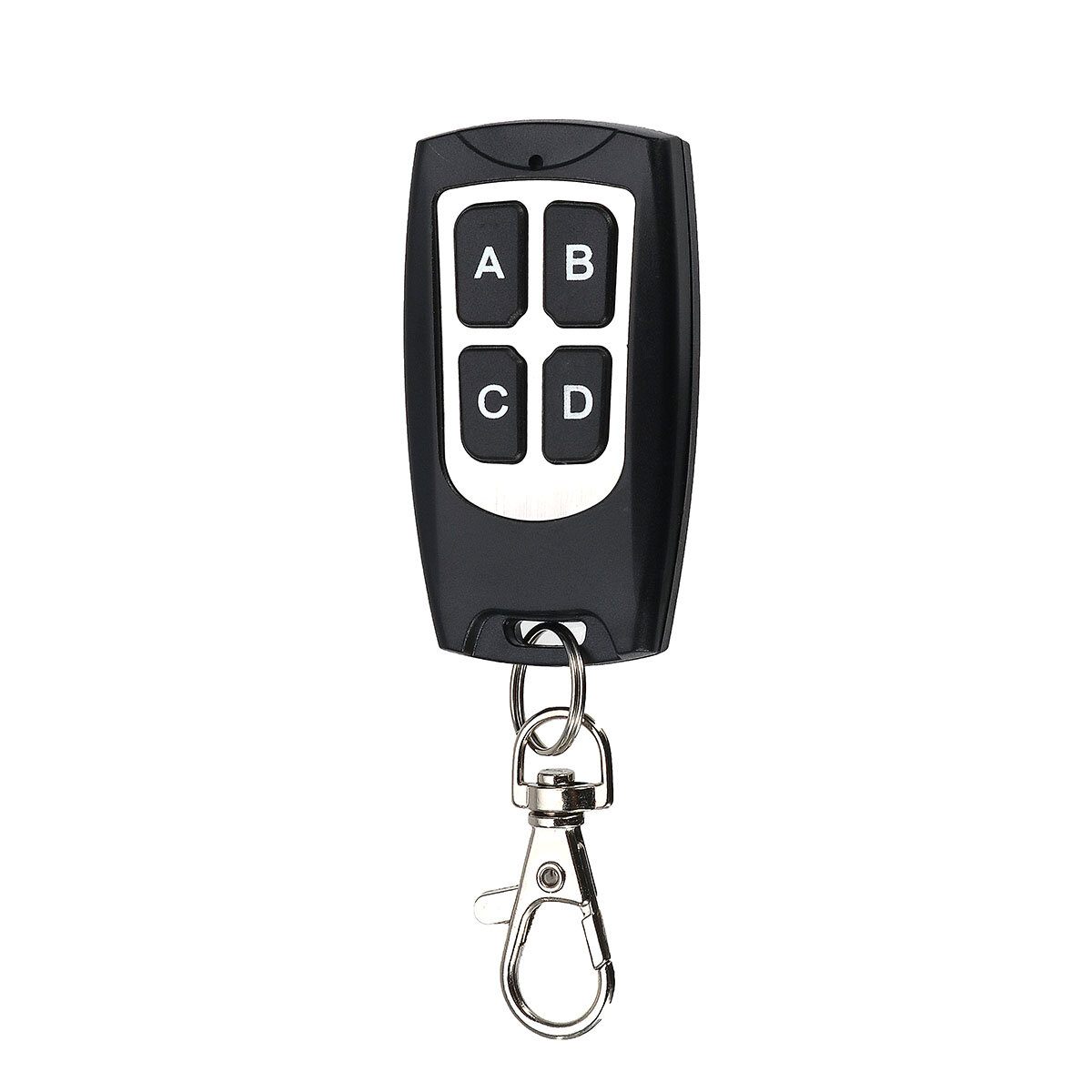

Remote control transmitter:
1. Remote Distance: 200M 2. Operating Voltage: DC 6V 3. 4. Operating Current: 13 mAh 5. Code Type: Fixed code / Learning code 6. Dimensions: 58 x 39 x 14mm 7. Used battery type: 2016 button battery
