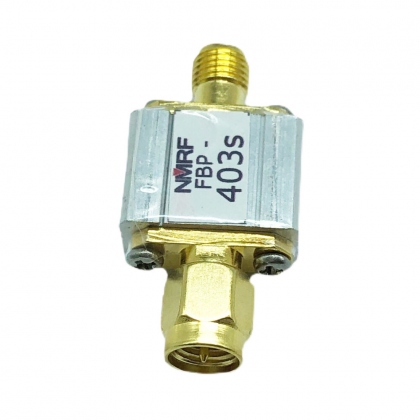

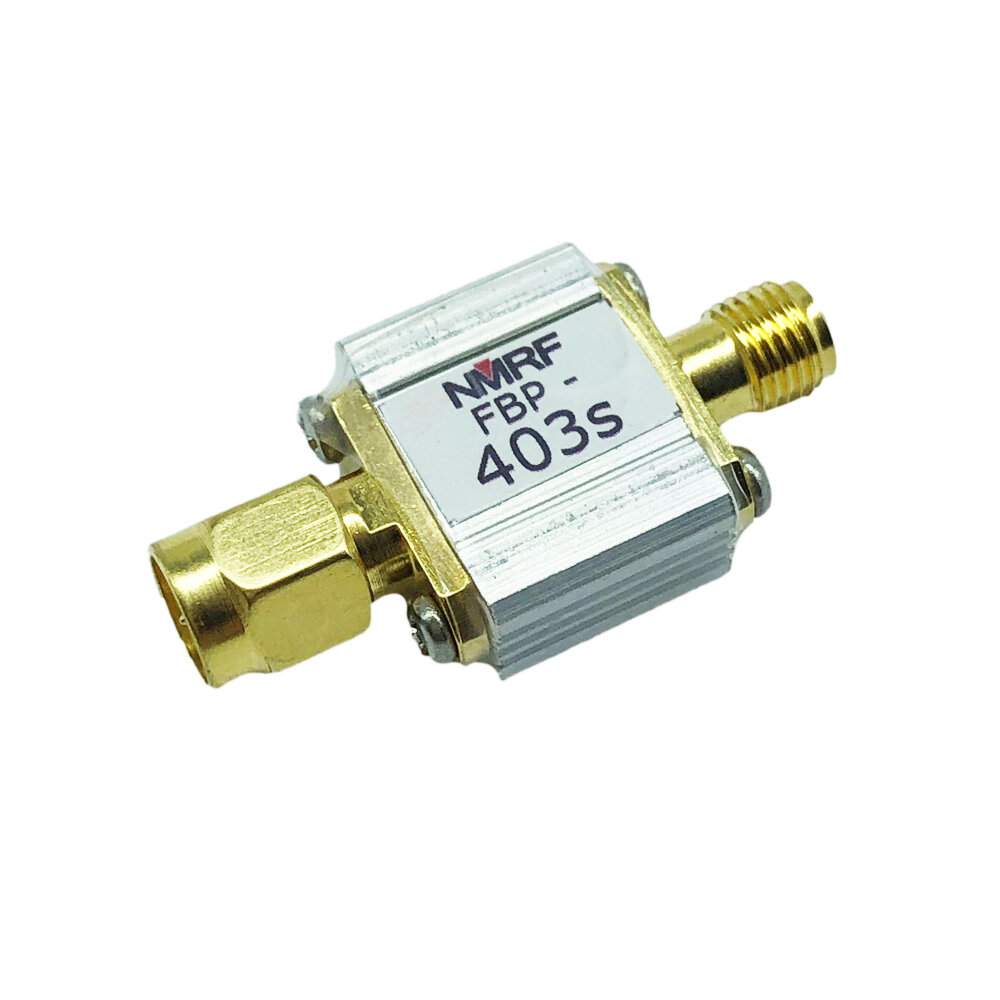

FBP-403s 403MHz SAW Bandpass Filter Band Pass Filter 1dB Bandwidth 4MHz for HAM Radio Amplifier Receiver COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Feature:
The filter has low insertion loss and steep cut-off characteristics. It is specially designed for the performance optimization of 403MHz receiving equipment. It can effectively filter out out-of-band signals, reduce noise and increase dynamic range. This product is made of ultra-thin PCB board, which still has excellent restraint ability to the out-of-band remote signal, and its performance is much better than that of the products made of bare PCB board. The product is made of aluminium alloy shielding shell with anti-interference, no stray response outside the band, compact and firm, and easy to use.
Specification:
Model: FBP-403sImpedance: 50 OhmsCentral frequency: 403 MHzPassband: 400-406 MHzInsertion loss: <2.5dB@401-405 MHzMaximum load capacity: 100mW (20 dBm)Frequency response diagram:
Package includes:
1 x Bandpass Filter
