ESP32-S3 Microcontroller 240MHz dual-core Processor 2.4GHz WiFi Bluetooth Communication GPIO Pin Development Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Processor: ESP32-S3R2 with Xtensa 32-bit LX7 dual-core processor, up to 240MHz

Wireless Connectivity: 2.4GHz Wi-Fi and Low-Power bluetooth (bluetooth LE) dual-mode wireless communication with superior RF performance

Power Management: Integrated DC-DC chip MP28164 for efficient voltage regulation (up to 2A load current)

Peripheral Interfaces: Full-speed USB OTG, SPI, I2C, UART, ADC, PWM, DVP (8-bit to 16-bit camera interface), LCD interface (8-bit to 16-bit parallel RGB, 18080, MOTO6800), and more

Low-Power Modes: Supports various low-power operating modes for adjusting communication range, data rate, and power consumption balance to meet different application power requirements





2. Ample Memory: Offers integrated memory including 512KB SRAM, 384KB ROM, 2MB PSRAM, and 16MB Flash storage for data and program storage needs.

4. Versatile Interfaces: Features multiple GPIO pins and various peripheral interfaces like USB, SPI, I2C, UART, ADC, PWM, camera, and LCD interfaces, enabling flexibility for various projects.

Package Include:

1x Module Board

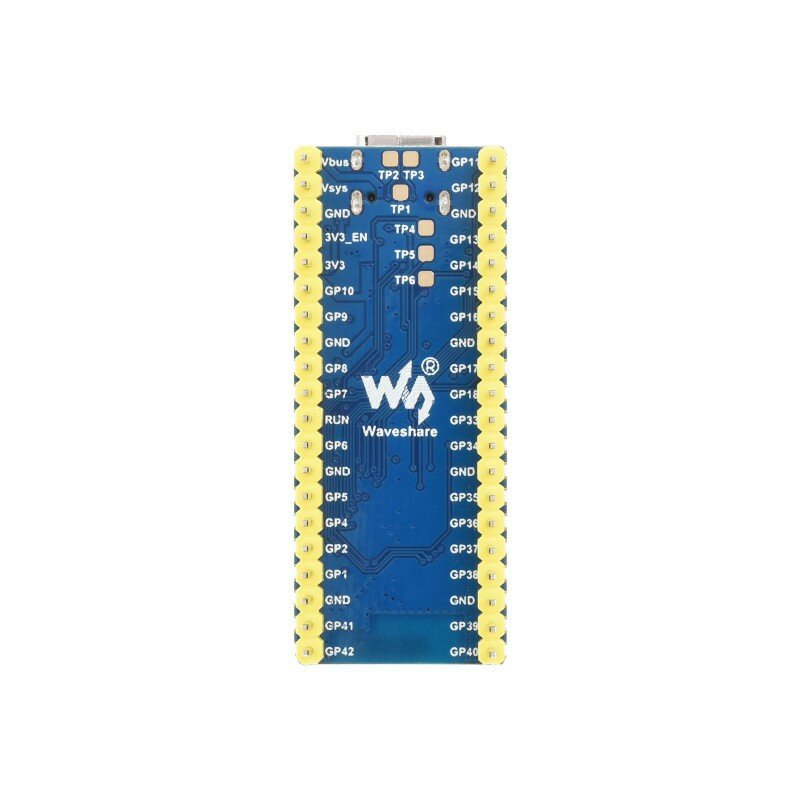

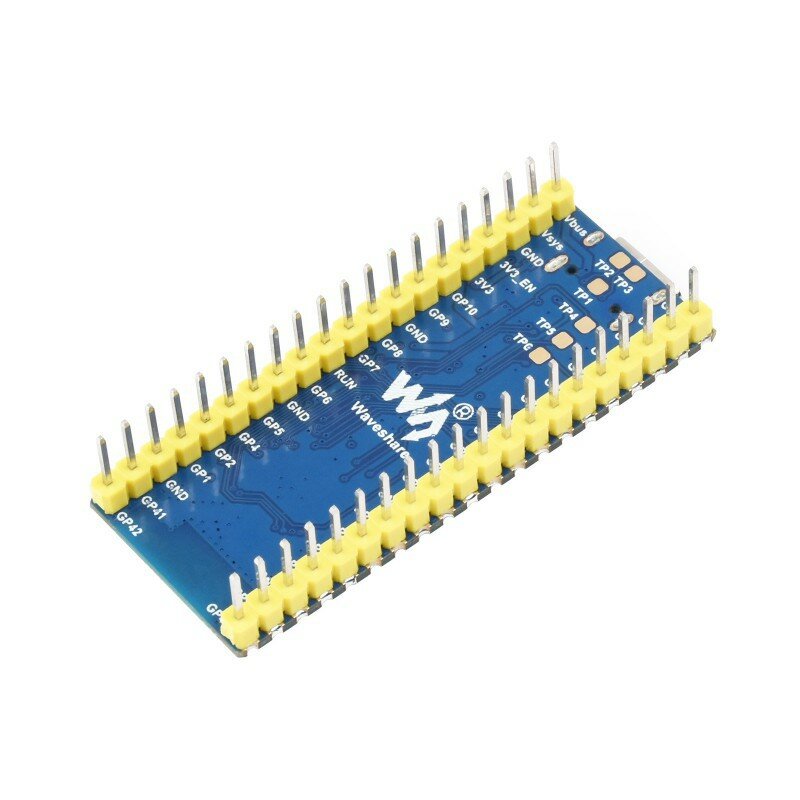

1. ESP32-S3R2 Xtensa 32-bit LX7 dual-core processor, with onboard 2MB PSRAM 2. 2.4G monopole ceramic antenna 3. W25Q128JVSIQ 16MB Flash memory 4. BOOT button Press it when resetting to enter download mode 5. RESET button 6. CH334F USB HUB controller 7. CH343P USB to UART chip 8. MP28164 High efficiency DC-DC buck-boost chip 9. USB Type-C port 10. Power indicator
