11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)1 analog input(3.3V max input)A Micro USB connectionA power jack, 9-24V power input.Compatible with
Getting Started
Getting Started
NodeMcu
Getting Started
Technical specs:
Pin
Function
ESP-8266 Pin
TX
TXD
TXD
RX
RXD
RXD
A0
Analog input, max 3.3V input
A0
D0
IO
GPIO16
D1
IO, SCL
GPIO5
D2
IO, SDA
GPIO4
D3
IO,Pull-up
GPIO0
D4
IO,pull-up, BUILTIN_LED
GPIO2
D5
IO, SCK
GPIO14
D6
IO, MISO
GPIO12
D7
IO, MOSI
GPIO13
D8
IO,pull-down, SS
GPIO15
G
Gound
GND
5V
5V
-
3V3
3.3V
3.3V
RST
Reset
RST
*All IO have interrupt/pwm/I2C/one-wire supported(except D0)
The D1 R2 has a micro USB for auto programming.Also you can programming it using OTAWarnings:

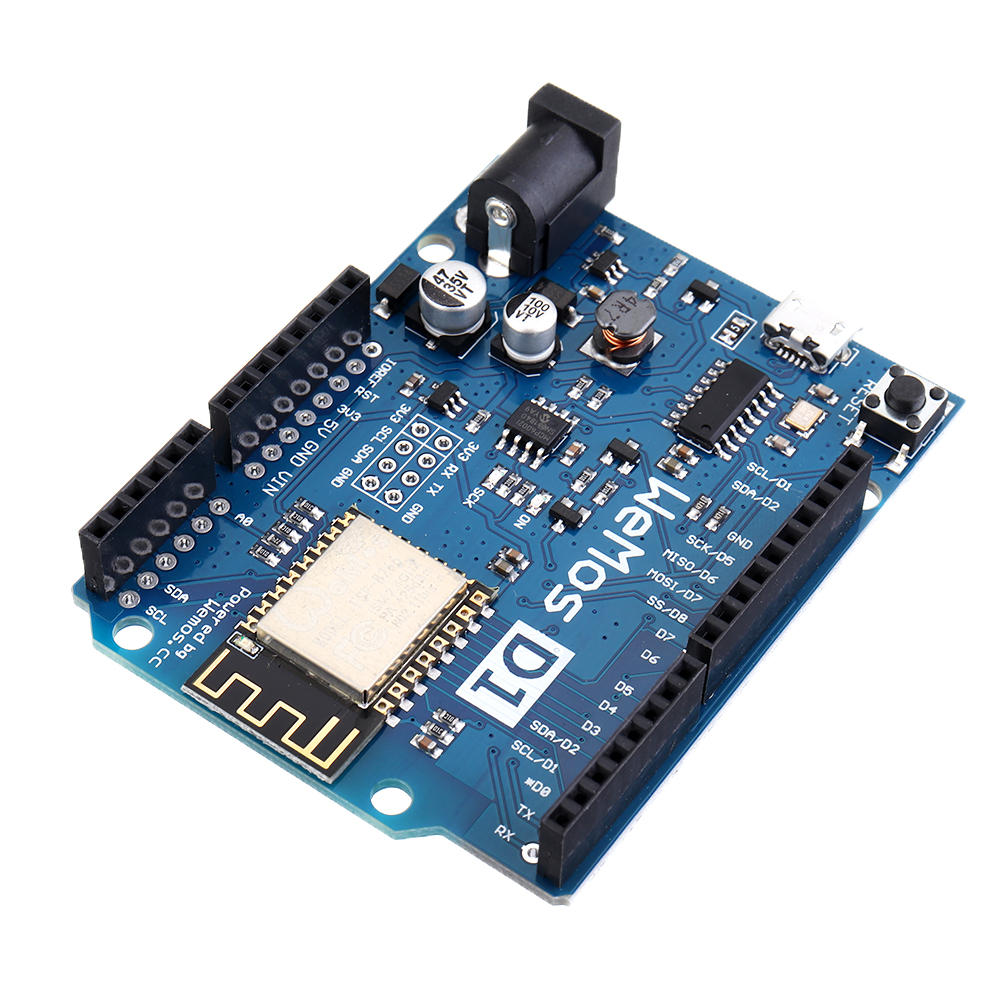

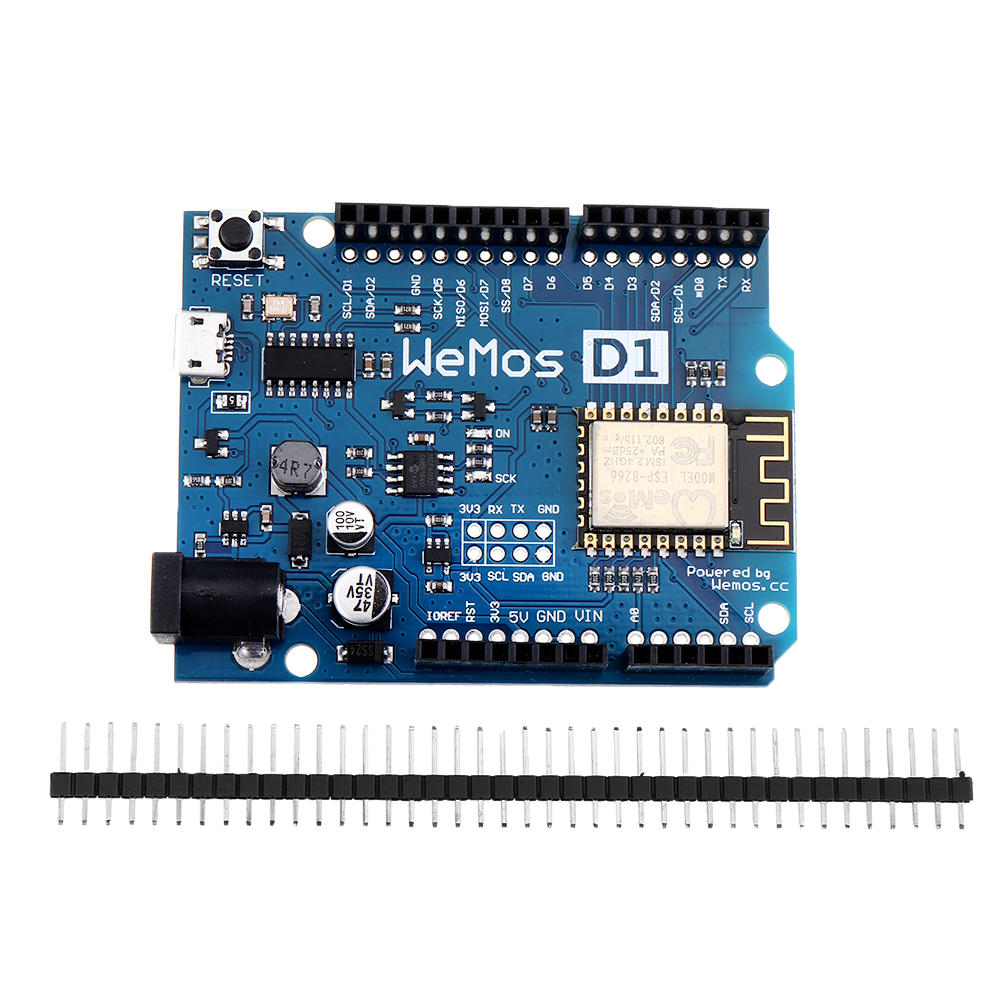

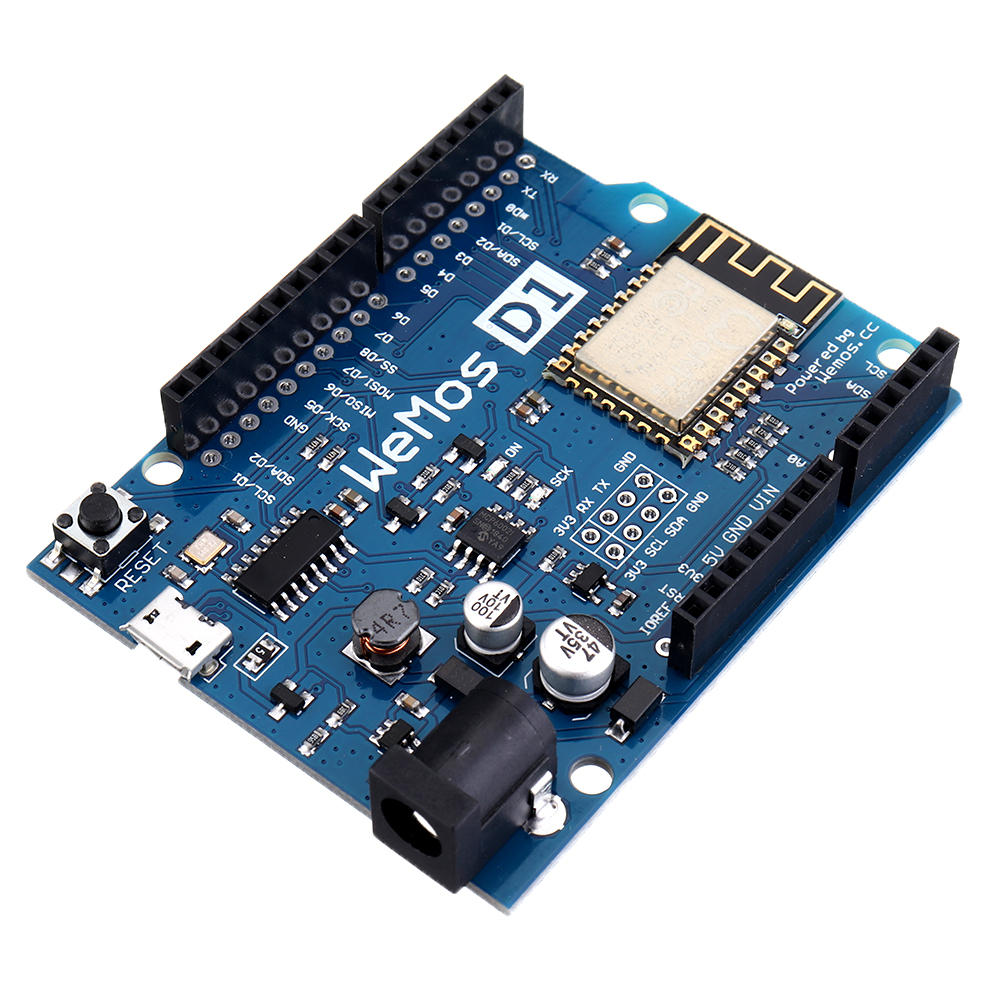

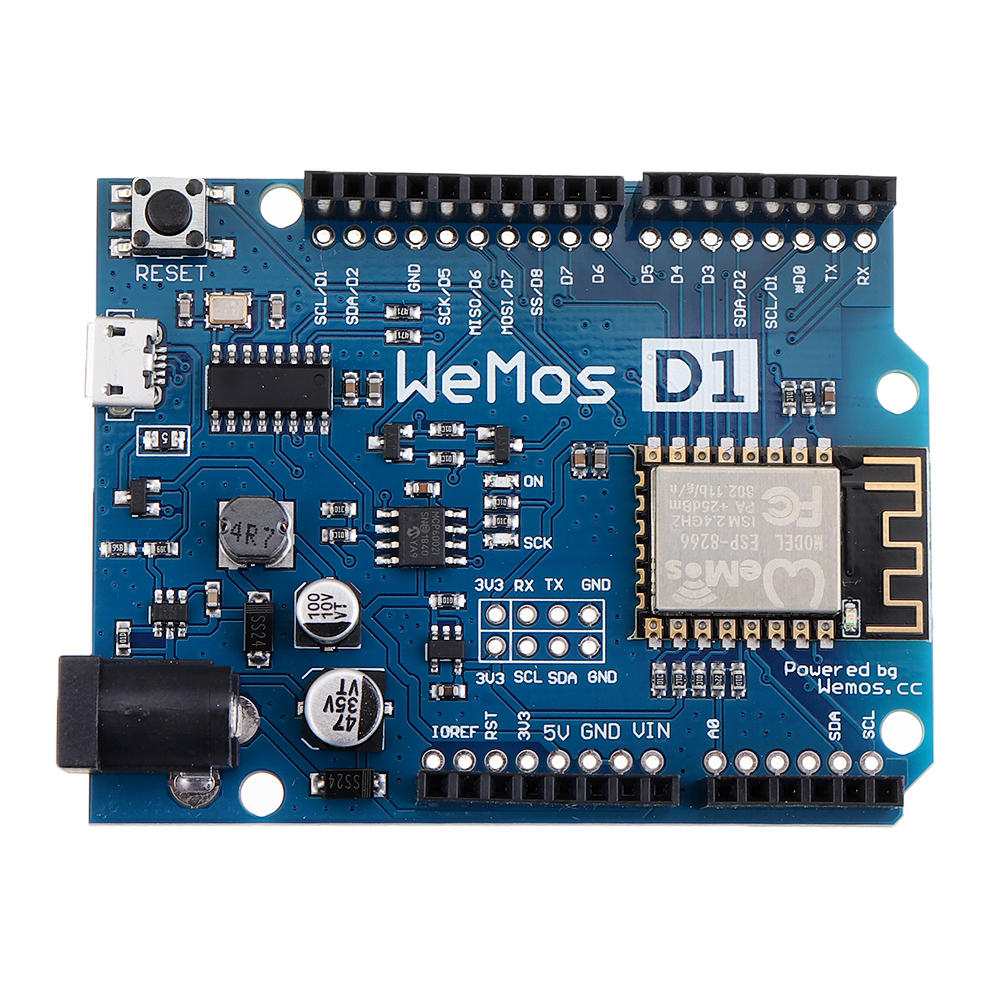

1 x D1 R2 WiFi ESP8266 Development Board
