Now, you can drive TFT LCD in a much faster speed using 84Mhz Ardiuno DUE. The shield is designed to fit two types of LCD:

2. 32pin version LCD which is commonly used in STM32 development board. (unsoldered)

The shield route all the LCD data pins to port PC1-PC8 and PC12-19, control pins to PD0-PD3, this design can acheive high speed data transfer (three cycles per write strobe to the LCD) to maximize LCD display speed. The SPI interface (for SD or flash control) is route to the ISP header of DUE, so that high speed SPI transfer with DMA can be achieved.

The shield is compatible with DUE and the following LCD:

2.8" TFT LCD Module  (320x240)

3.2" High Resolution TFT LCD Module with Font IC (480x320)

4.0" TFT LCD Module with Font IC (480x320)

5.0" TFT LCD Module with Font IC (800x480)


Features:


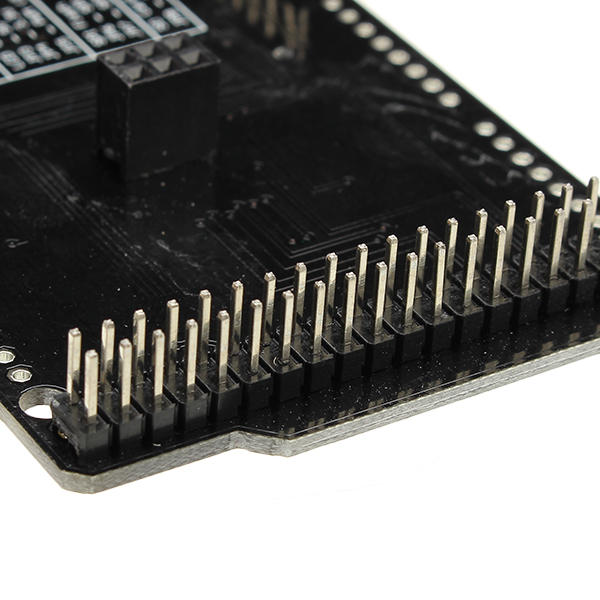

- Compatible with 40-pin version LCD, which is commonly used in TFT Mega shield

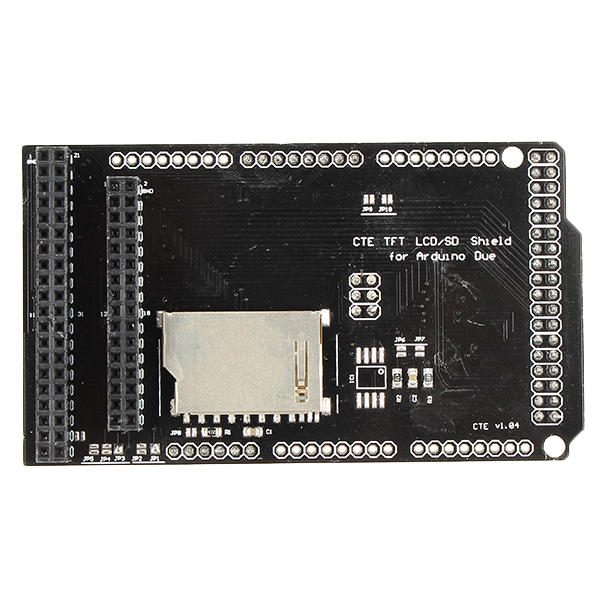

- On board SD card slot with adjustable CS selection

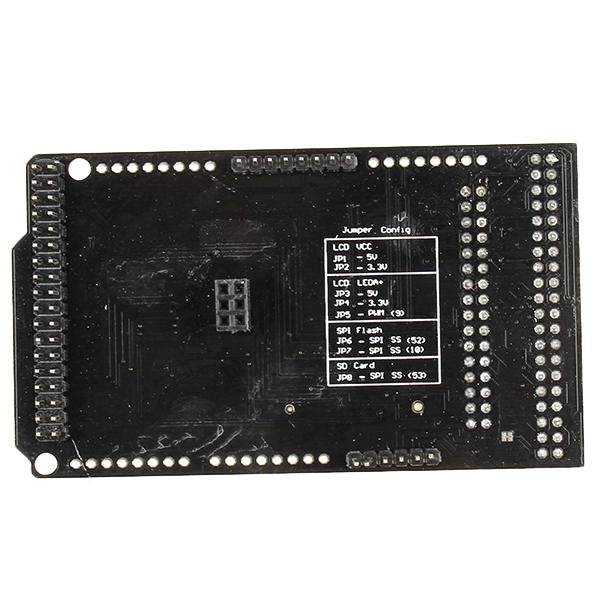

- LCD power 3.3V and 5V selectable through solder jumpers

- Pins are routed to reduce CPU cycles, i.e. display speed is faster



1 x CTE TFT LCD / SD Card Shield For DUE











,,
