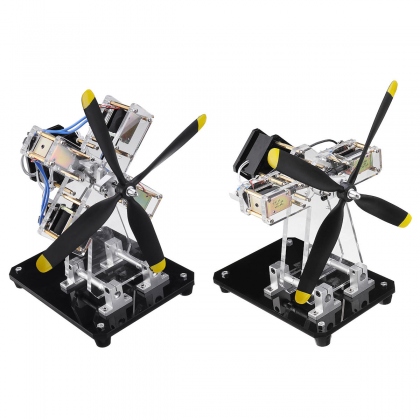

Blade Cylinder Reciprocating Magnetic Multi Coil Hall Engine Fan Model COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:
The reciprocating electromagnet used in this product is a better magnet after repeated experiments, replacement and calculation. It can cooperate with hall sensor to generate magnetic force in a better position and achieve better operation effect. The bearing used is ball bearing with low friction and quiet durability, providing strong support for smooth operation. This product uses high-precision cutted acrylic support and USES four bearing blocks as the fulcrum, which is more stable and durable.

Size	#1	#2	#3
Product Name	Double Coil	Quadra Coil	Hexa Coil
Product Weigth	1.24kg	1.58kg	1.92kg
Dimension (L*W*H)	313*213*250mm	313*213*250mm	313*213*250mm
Input Voltage	12V	8V	5V
Power	4W	4W	4W

Features:

Product Principle:
If the places a current(lv) in the conductor(d) in magnetic field (B), the direction of the magnetic field perpendicular to the direction of the applied voltage, then on the direction perpendicular to both applying current direction and magnetic field, it will produce another voltage (UH), which is called hall voltage. It's like a road, where people are evenly distributed on the road, moving forward, and when there's a magnetic field, they might wave away and go to the right of the road. Therefore, voltage difference will be generated on both sides of the road (conductor). This is called the hall effect. Hall element based on the hall effect, take the magnetic field as the working medium to transform the moving output of the object into the form output of digital voltage, which makes it have the function of sensor and switch.
