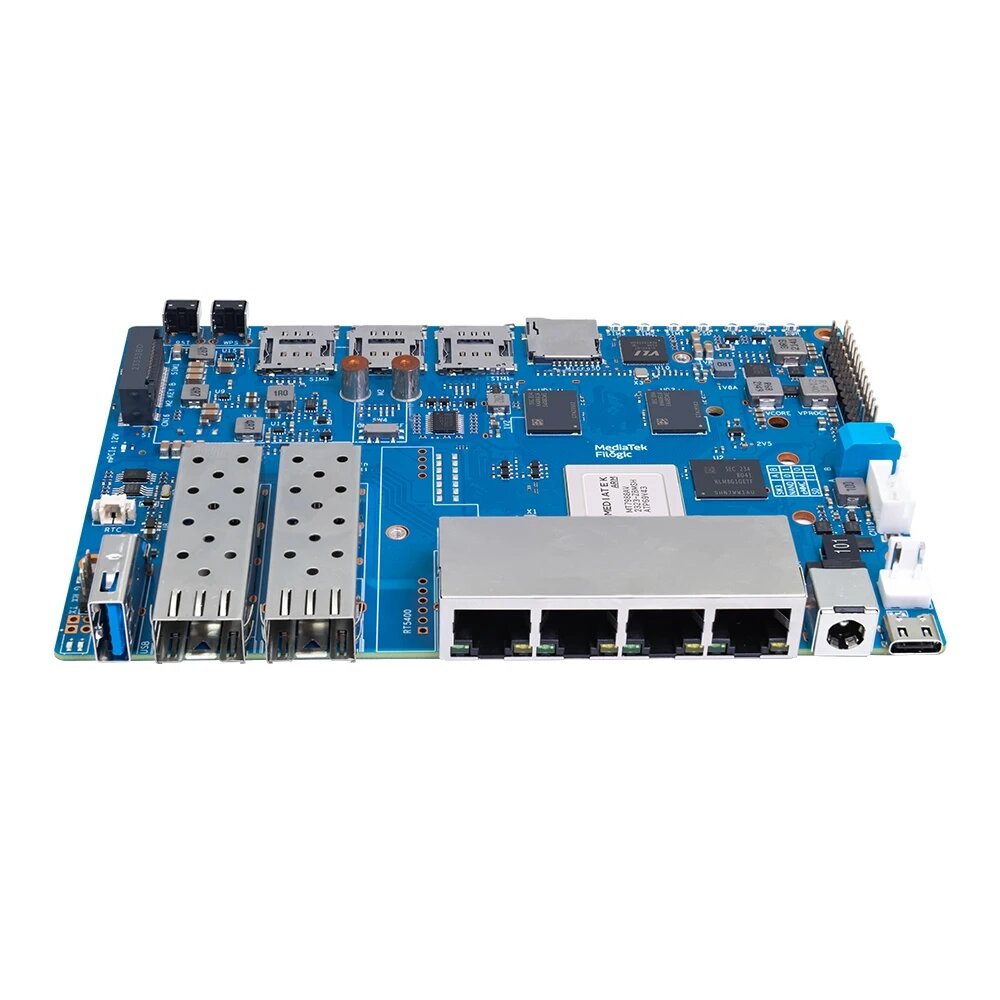

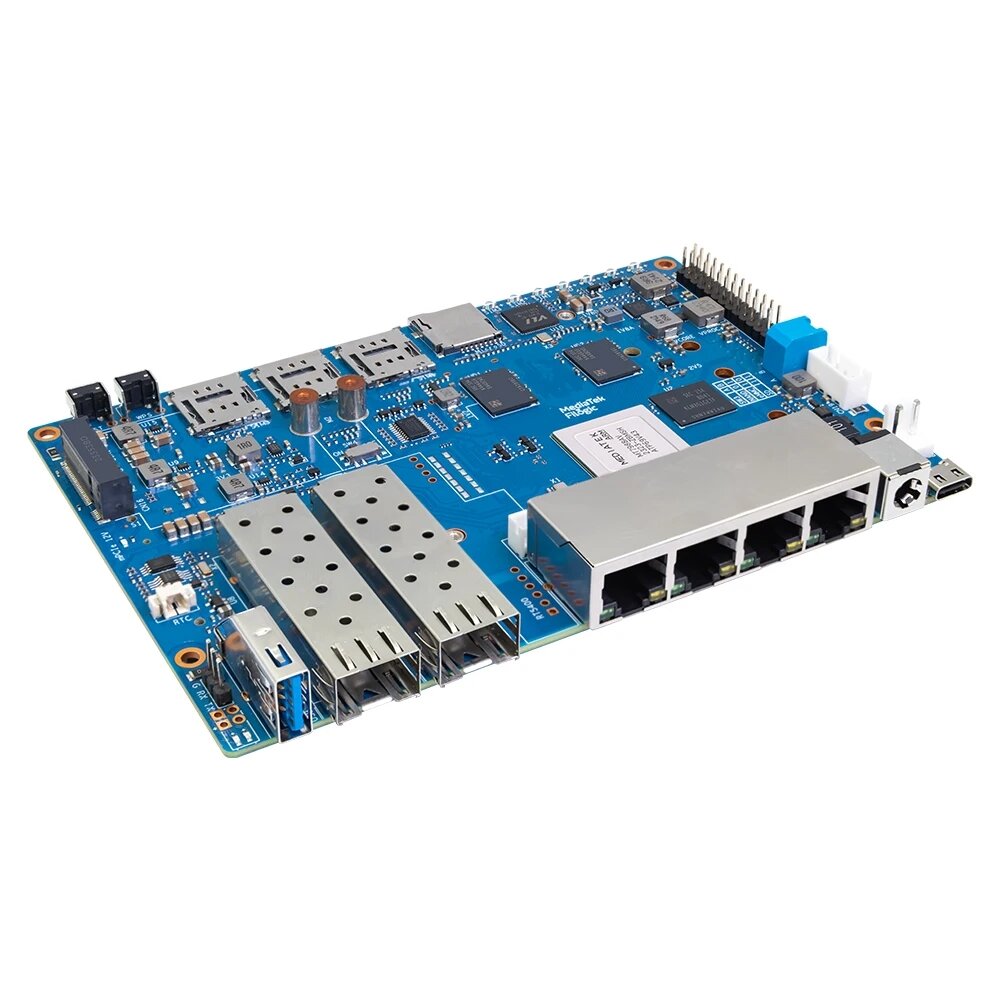

Banana Pi R4 Router Development Board with Onboard 4GB RAM Using MediaTek MT7988A Quad-core Arm Corex-A73 4GB DDR4 8GB eMMC COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Instruction:MediaTek MT7988(Filogic 880):Application direction:Key Features:

CPU	MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
SDRAM	4 GB DDR4
On board Storage	MicroSD (TF) card,8GB eMMC onboard
GPIO	26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
On board Network	4 Port 10/100/1000Mbps Ethernet
SFP	2x10G SFP or 1x10G SFP and 1x 2.5GbE
Wifi	Wifi6/Wifi 7
Mini PCIE	2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
M.2 interface	1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
USB	1xUSB 3.2 slot
Buttons	Reset button,WPS botton, boot switch
Leds	Power status Led and RJ45 Led
DC Power	12V/5.2A or 19V 3.2A
Sizes	100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
Weight	250g



BPI-R4 wifi 7 modue use MediaTek MT7996+MT7995+MT7977A+MT7977B chip design.
