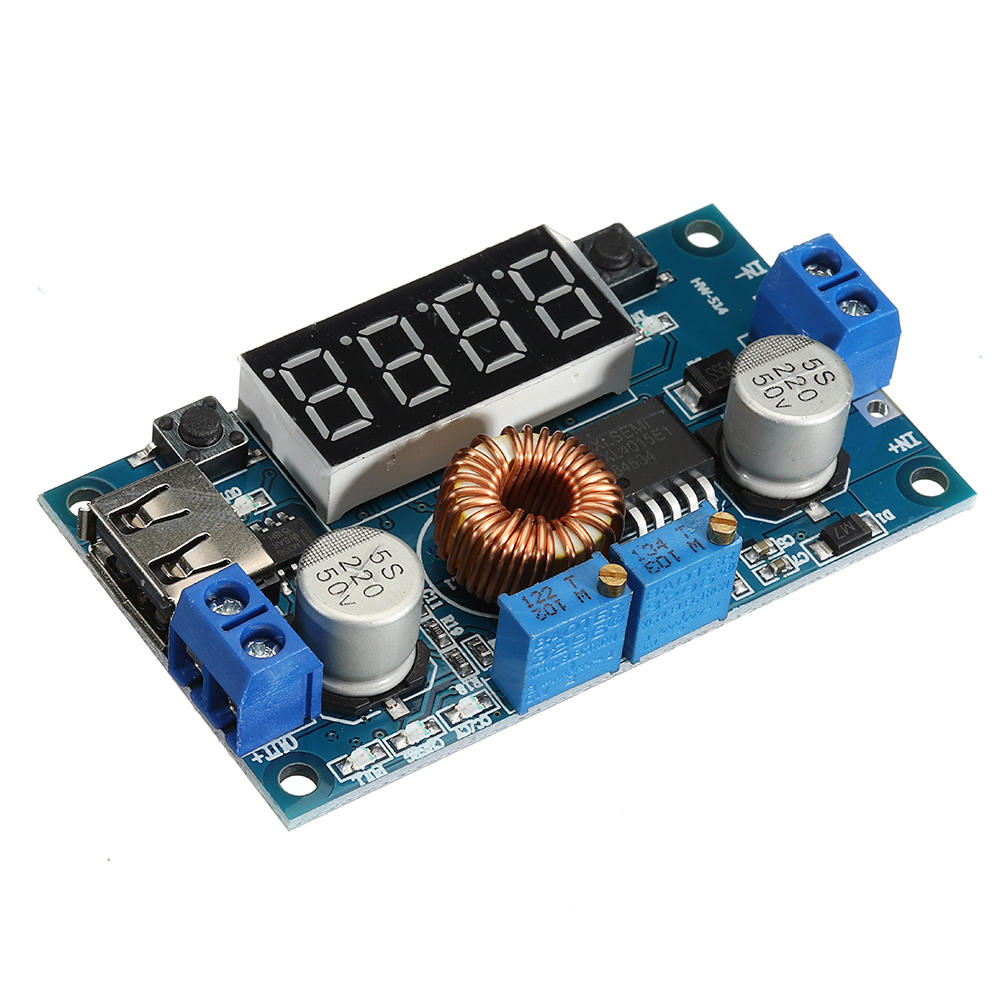

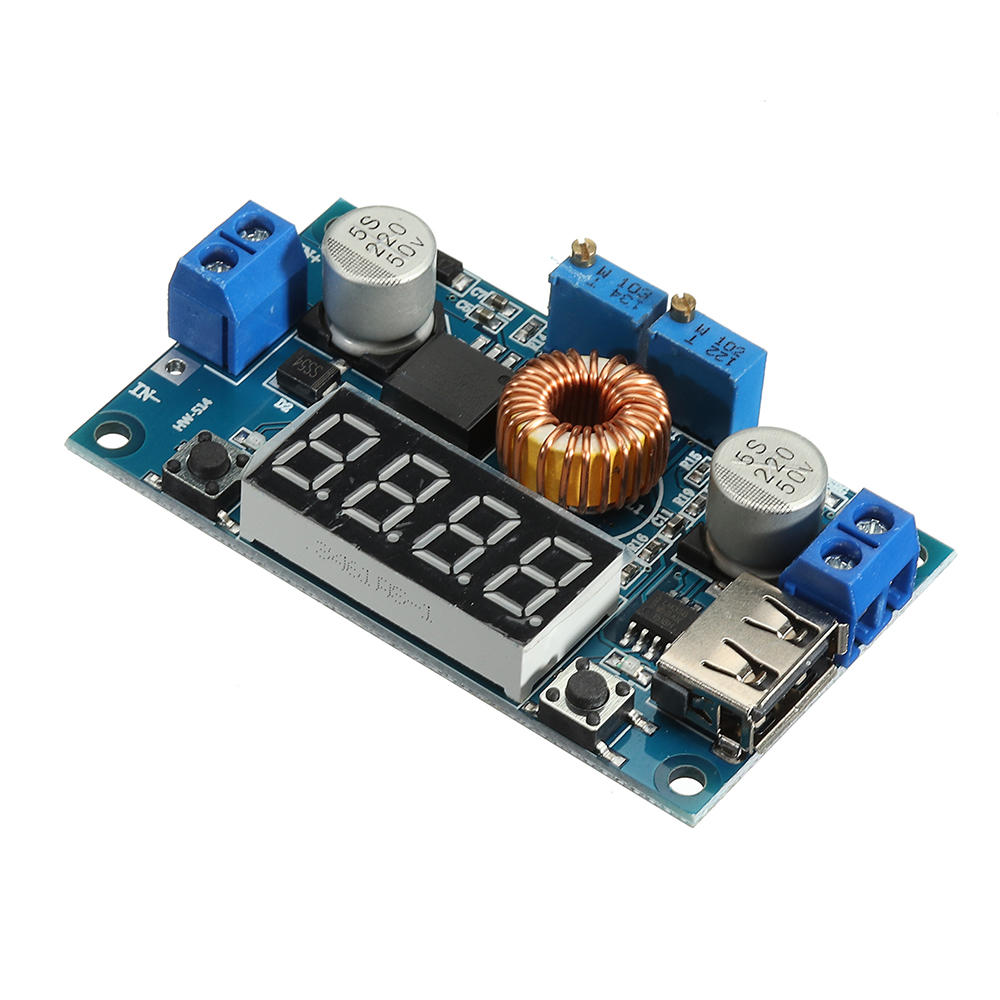

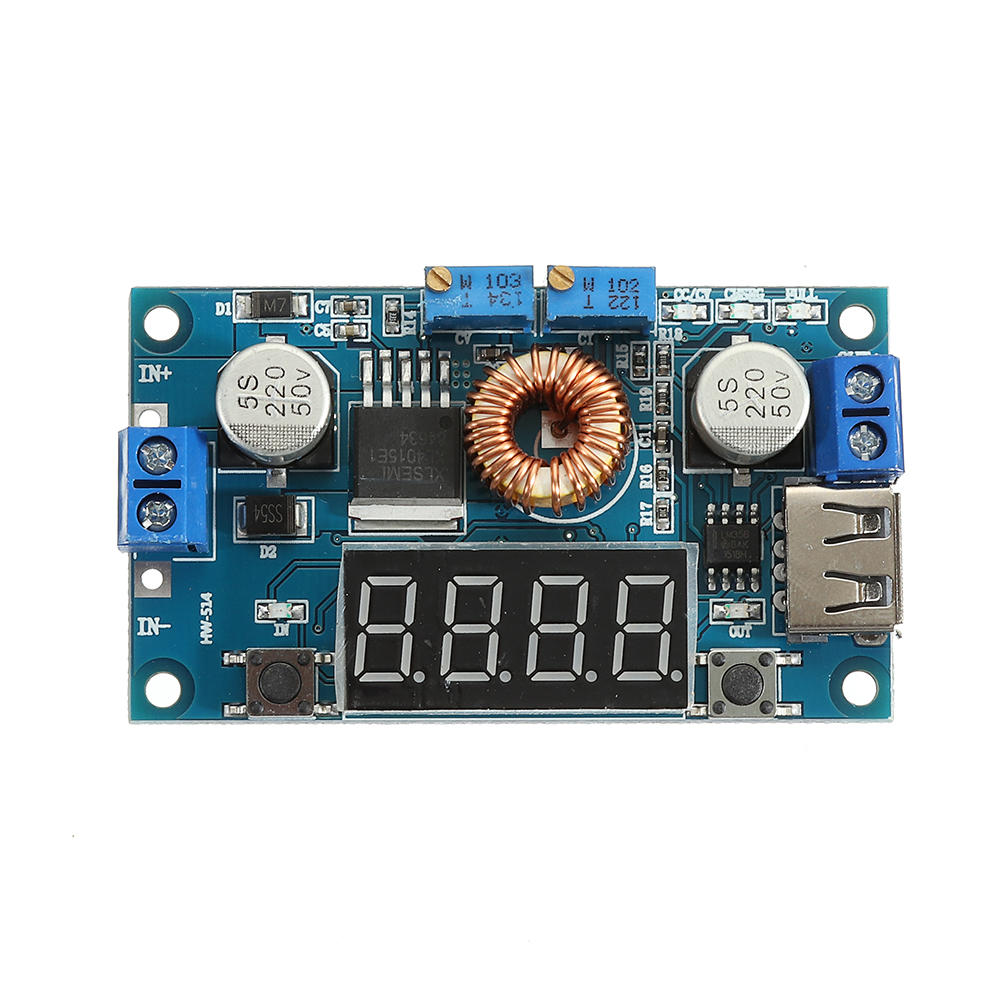

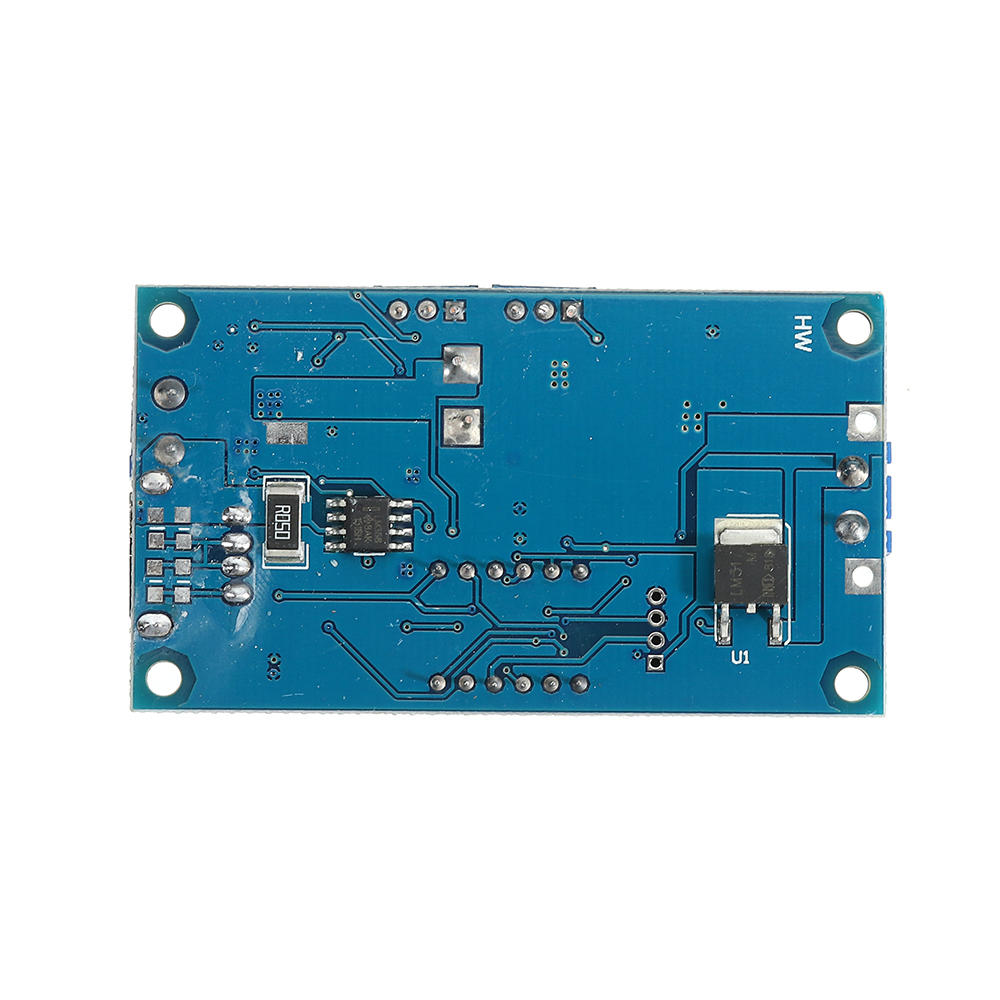

5A Constant Voltage Current Step Down Power Supply Module With USB Charging Power Bank Conversion Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

1. On-board voltage, current, and power meter can easily use this module without a multimeter, which is simpler and more intuitive. 2. Onboard USB interface for easy charging of your digital products. (Note: The USB output voltage is the same as the module output voltage. It is not a fixed 5V output. Please confirm before charging the USB device.) 3. High power, high efficiency, 5A, low ripple; 4. Three major functions: (1) Used as a normal step-down module with overcurrent protection capability; (2) Used as a charger for various voltage lithium batteries, batteries, nickel-cadmium nickel-hydrogen batteries (battery packs), for solar panels, wind turbines, etc.; (3) used as a high power LED constant current drive module; 5. There are two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in; 6. When used as a lithium battery charger, you can set the float voltage and charge current, and the indicator light indicates whether it is charging or is full; 7. With current limiting protection, the module will not burn out even if the output is shorted. 8. The onboard voltage and ammeter can be self-calibrated. 9. With heat sink and copper column.

Parameter:
Application range:   1. Use as a normal buck module with overcurrent protection       2. Use as a battery charger           3. As LED constant current drive module
(1) Determine the operating current and high operating voltage that you need to drive the LEDs; (2) Under no-load conditions, adjust the digital meter to the [display output voltage] interface, adjust the "constant piezoelectric positioner" to make the output voltage reach the LED working voltage; (3) Adjust the digital meter to the [display output current] interface, and directly short the output end of the module (find a thick wire to short the output end), then adjust the "constant current potentiometer" to make the digital meter The current value reaches a preset LED operating current; (4) Connect the LED and test the machine.

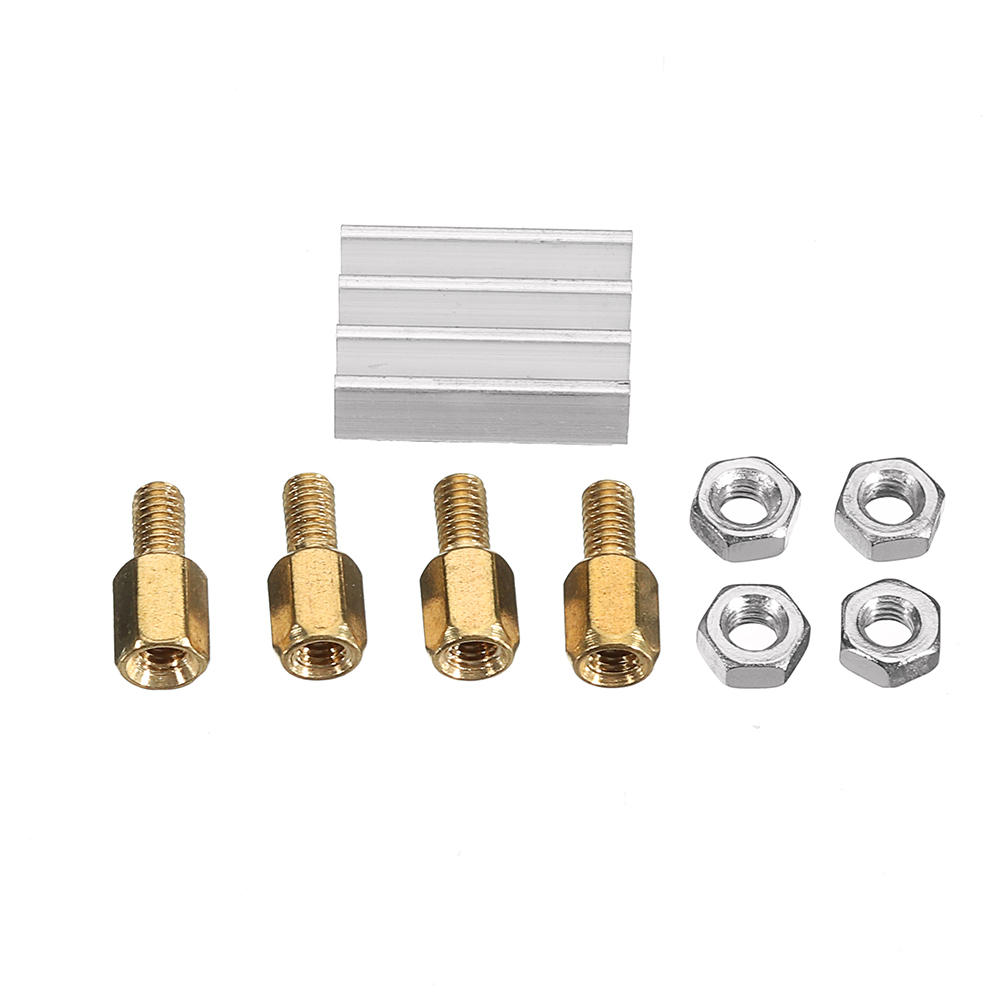

1 x Heat sink
