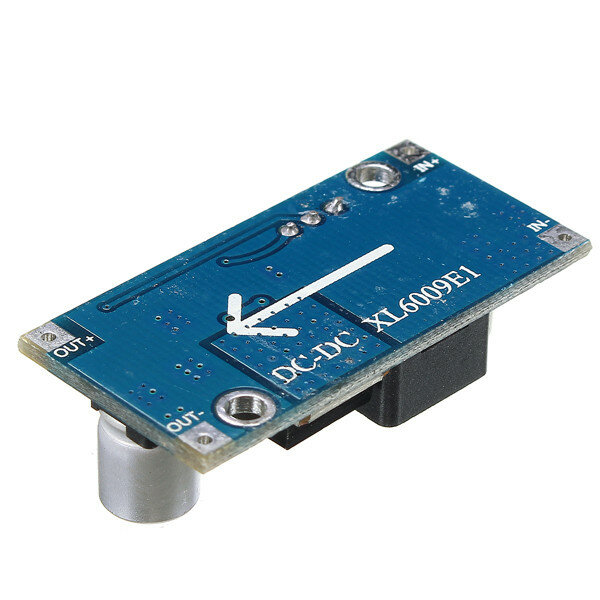

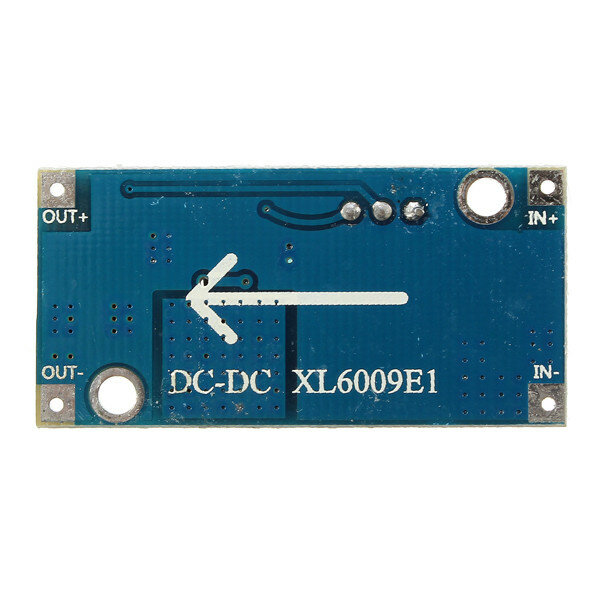

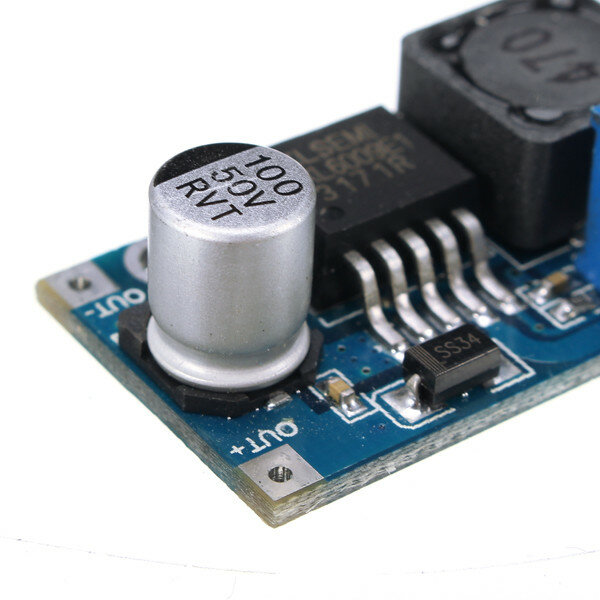

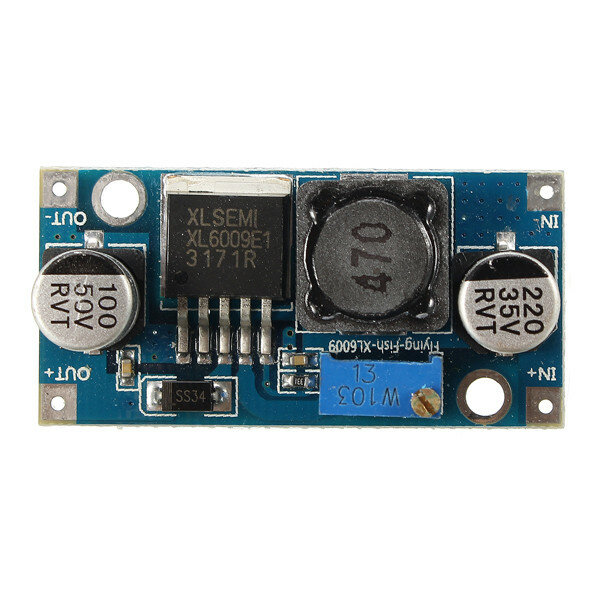

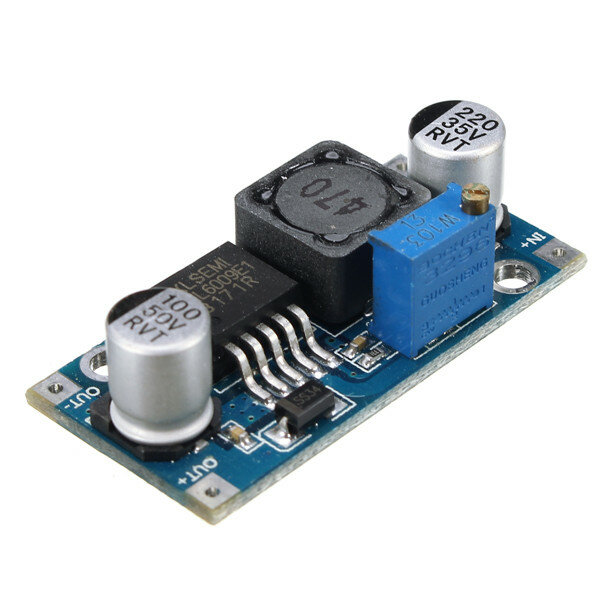

4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



ultra-wide input voltage 3V ~ 32V, the best working voltage range is 5 ~ 32V;

built-in 4A high efficiency MOSFET switch, the efficiency of up to 94%; (LM2577 current only 3A)





Rectification method: Non-synchronous rectification

Output range: 5V ~ 35V

Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)

Output ripple: 50mV (the higher the voltage, the greater the current, the larger the ripple)

Voltage regulation: ±0.5%

Dimensions: 43mm * 21mm * 14mm (L * W * H)

Package included:

1 x 4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module












,,
