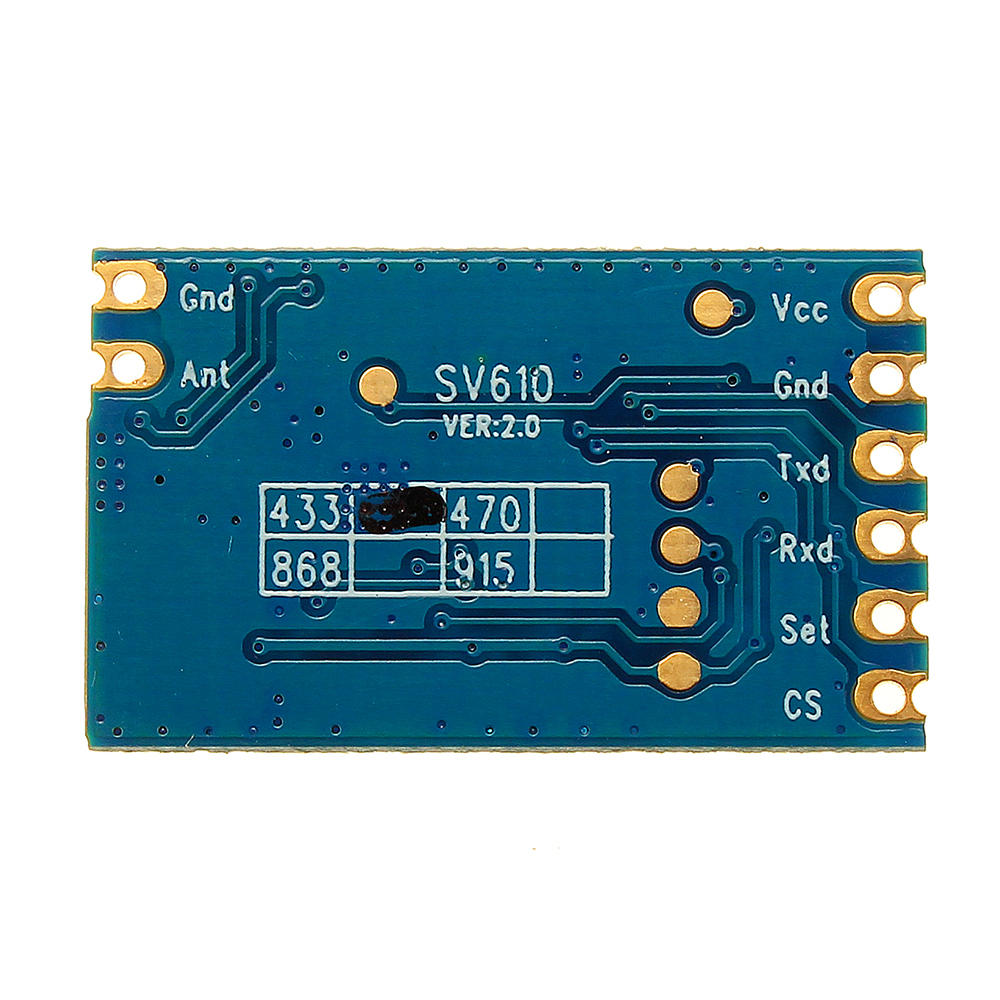

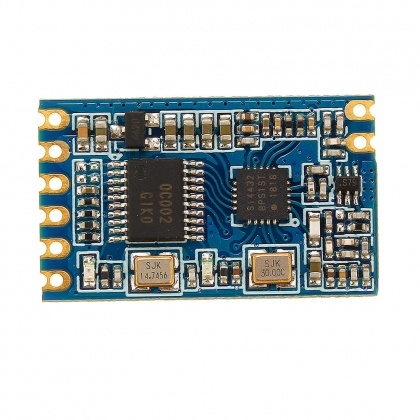

The SV610 module is a highly integrated wireless data transmission module using a high-performance Silicon Lab Si4432 RF chip. Extremely low receive sensitivity, combined with industry-leading 100mW output power, ensures extended range and improved link performance. The module provides multi-band multi-channel and network ID to reduce interference during transmission to improve transmission performance. Users can modify the serial port and RF related parameters through PC software or online. Small size, long-distance transmission, a wide range of operating voltages and even a wide range of convenient programming options make it very versatile.





Wireless remote telemetry Remote meter reading security system         Industrial data collection Home automation telemetry Wireless data communication Building community automation and security Access control system

(different specifications)	414.92	433.92	453.92	MHZ	@433MHZ(this item)
	470.92	470.92	509.92	MHZ	@470MHZ
	849.92	868.92	888.92	MHZ	@868MHZ
	895.92	914.92	934.92	MHZ	@915MHZ
Modulation rate	1.2	9.6	38.4	Kbps	GFSK
Transmit power range	-1	/	20	dBm	Software configurable
Receiving sensitivity		-121		dBm	@1.2kbps

Package includes:

1 x Module
