3Pcs Geekcreit® Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducer Sensor DC 5V 2-450cm Geekcreit for Arduino - products that work with official Arduino boards

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:


Static Current: Less than 2mA.

Sensor Angle: Not more than 15 degrees.

High Precision: Up to 0.3cm

Ech0 Signal : output TTL PWL signal

VCC

ech0(R)


Use Method:


Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation;if not, then power again.



1. Adopt IO trigger through supplying at least 10us of high level signal.

3. If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving. Test distance =(high level time * sound (340M/S) / 2.



This module is not suitable to connect with electric power, if you need to connect this module with electronic power,then let the GND terminal of this module to be connected first,otherwise, it will affect the normal work of the module

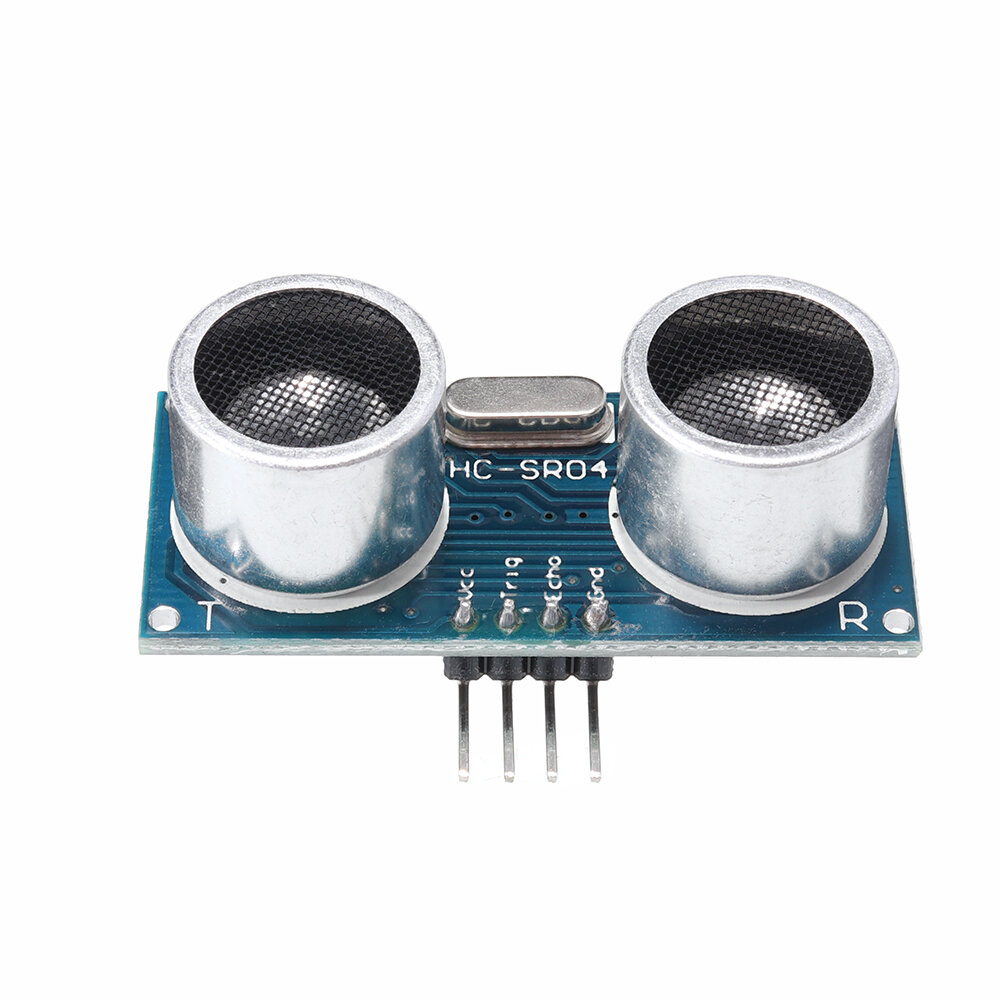

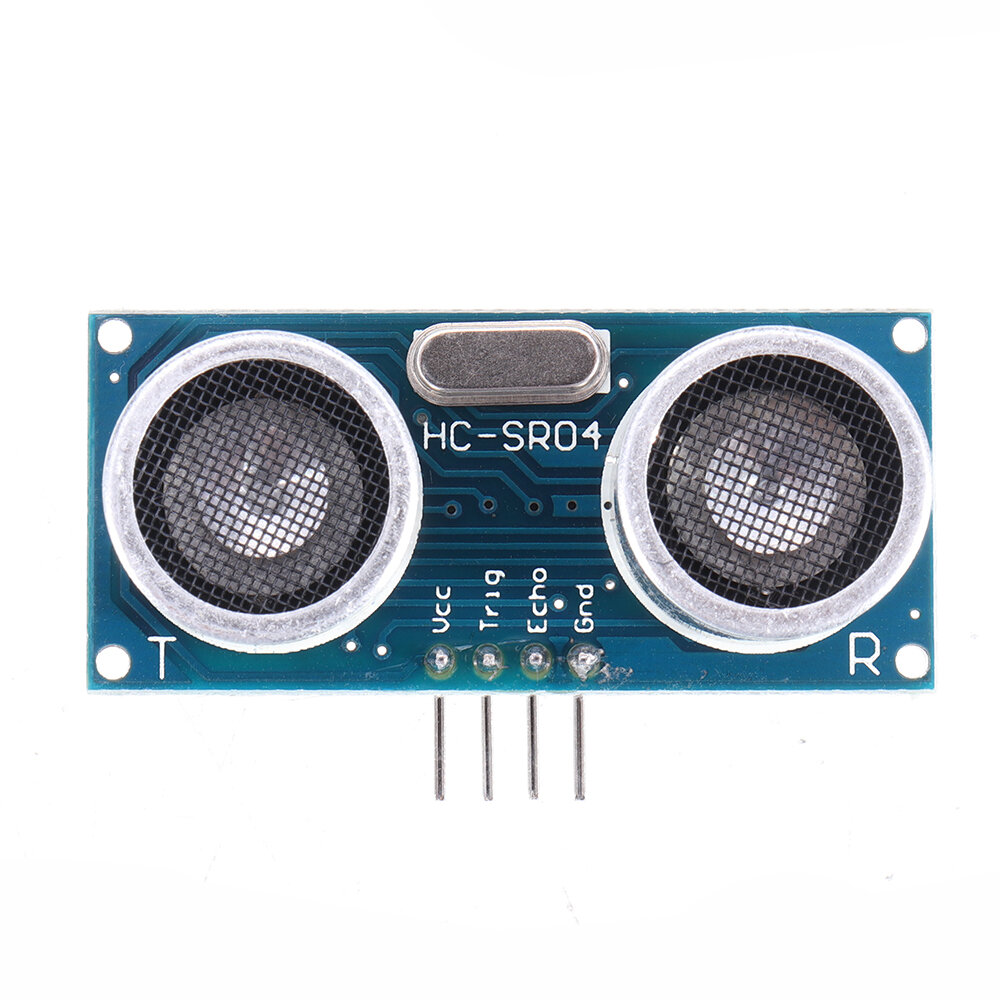

3 x HC-SR04 Ultrasonic Module Distance Measuring Transducer
