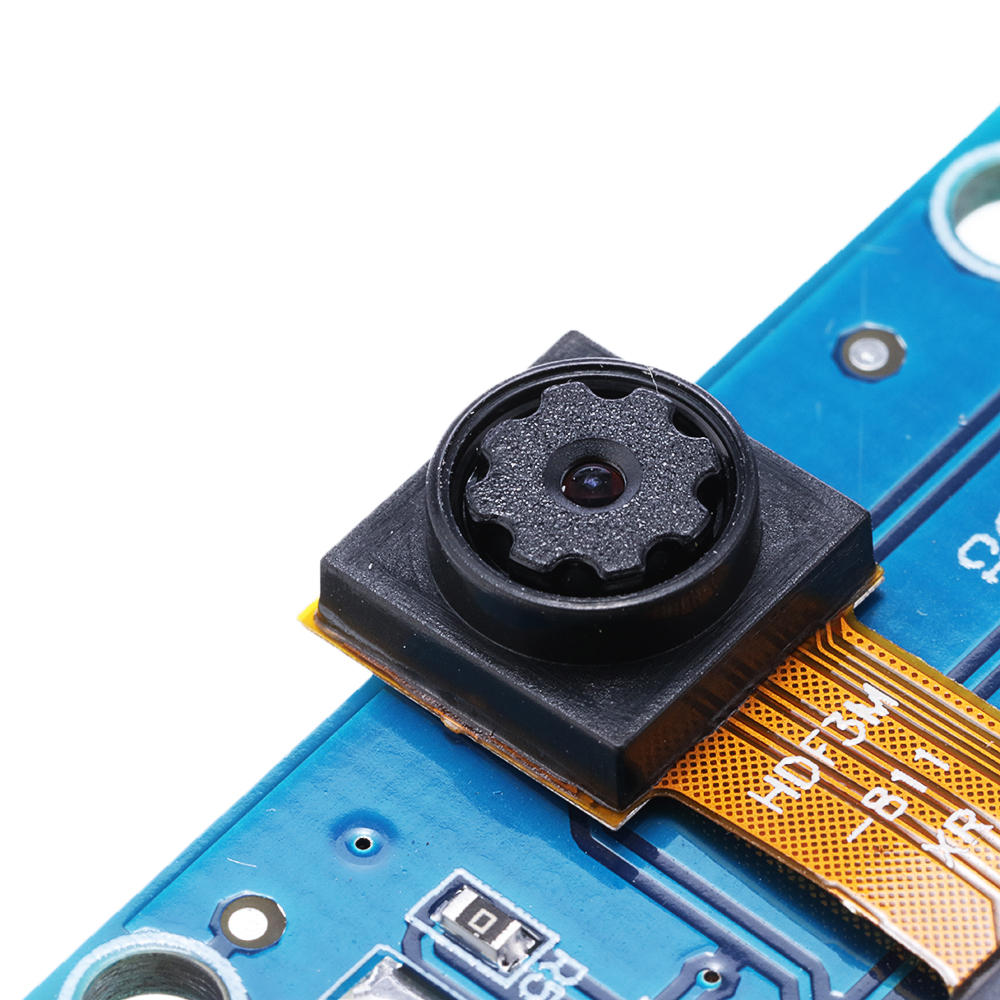

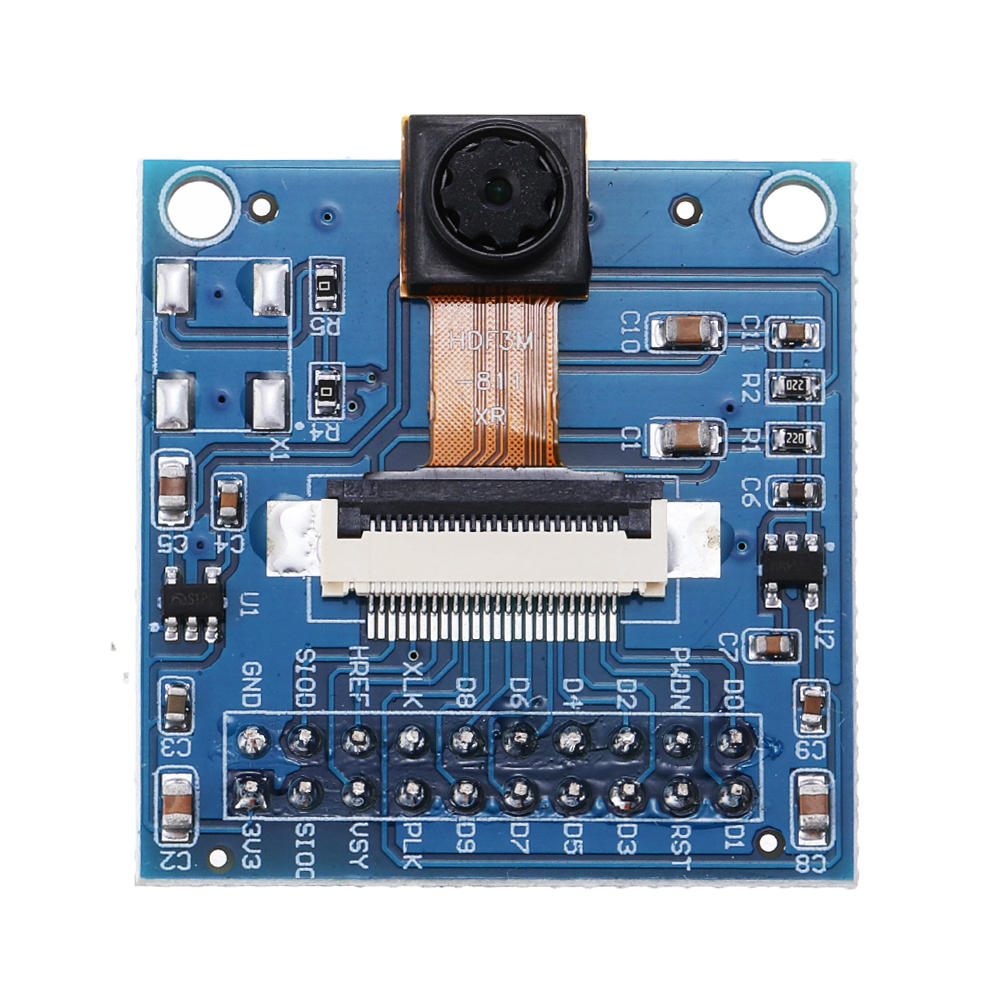

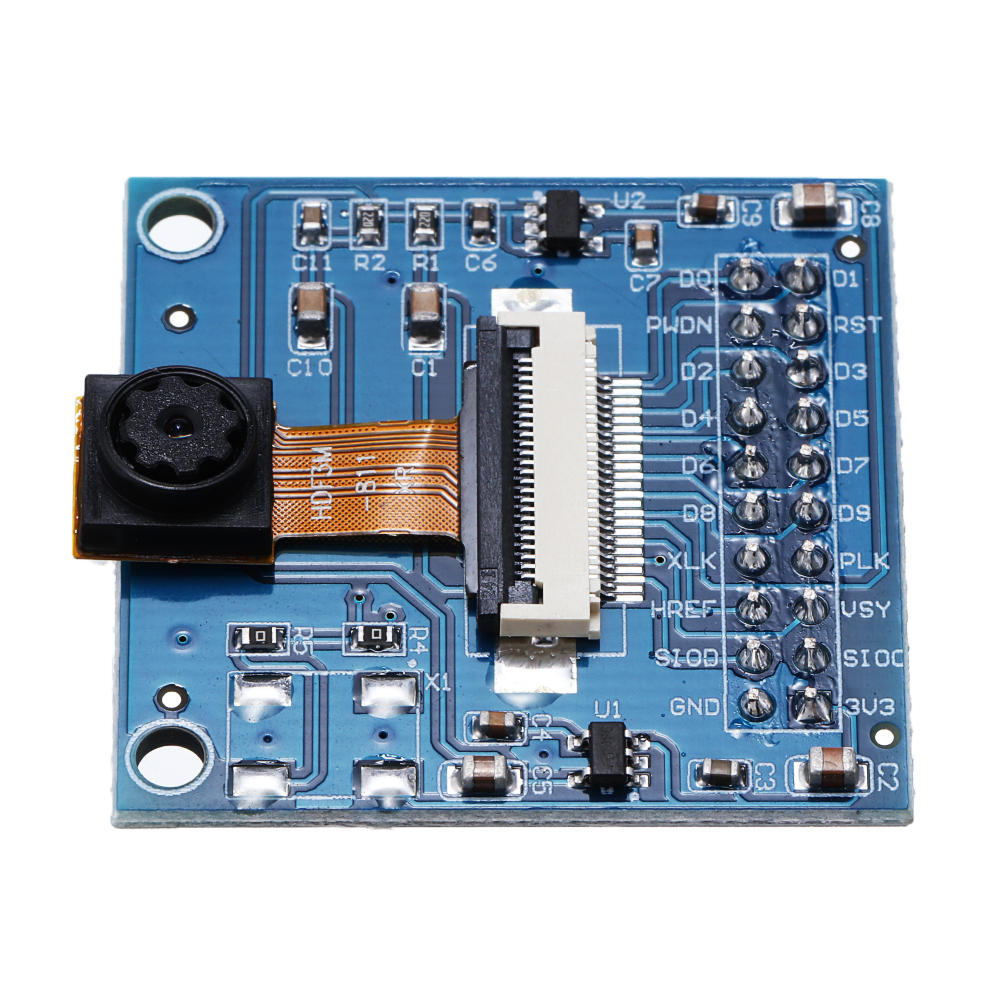

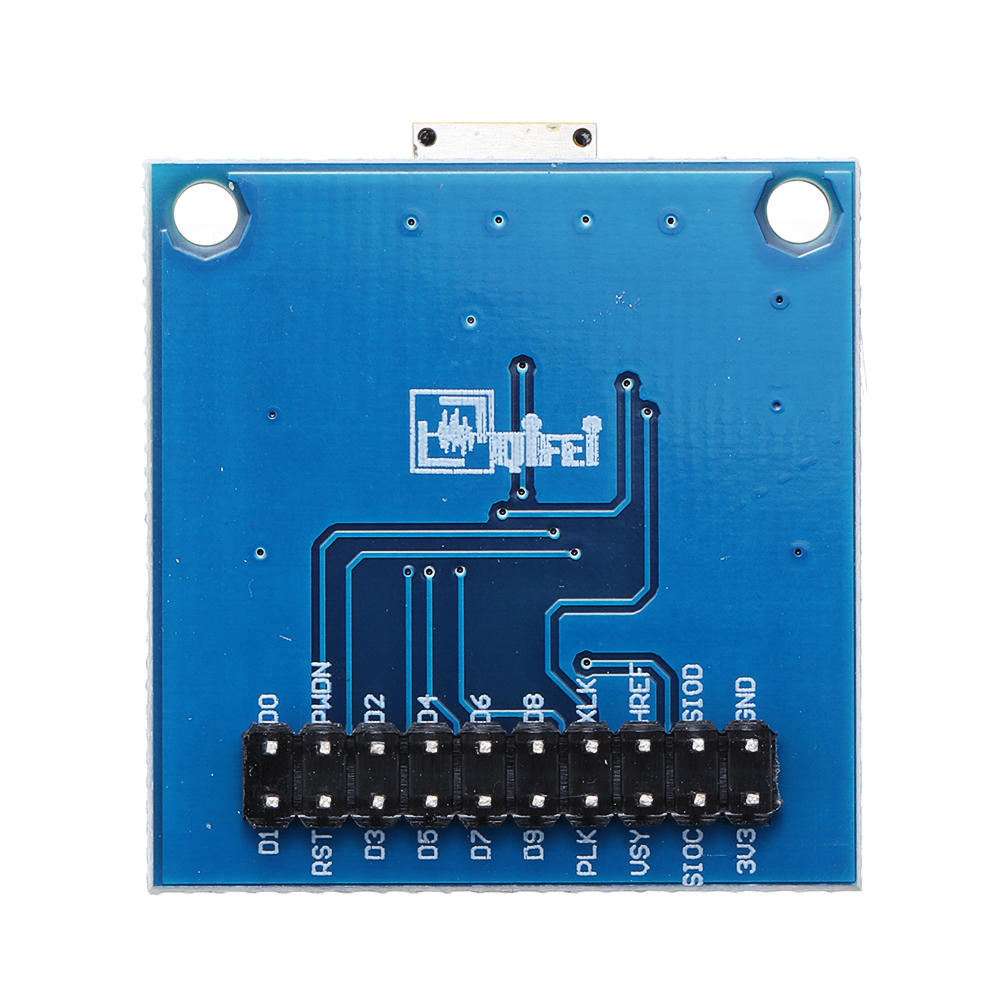

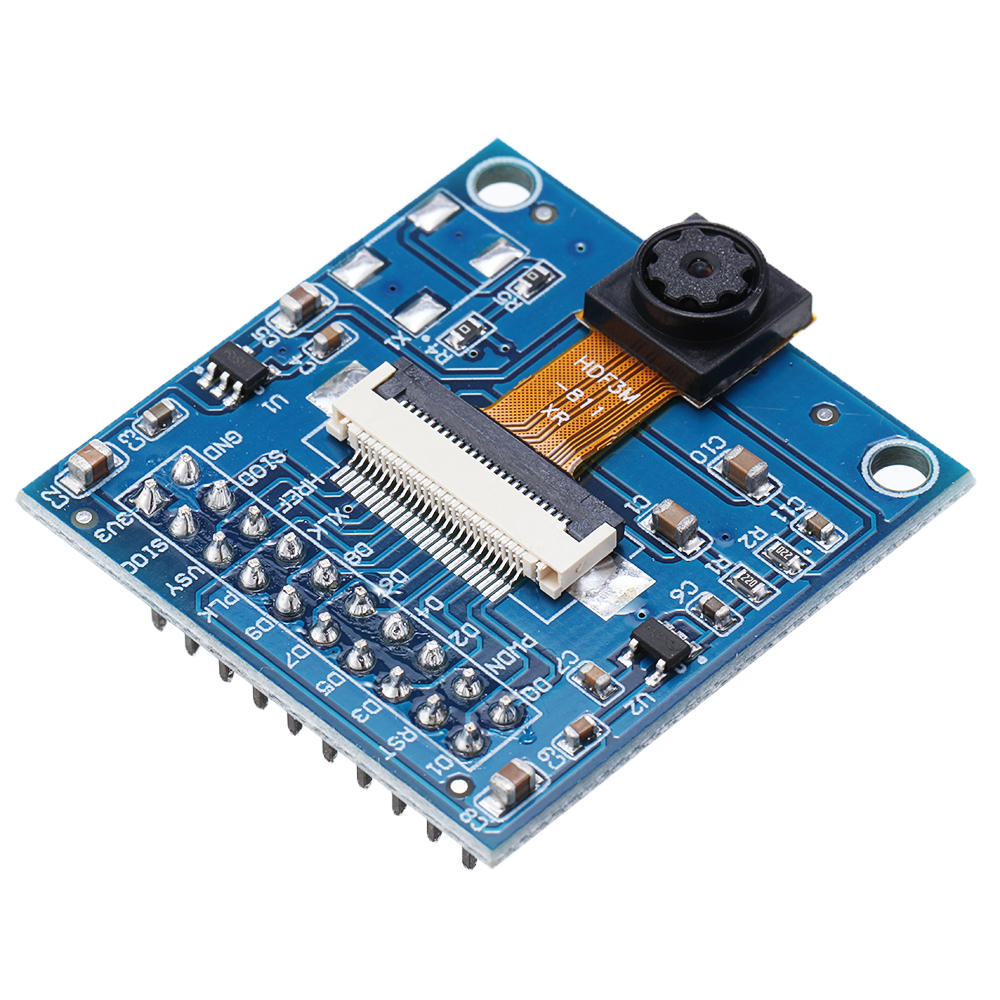

2 Megapixel OV2640 Camera Module with Adapter Board STM32 /C51 Driver COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

With 2 million pixels (1632x1232 pixels), the OV2640 image sensor is small in size and low in operating voltage, providing all the features of a single UXGA camera and image processor. Through the SCCB bus control, it is possible to output 10-bit sample data of various resolutions such as full frame, sub-sampling, and window. The UXGA image of this product is up to 15 frames per second. Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, saturation, chrominance, etc. can be programmed via the SCCB interface. OmmiVision Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, and floating. ● High sensitivity for low illumination applications ● Low voltage for embedded applications ● Standard SCCB interface, compatible with I2C interface ● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats ● Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size ● Support VarioPixel subsampling mode ● Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM ●ISP has noise elimination and dead point compensation ● Support image scaling ● Lens loss compensation ● Automatic adjustment of saturation ● Edge enhancement auto adjustment ● Automatic noise reduction Photosensitive Array 1632x1232 Maximum Format UXGA IO voltage 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO power supply 1.2V) Power Operation TBD Sleep <20μA Temperature operation -30 ° C to 70 ° C Stable operation 0 ° C to 50 ° C Output format (8-bit) YUV/YCbCr4: 2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Optical size 1/4" Angle of view 25° Maximum conversion rate 15fps SXGA Sensitivity 1.3V / (Lux-sec) Signal to noise ratio 40 dB Dynamic range 50 dB Browse mode line by line Electronic exposure 1 line to 1247 lines Pixel area 2.2μm x 2.2μm Dark current 15mV/s at 60°C Base plate reserved crystal position 1 x 2 Megapixel OV2640 Camera Module with Adapter Board
