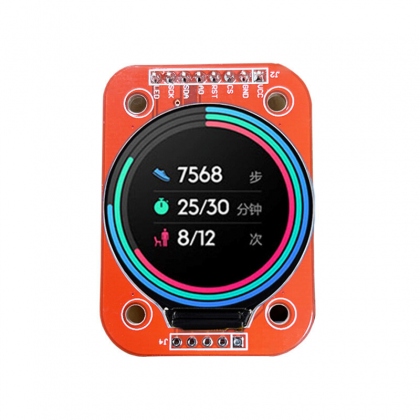

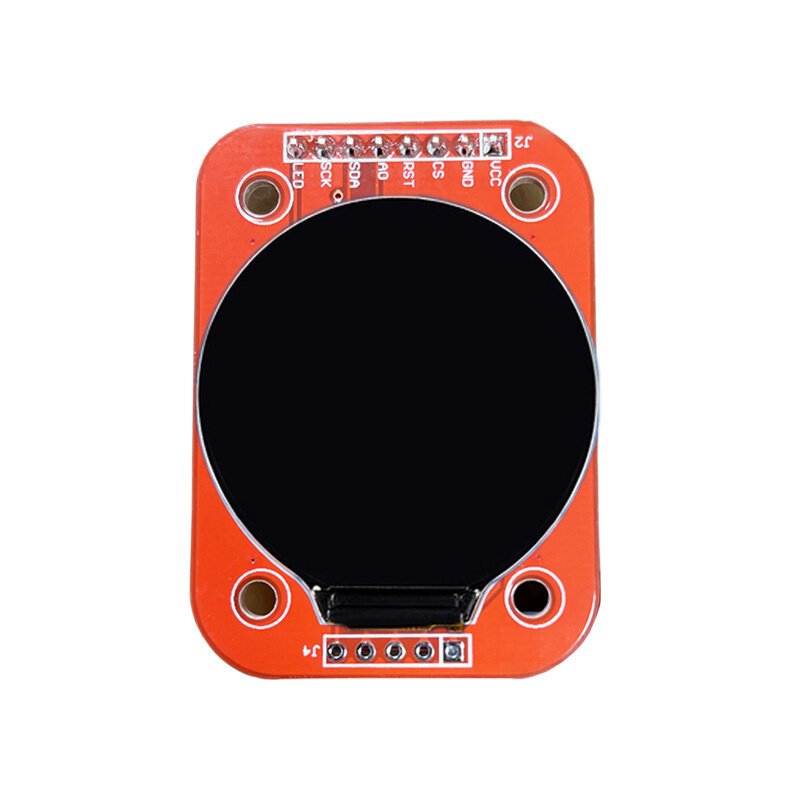

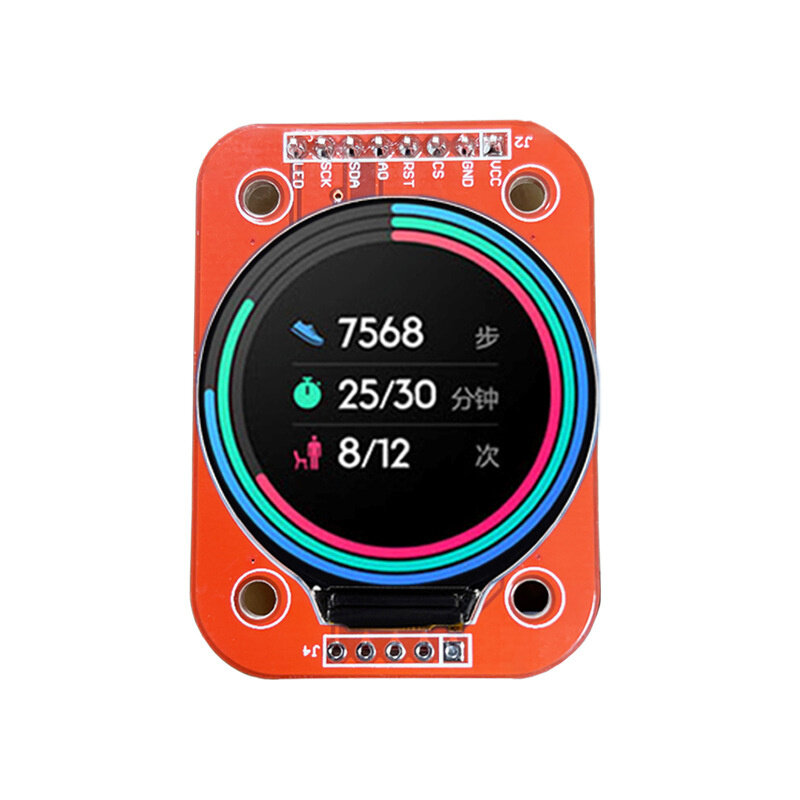

1.28 inch TFT LCD Display Module Round RGB 240x240 GC9A01 Driver 4 Wire SPI Interface IPS Screen COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Glass panel	1.28 inch
Dimensions	35.6(H)*38.1(V)*1.55(D)mm
Display size	φ32.4mm
Resolution	240 RGB*240
Pixel size	0.135(H)*0.135(V)
Interface mode	4-wire SPI
Perspective	ALL View
Driver chip	GC9A01
Backlight	2 white LED Parallel
Pixel arrangement	RGB Vertical stripe
LCM brightness	350cd/
Display color	65K
Display mode	Normally black
Input voltage	3.0±0.2V
Weight	3.2g
Operating temperature	-20~+70°C
Storage temperature	-30~+80°C

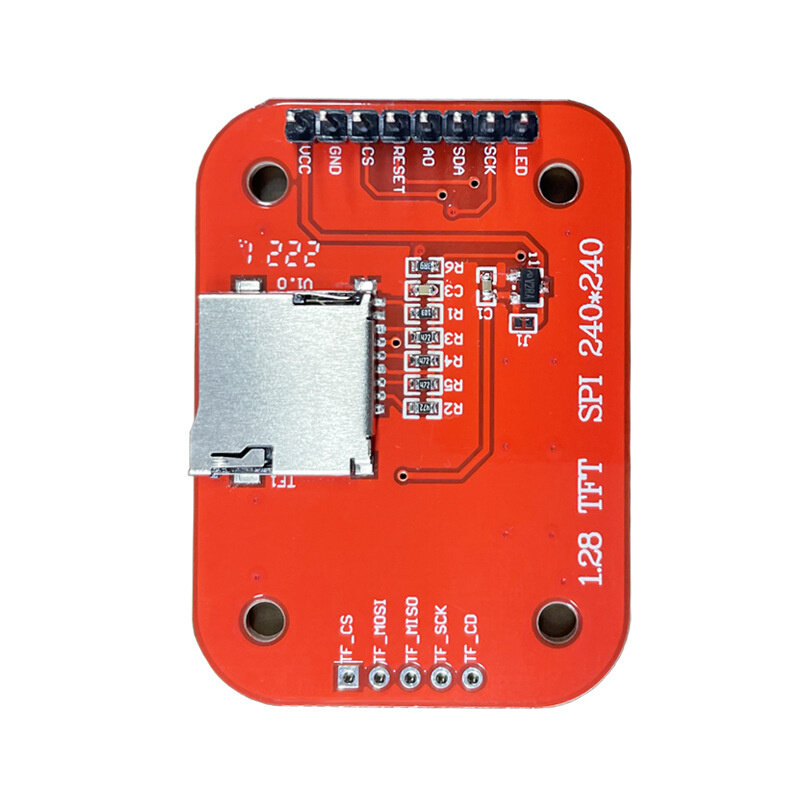

Pin	Pin definition	Function Description
1	GND	Power Ground
2	LEDK	LED Cathode
3	LEDA	LED Anode
4	VDD	Power supply for Analog
5	GND	Power Ground
6	GND	Power Ground
7	D/C
8	/cs	Chip selection pin;Low enable,high disable.
9	SCL	This pin is used to be serial interface clock
10	SDA	SPI interface input/output pin,the data is latched on the rising edge of the SCL signal.
11	RESET	This signal will reset the device and it must be applied to properly initialize the chip.Signal is active low.
12	GND	Power Ground

1. The display module utilizes a GC9A01 driver for efficient performances.

3. Comfortable viewing from any angle is ensured by the IPS Round and ALL View feature.

5. The display is equipped with 2 White LED backlights in parallel which provide additional clarity for visuals.



1* 1.28 Inch TFT LCD Display Module
