10pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Module COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

>>>Code: Click here to open<<<

Features:


Dimension: 3.2cm x 2.4cm x 2.8cm (approx)

The sensitivity and holding time can be adjusted

Current drain:<60uA

Detection distance: 3--7M(can be adjusted)

Delay time: 5-200S(can be adjusted, default 5s +-3%)

Trigger: L: Non-repeatable trigger  H: Repeat Trigger (default)

Trigger method: L unrepeatable trigger / H repeatable trigger



Sensitive Setting: turn to right, distance increases (About 7M); turn to left, distance reduce (About 3M)

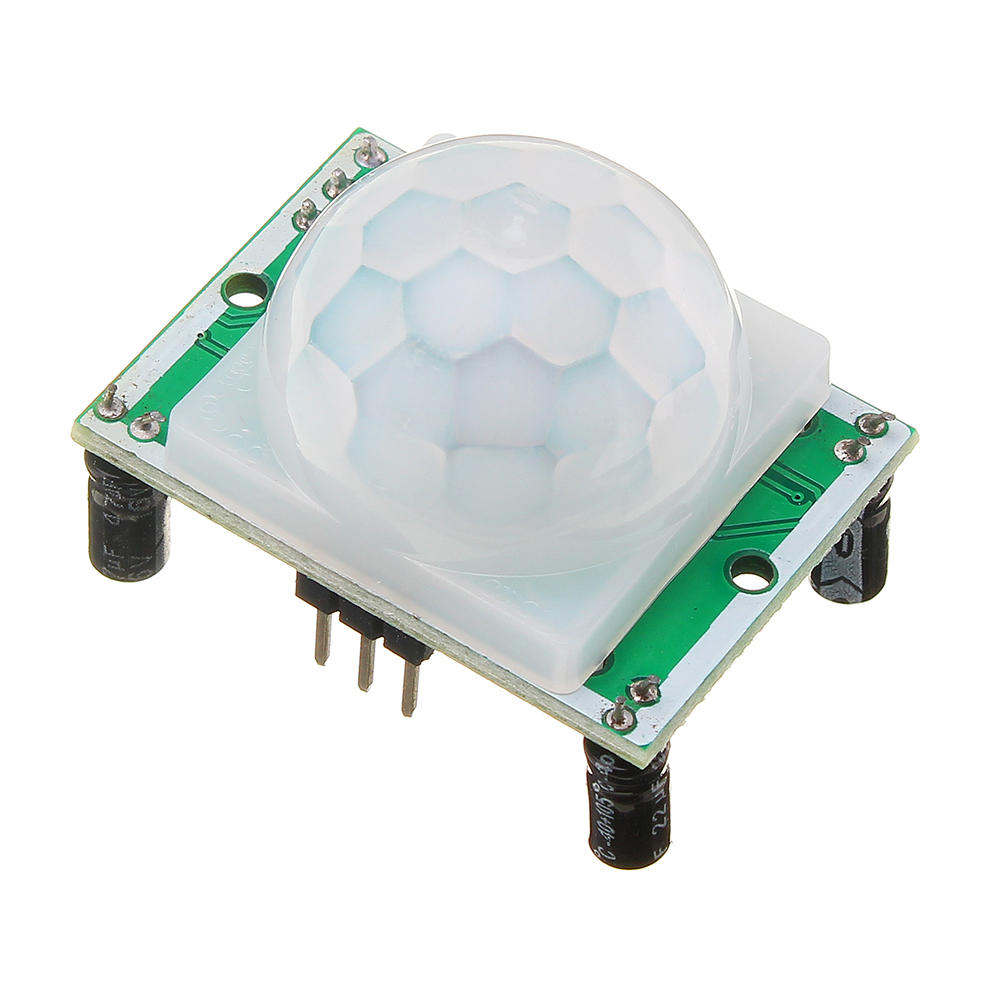

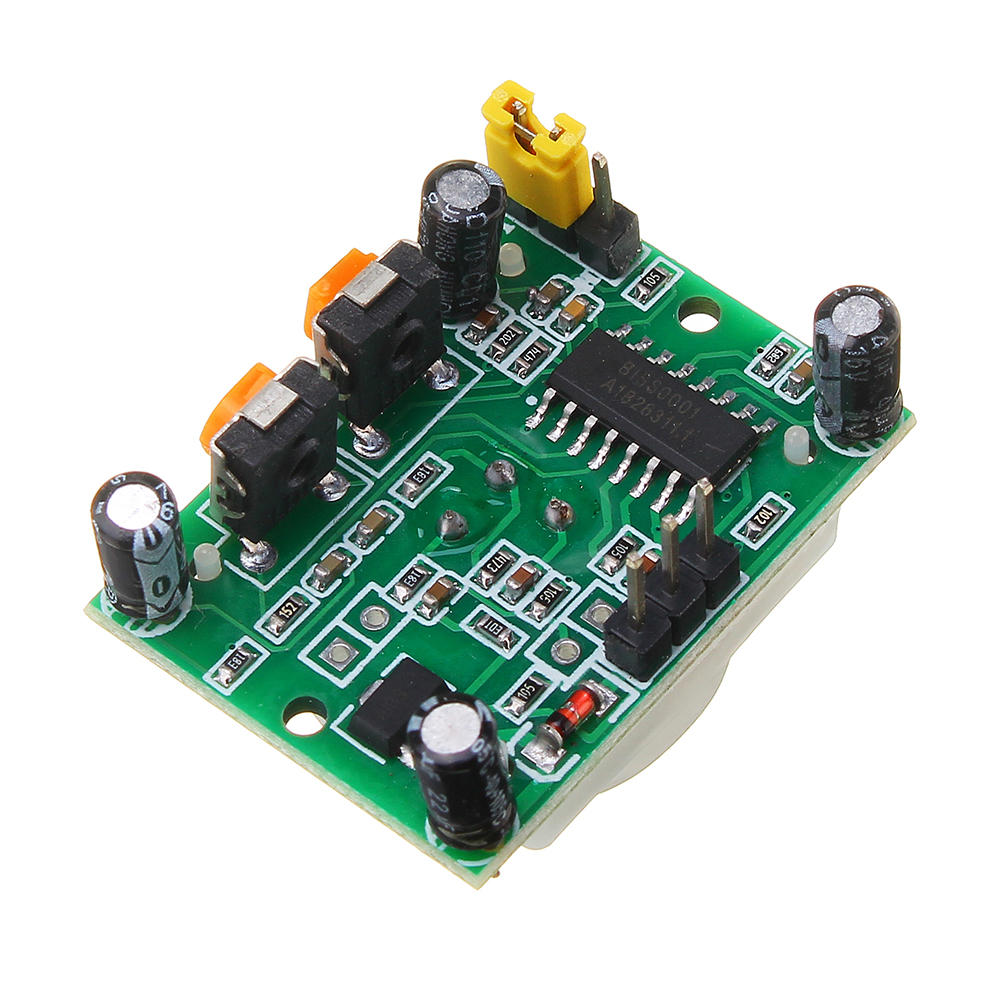

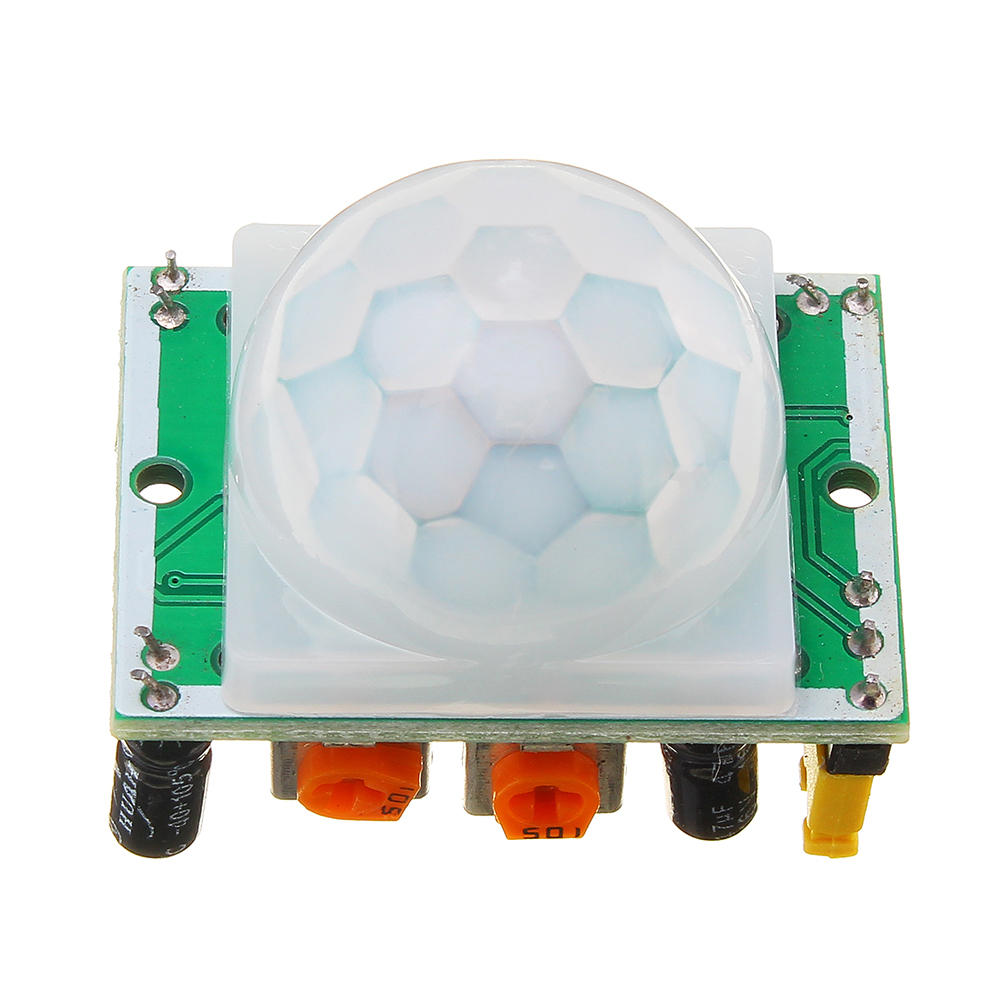

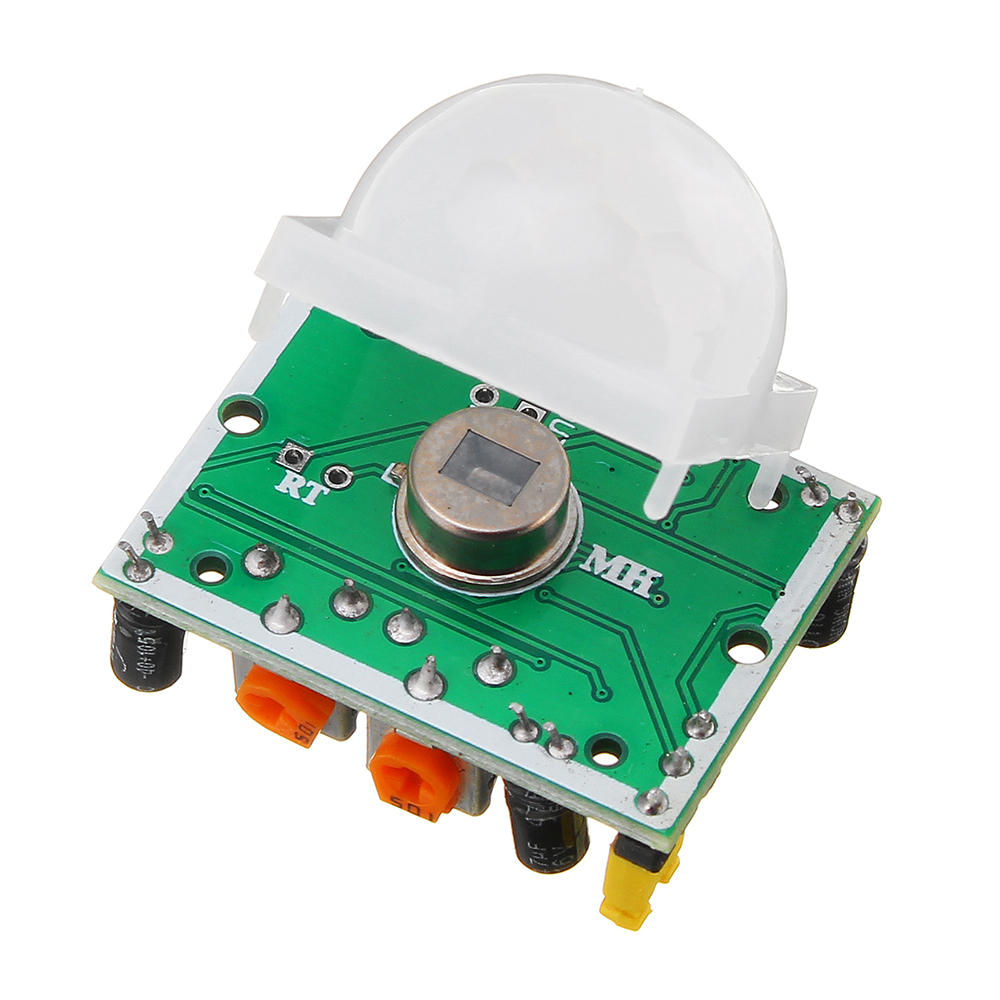

Infrared sensor with control circuit board. The sensitivity and holding time can be adjusted.



10 x IR Module
