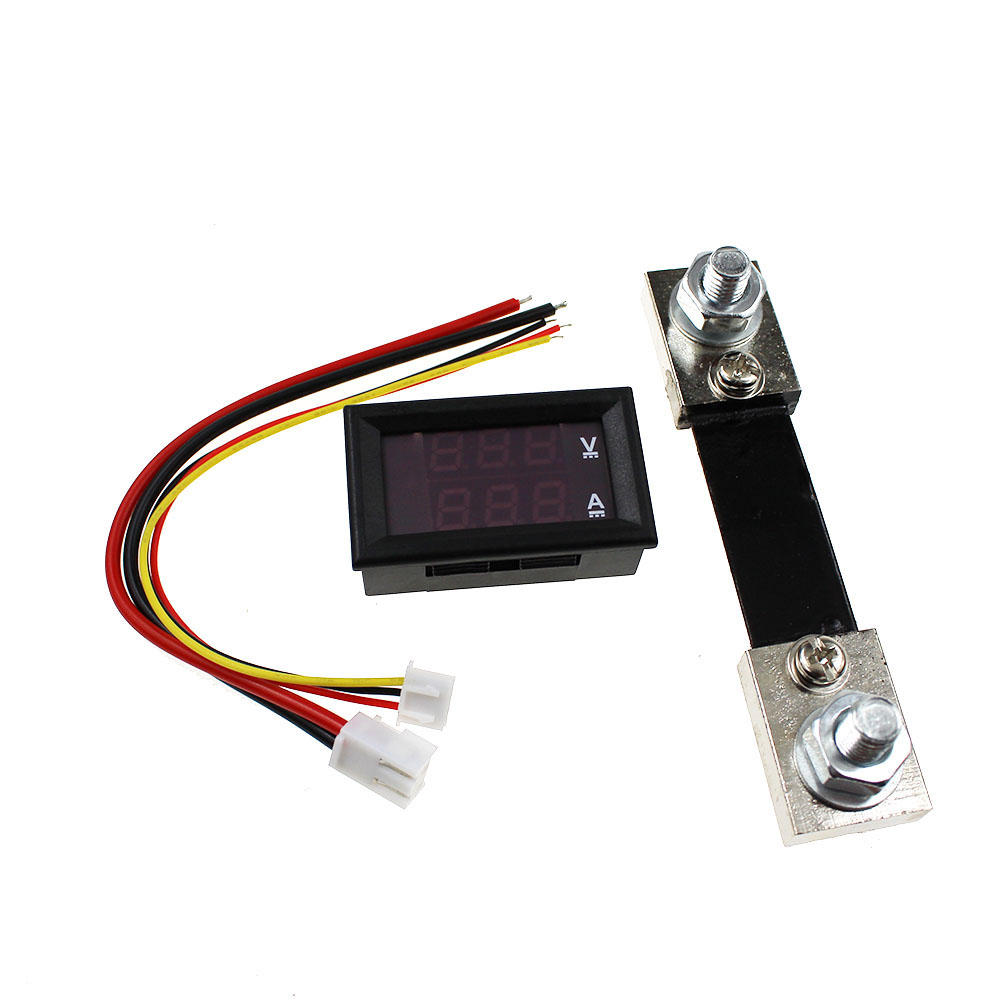

0.56inch Blue Red Dual LED Display Mini Digital Voltmeter Ammeter DC 100V 100A Panel Amp Volt Voltage Current Meter Tester COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Measure voltage: DC 0 ~ 100V

Measure current :100A (require external shunt)

Operating current: <20mA

Display color: Red and Blue (two-color display)

Measure accuracy: 1% (± 1 digit)

Operating Humidity: 10 to 80% (non-condensing)

Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

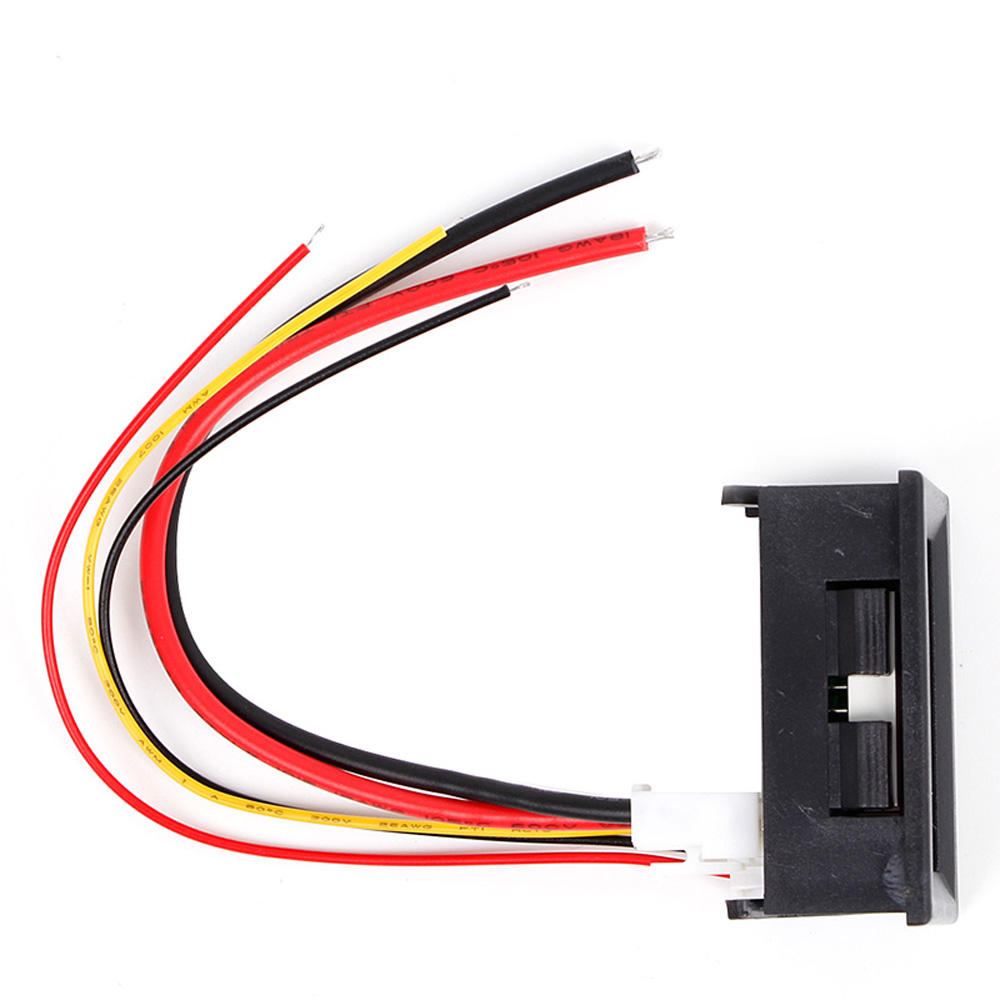

Wiring:

Black line (thin): vacant or buck circuit (module) negative

Black line (thick): COM, common measuring

Yellow line (thick): IN+, current input+





The ammeter can only be connected to the negative of the device under test

When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits

It is unsuitable to use this meter to test current less than 10A .

​Package included:

1 x Digital Voltmeter Ammeter Meter

1 x Cable
